UL Articulated Finger Test Probe
Model#BND-UL100
Introduction:

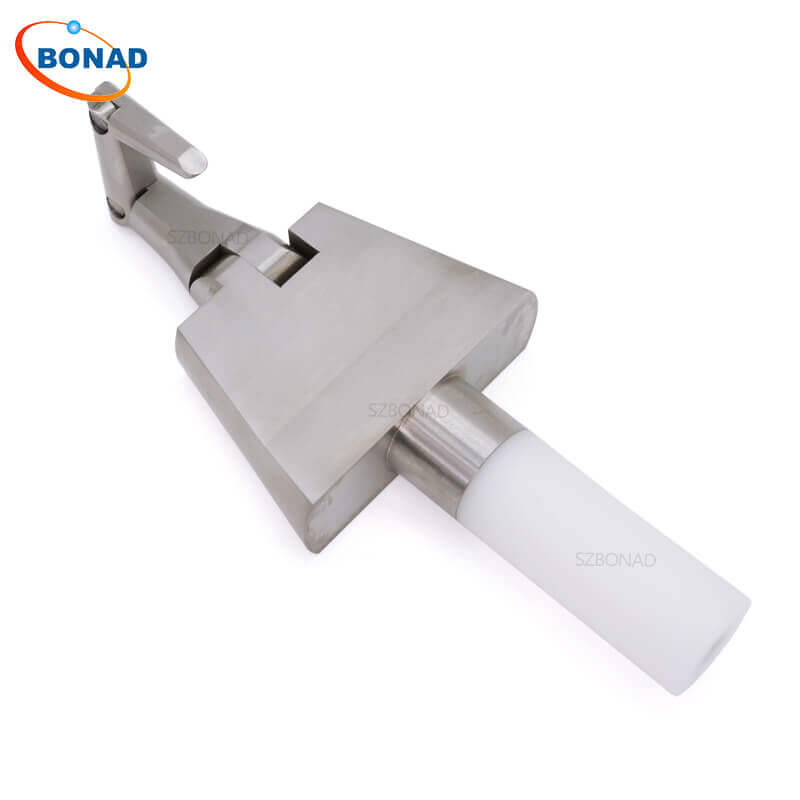

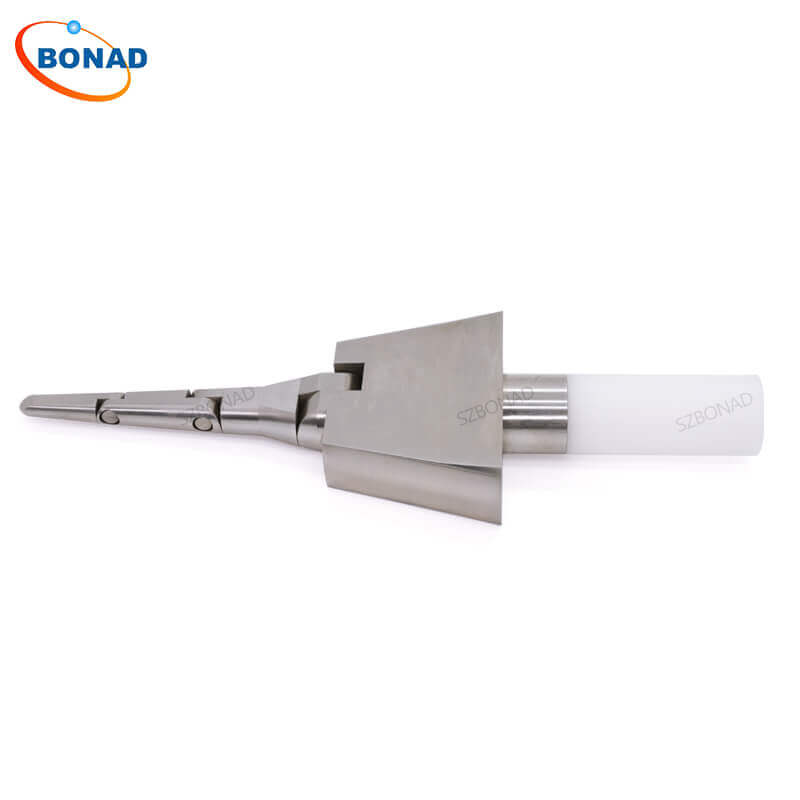

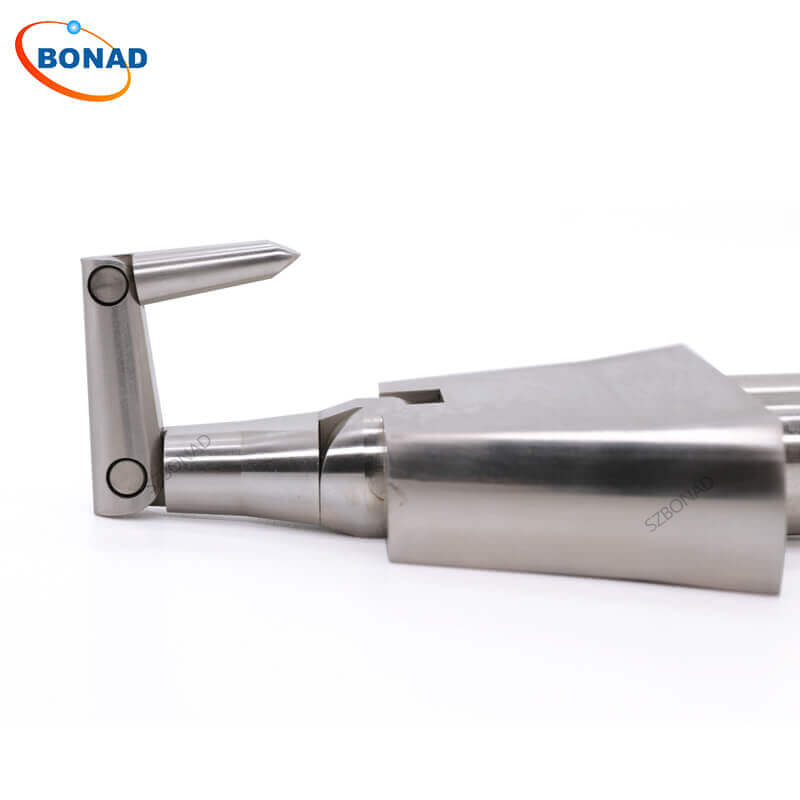

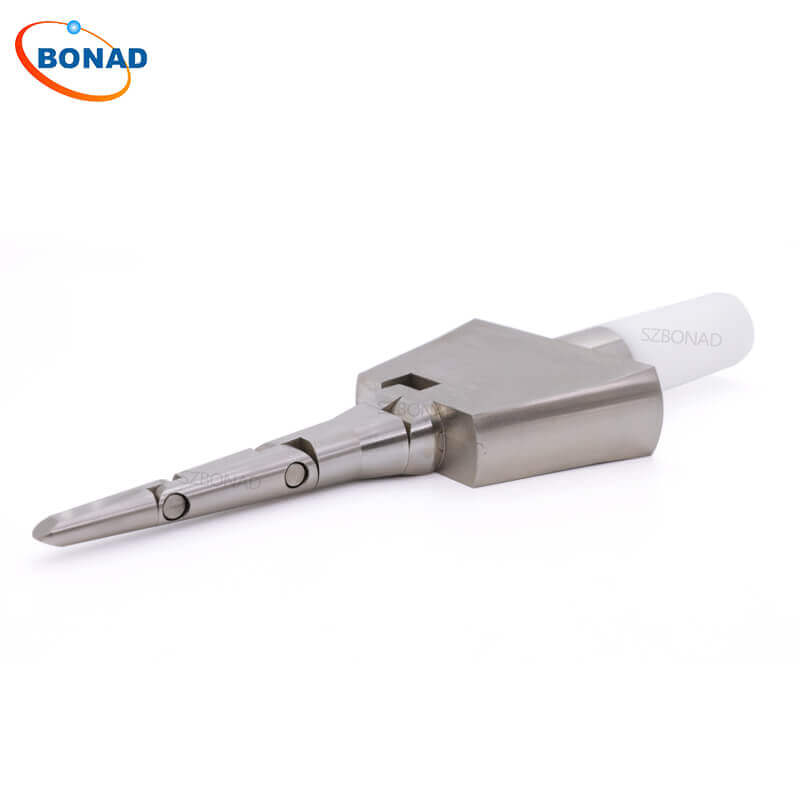

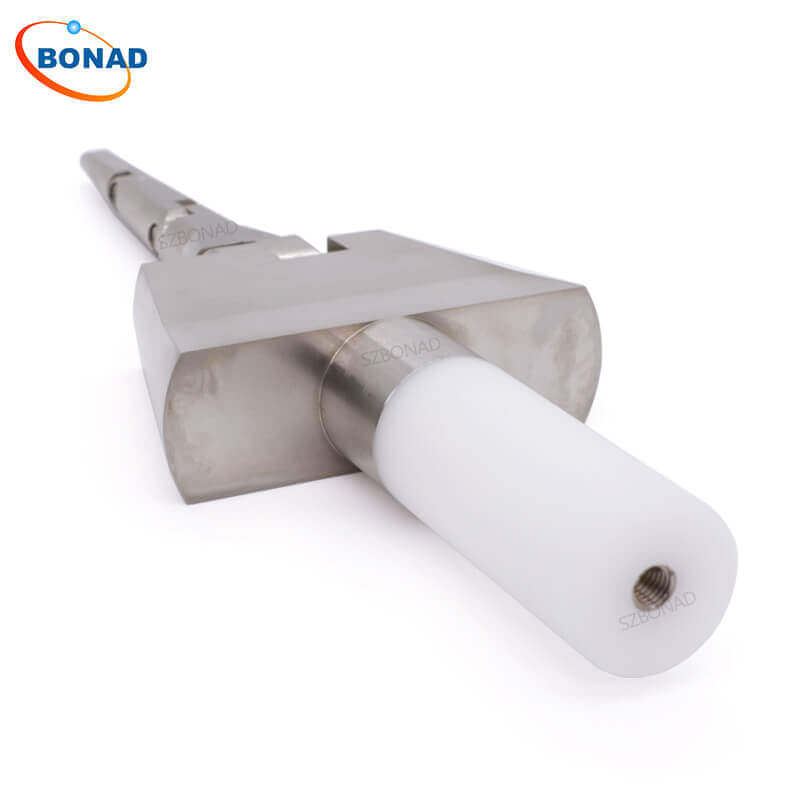

1.BND-UL100 is the “UL” test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. The joint parts and also the stop surface are made of high-grade steel. The handle consists of. The links can be positioned at a right angle. 4 mm receptacle is integrated at the handle, which is conductively connected to the finger probe.
2,Mainly used for the inspection to prevent the body touch dangerous live parts, heating or hot parts, mechanical components, as well as inspection of solid foreign bodies into the equipment. It is necessary for protection against electric shock test of household and similar electrical appliances
Standard:
UL507,UL982
Application:
electronic products and electrical appliances.
Detailed Information:
| Model Number | BND-PA100 |
| Materials | Stainless Steel+ polyamide. |
| Test finger length | 234mm |
| Knurled length | 30/30/40mm |
| Reference | UL507,UL982,UL1278,UL1062,UL1310,UL474,UL60065 |
