5.6mm Small Test Finger Probe 19 of IEC61032
Small Test Finger Probe 19 for Children
Model: BND-19
Children Test Finger / Children Test Finger19
1,According to : IEC61032-1997 Fig12 and Fig.13 / EN71 ASTM F963 and UL
2,Children Test Finger 19 Probe is the necessary appliance to prevent electric shock for household andsimilar electrical problem
Application:
In accordance with VDE 0470 part 2 picture 13 probe 19 resp. IEC/EN 61032 with arm
extension MP-100.05D
Access probe to assess protection of children 36 months of age and younger.

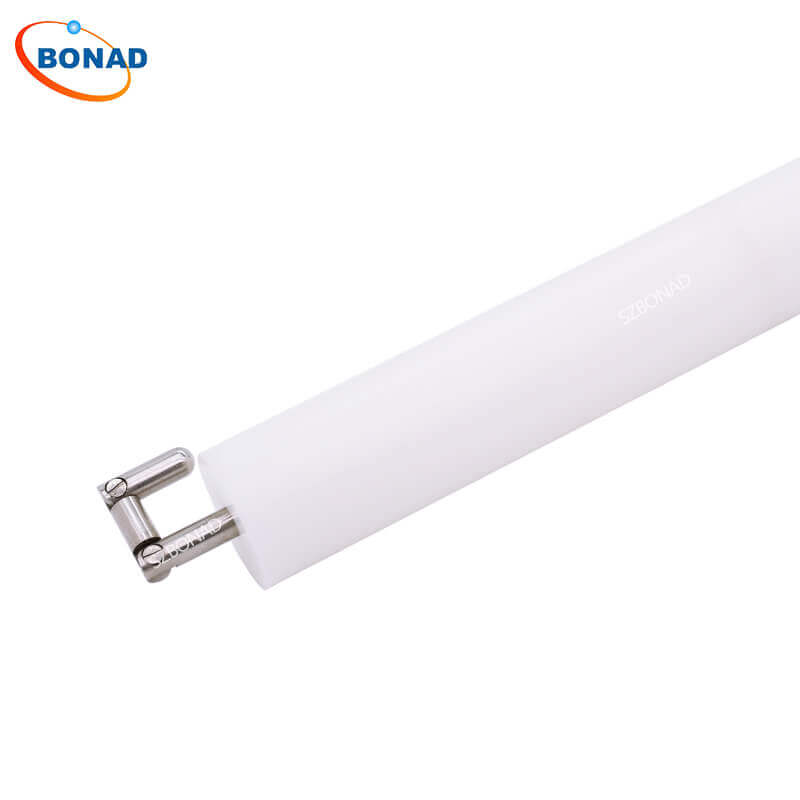

The joint parts Ø 5.6 mm are made of high-grade steel. The handle and the arm extension consist of polyamide.

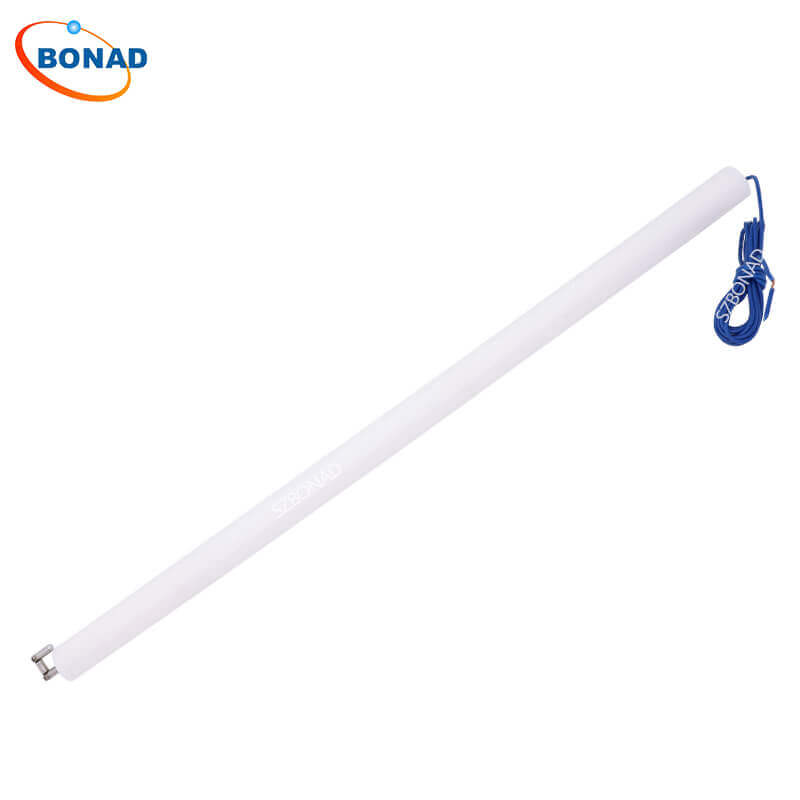

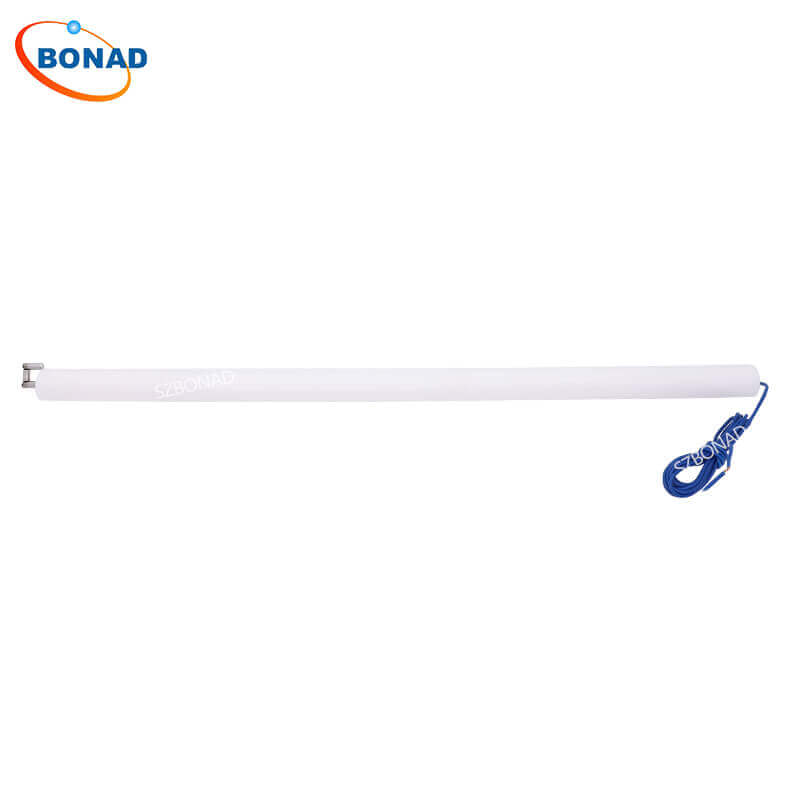

Both links can be bend at an angle of 90 degree. For contact- and continuity checks a 4 mm receptacle is integrated at the handle and at the arm extension. This is conductively connected to the finger probe. After the removal of the protection cover, the arm extension can be screwed onto the finger probe.
Note:
The arm extension must be ordered separately!
This probe is intended to simulate access to hazardous parts by children of 36 months or less.
Figure 13 – Test probe 19 (small finger probe ∅ 5,6)
Technical Parameters:
1, Knurled Finger Diameter: 5.6mm
2, Knurled Finger Length :44mm
3, Head Radius:2.8mm
4, The First Handle Diameter: 101.6mm
5, The First Handle Length:101.6mm
6, The Second Handle Diameter:25.4mm
7, The Second Handle Length:464.3mm
8, Reference Standards: IEC61032:1997 Figure 13,
– Finger: metal material
– Handle: insulating material
— lightly put and take when using, and pay attention to maintenance
