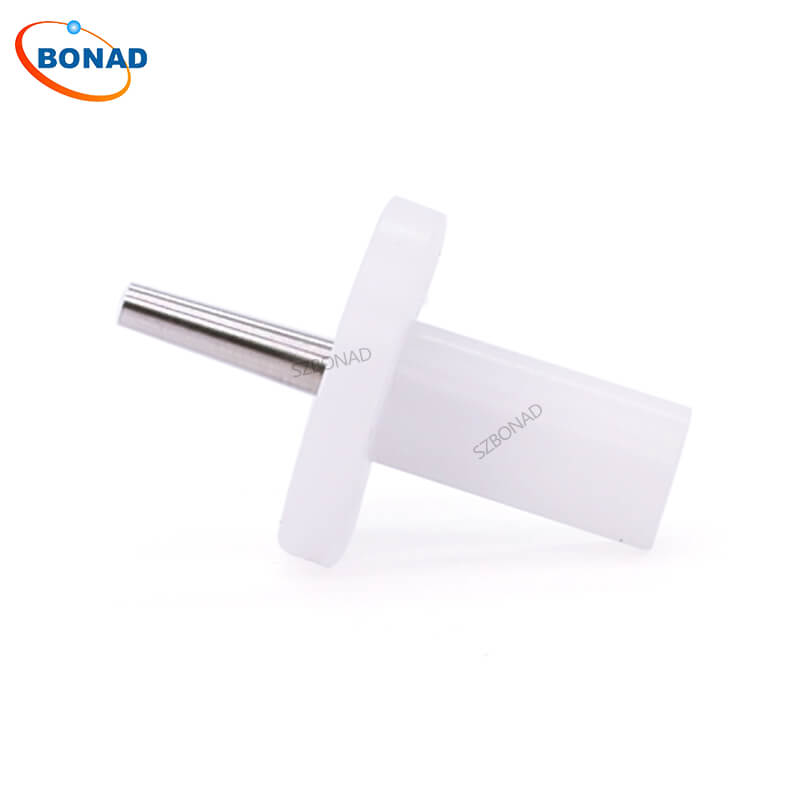

IEC 61032 Test Probe 13
IEC 61032 Test Pin 13
IEC 61032 Test Probe 13
IEC 61032 Test Pin 13

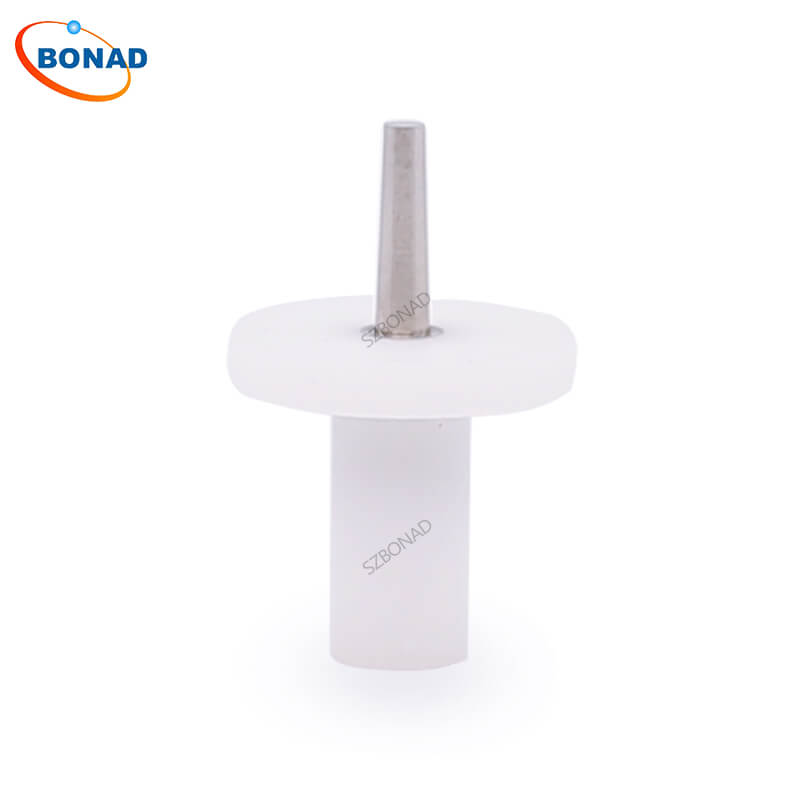

IEC 61032 Test Probe 13 – Short Test Pin

Brand: SZBONAD

Product Number: BND-13

This Test Probe Pins (Figure 9 – Test probe 13 of IEC61032) is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).

GET A QUOTE

Meets IECCSA & UL requirements Test Probe 13 of Short Test Pin – Fig. 9 of EN 61032

Standard:

  1. IEC 61032 ‘Protection of persons and equipment by enclosures – Probes for verification’ figure 9 test probe 13.
  2. IEC 60335-1 ‘Household and similar electrical appliances – Safety – Part 1: General requirements’
  3. IEC 60950-1 ‘Information technology equipment – Safety – Part 1: General requirements’ figure 2B.

Technical Parameter:

  • The probe Diameter:Head 3mm Tail 4mm
  • The probe Length:15mm
  • Dam-board Diameter:25mm
  • Dam-board Thickness:4mm

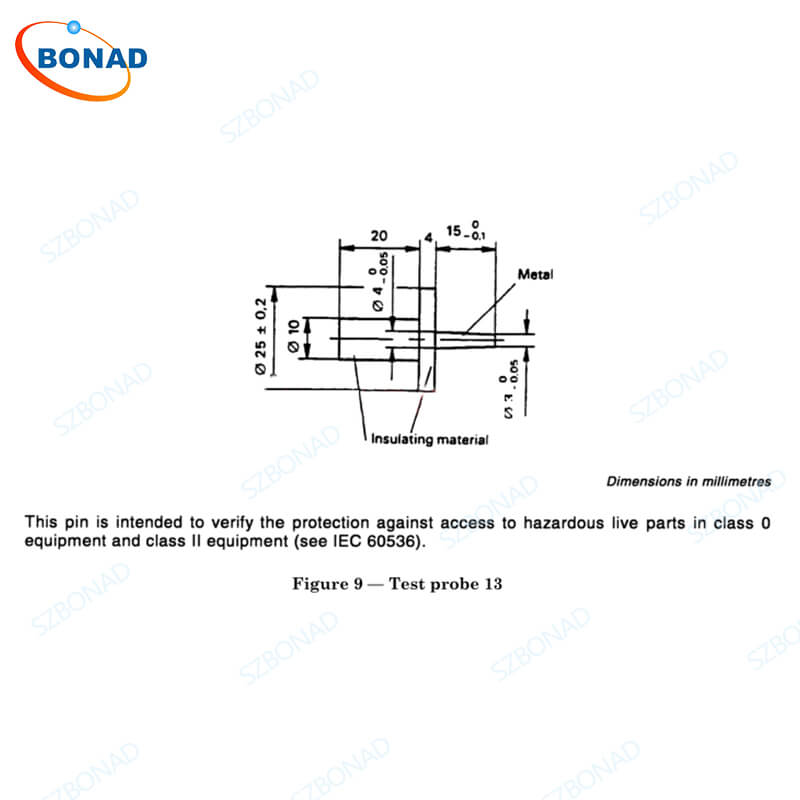

figure 9 - Test Probe 13
