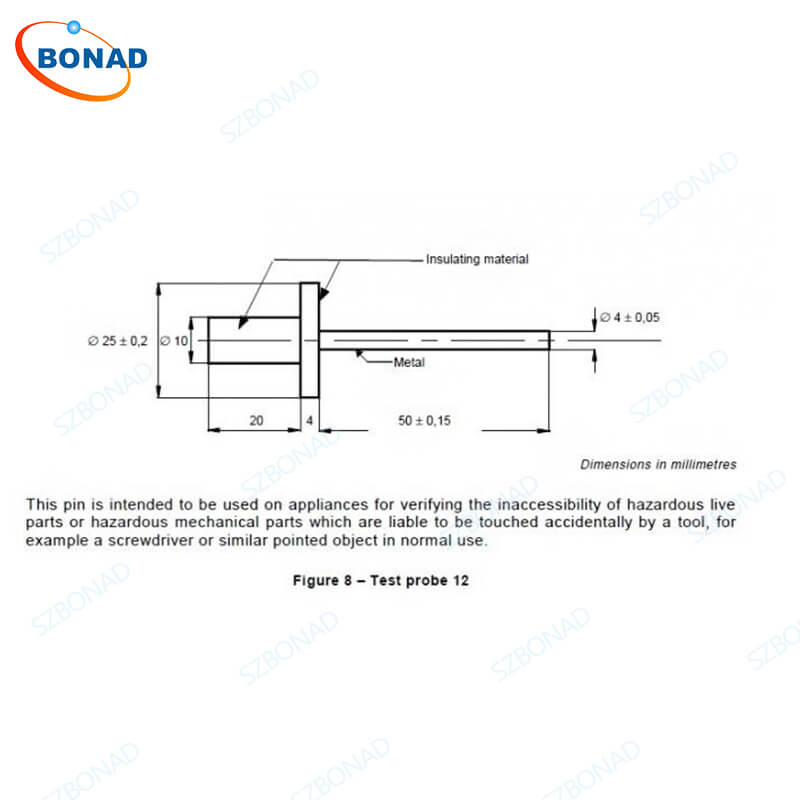

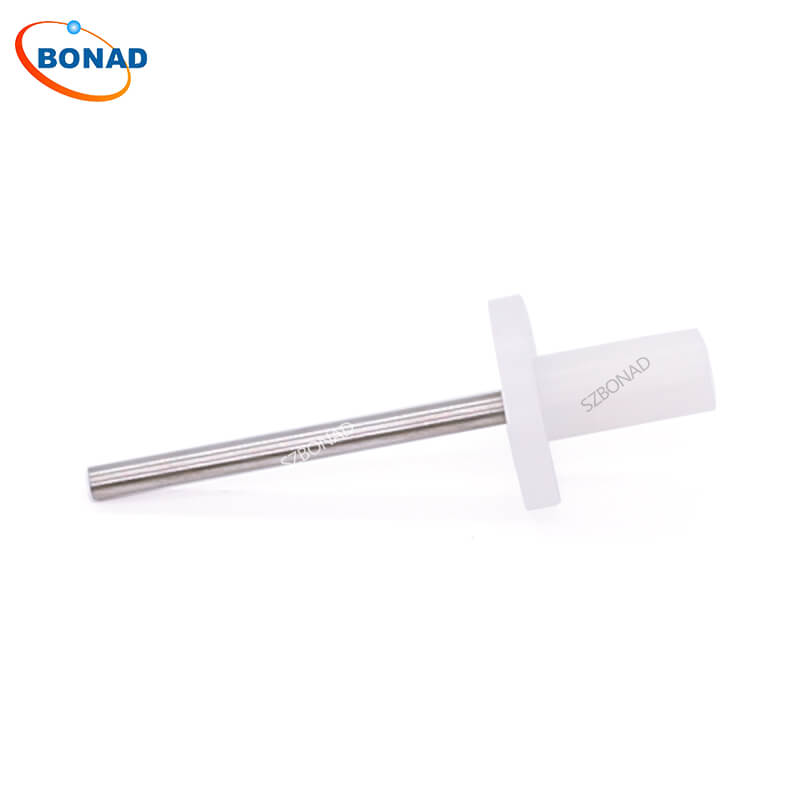

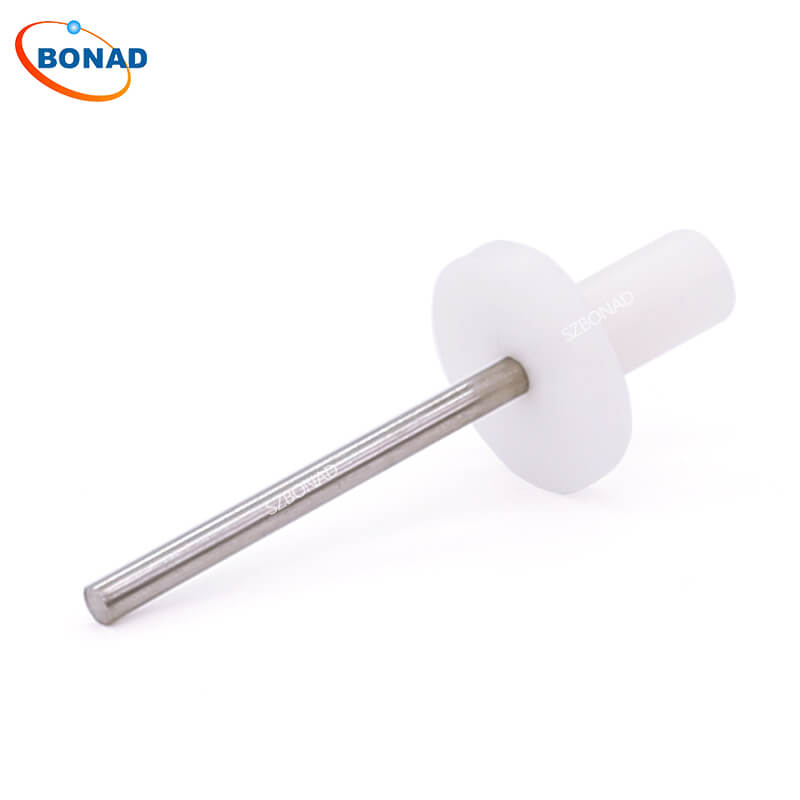

The Long Test Pin (Figure 8 – Test probe 12) of IEC 61032.
Standard:
Standard IEC61032-1997, IEC60529-2001 and UL etc.
Technical parameters:
- The probe Diameter:4mm
- The probe Length:50mm
- Dam-board Diameter:25mm
- Dam-board Thickness:4mm
Usage Notice:
- Please refer to the relevant standards for the operation.
- Please do not damage the appliance shape (such as scratching, bending, etc.).
- Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
