IEC 61032 IP1X Test Probe A
IEC 61032 IP1X Test Probe A

IEC 61032 IP1X Test Probe A

Brand: SZBONAD

Product Number: BND-A

IEC61032 IP1X Test Probe A is suitable for protection tests of various electrical equipment. Especially when evaluating the protection level of the equipment casing, the test probe A is used to simulate the back of the hand contact to check whether the equipment casing can effectively prevent external objects or the back of a person’s hand from contacting the live parts inside the equipment, thereby ensuring safe use.

GET A QUOTE

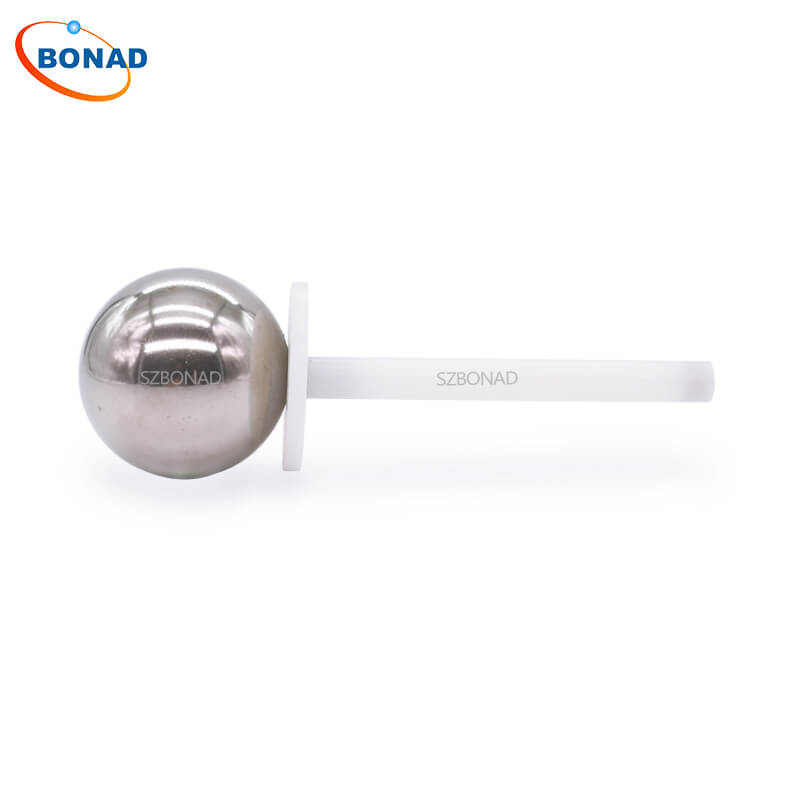

IEC 61032 IP1X Test Probe A – Spherical Test Probe A

Specification:

  1. According to: IEC61032:1997 / IEC60529:2001 and UL;
  2. Test Probe A is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical parameters:

Ball Diameter 50 mm
Baffle Plate Diameter 45 mm
Baffle Plate Thickness 45 mm
Handle Diameter 10 mm
Handle Length 100 mm

Instructions for use:

  1. The ball cannot touch live parts or approach dangerous parts.
  2. In the test requirements for preventing approach to dangerous parts, the test steel ball without thrust must be used in conjunction with a push-pull force gauge, and the steel body must apply a thrust of 50±5N (30±3N) to the protective layer.

figure 1 - test probe A
