IEC 60529 IP4X 1mm test rod D with 1N
Technical Parameters:
| Model | Item name | Standatds | Parameters | Pictures: |
| BND-D | test rod/
test probe D, 1.0 mm diameter |
IEC61032
IEC60335 |
Test Probe Length:100mm
Test Probe Diameter:1.0mm/2.5mm Dam-sphere Diameter:35mm Handle Diameter:10mm Handle Length:100mm |
 |
| BND-DF | test rod/
test probe D with 1N force |
Test Probe Length:100mm
Test Probe Diameter:1.0mm/2.5mm Dam-sphere Diameter:35mm Handle Diameter:10mm Handle Length:100mm Force:1N |
 |
Tests for protection against solid foreign objects indicated by the first characteristic numeral specified in IEC60529.
| First No. | Addit.
Letter |
Access Probe | test force |
| 4,5,6 | D |  |
1N±10% |
Acceptance condition:

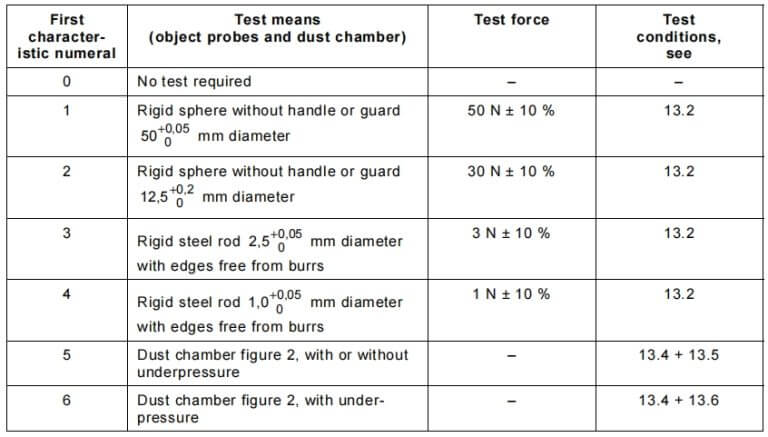

Table 7 – Test means for the tests for protection against solid foreign objects
Acceptance conditions for first characteristic numerals 3, 4:
The protection is satisfactory if the full diameter of the probe specified in table 7 does not pass through any opening.
NOTE:
For the first characteristic numerals 3 and 4 the probes specified in table 7 are intended to simulate foreign objects which may be spherical. Where an enclosure has an indirect or tortuous entry path and there is any doubt about ingress of a spherical obiect capable of motion, it may be necessary to examine drawinas or to provide special access for the object probe to be applied with the specified force to the opening(s) where ingress has to be checked.

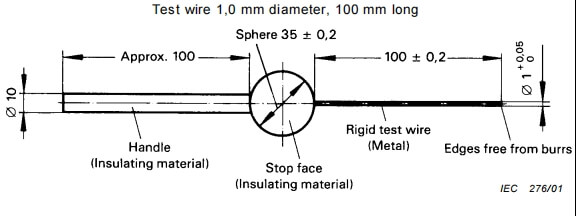

Pictures of test pin D:

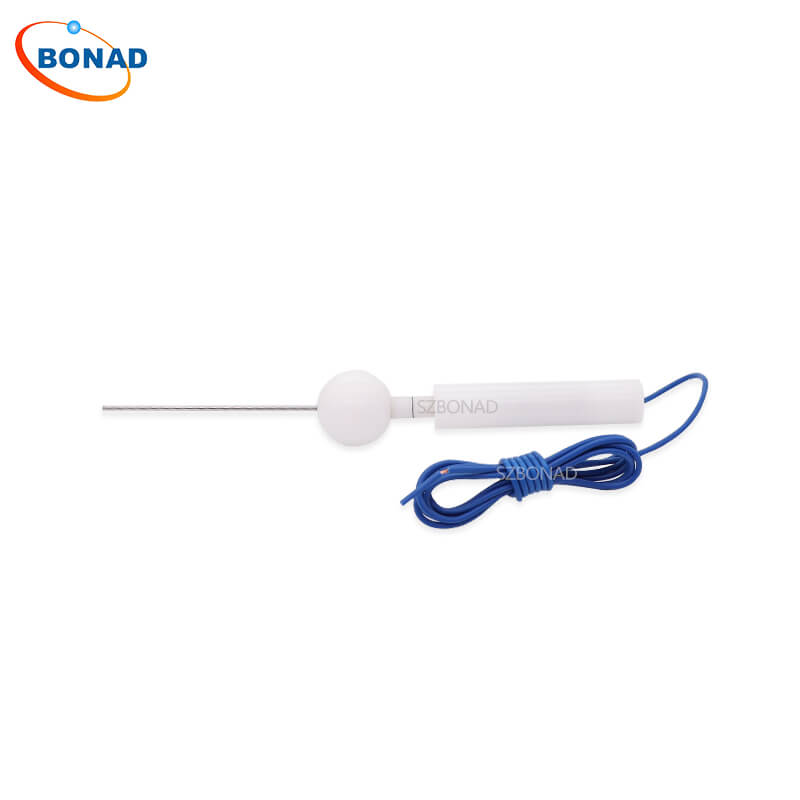

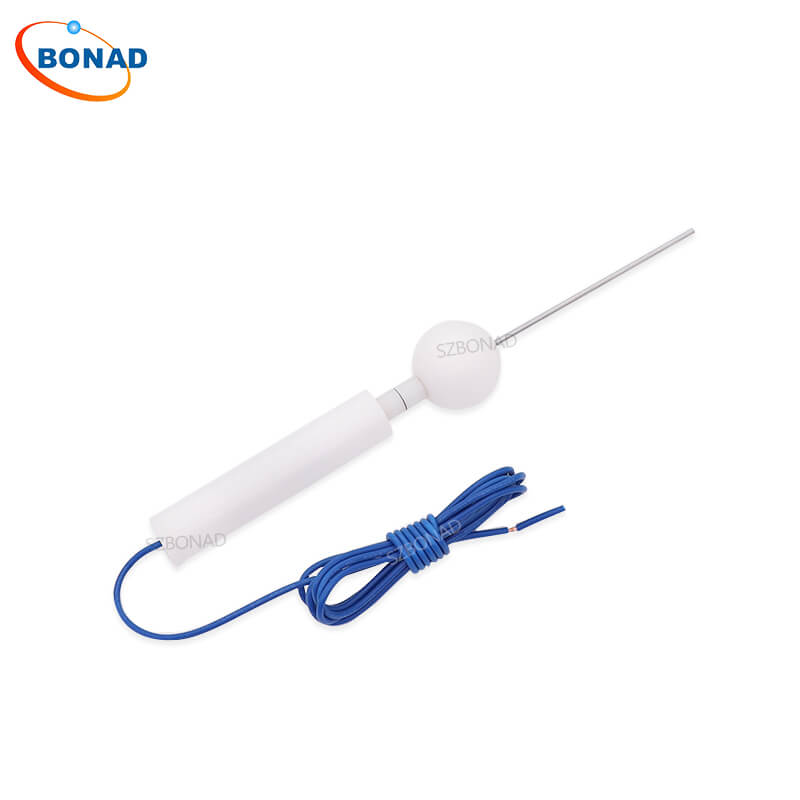

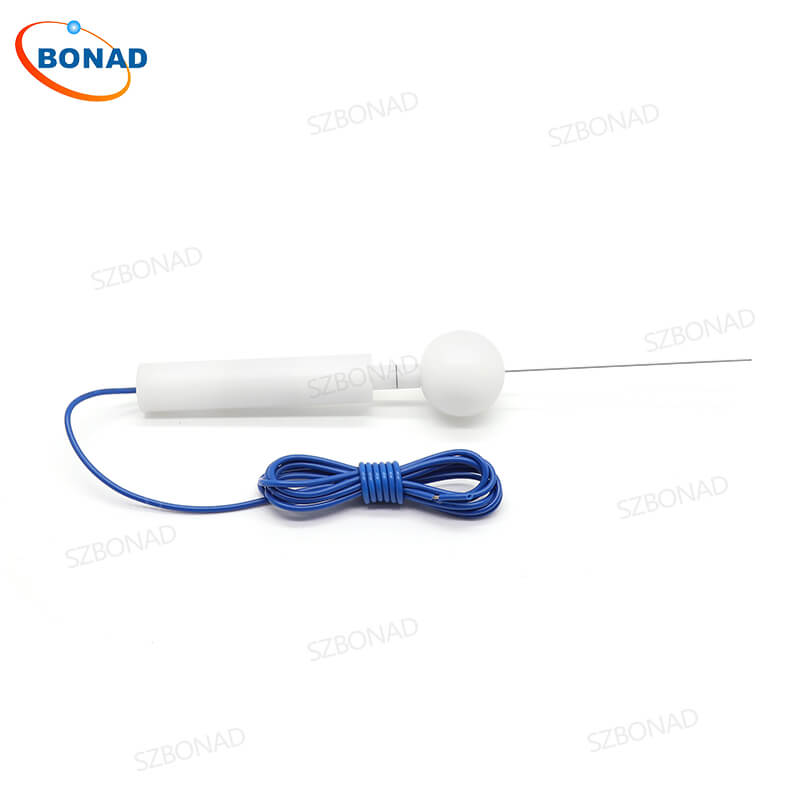

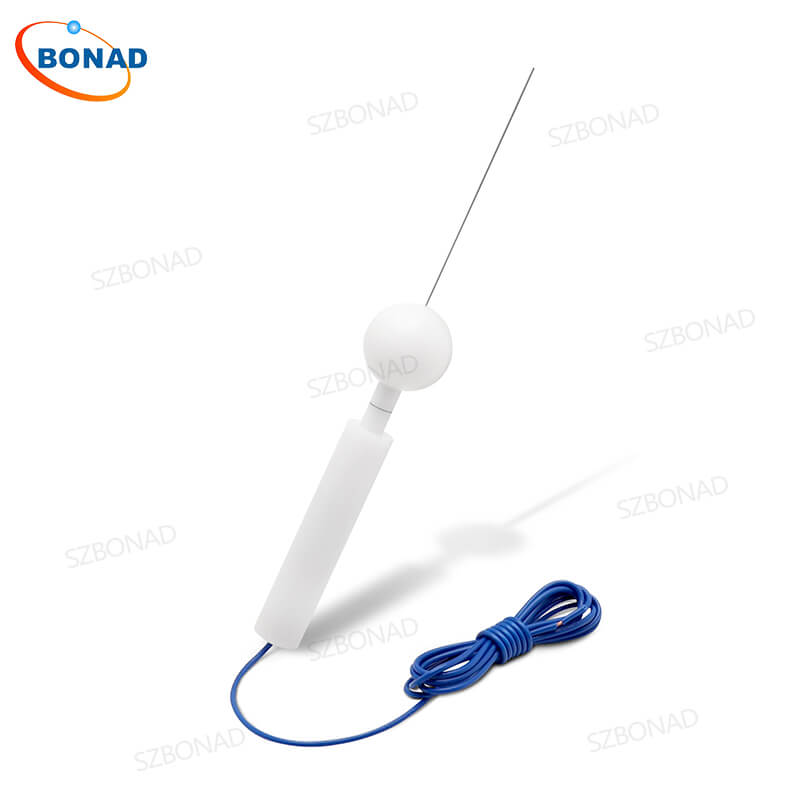

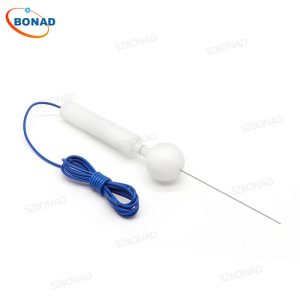

The above picture is Test probe D with 1 N force

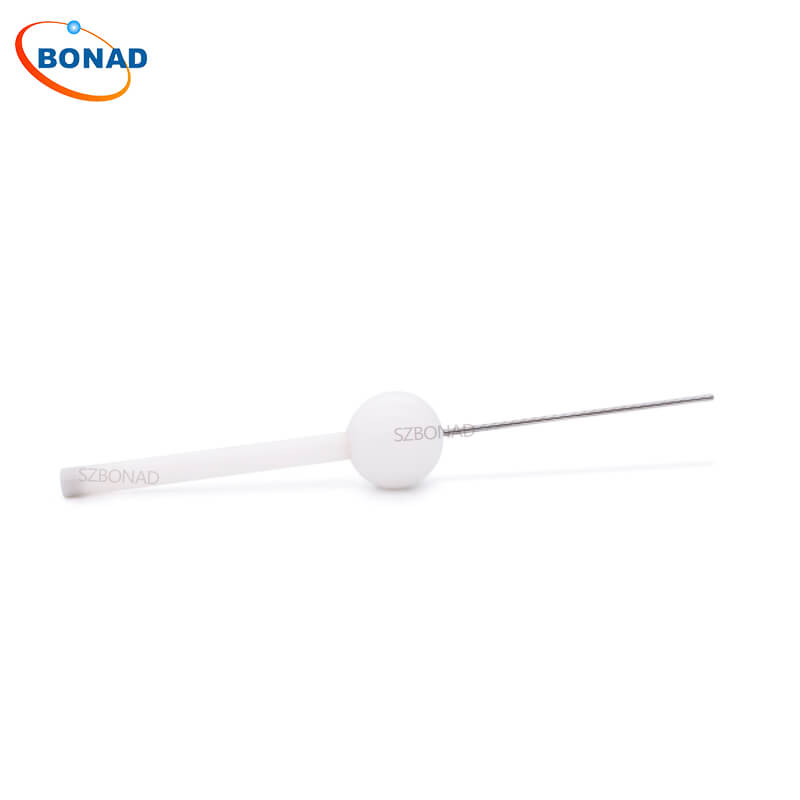

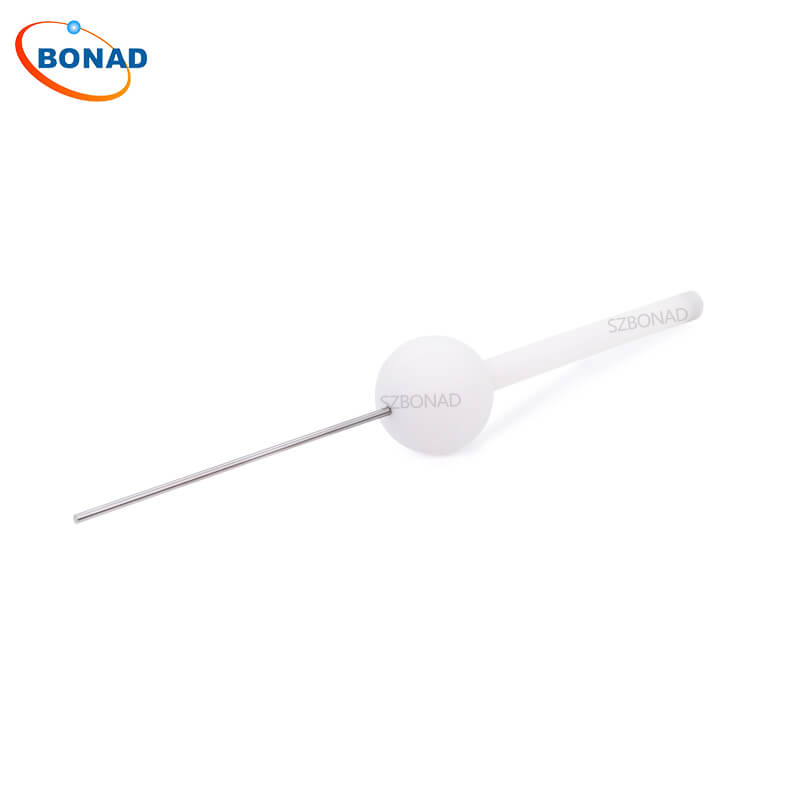

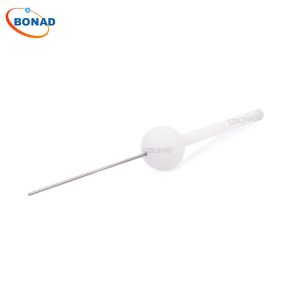

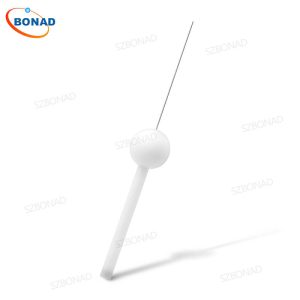

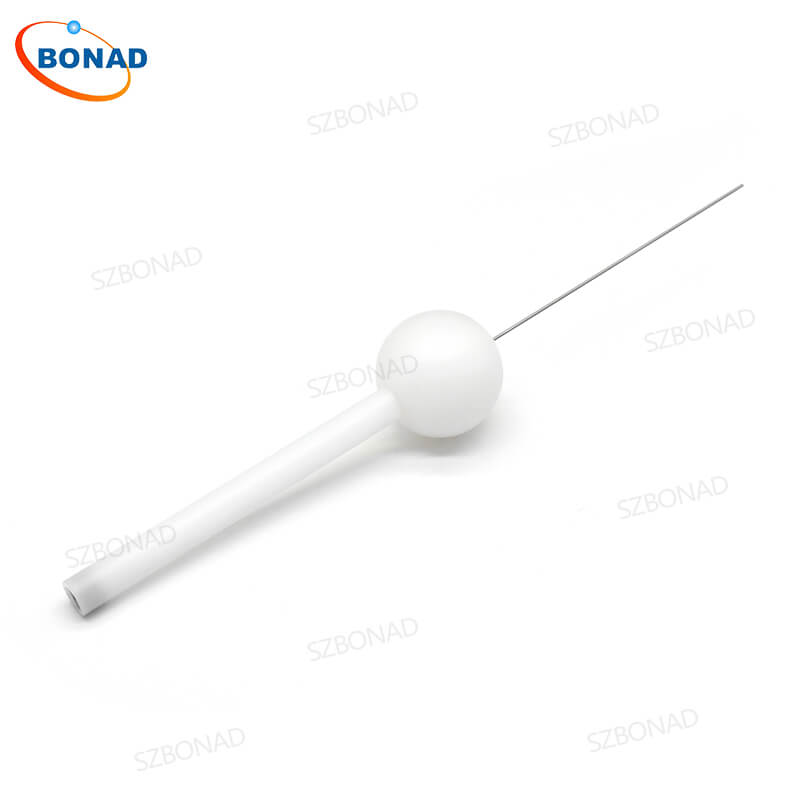

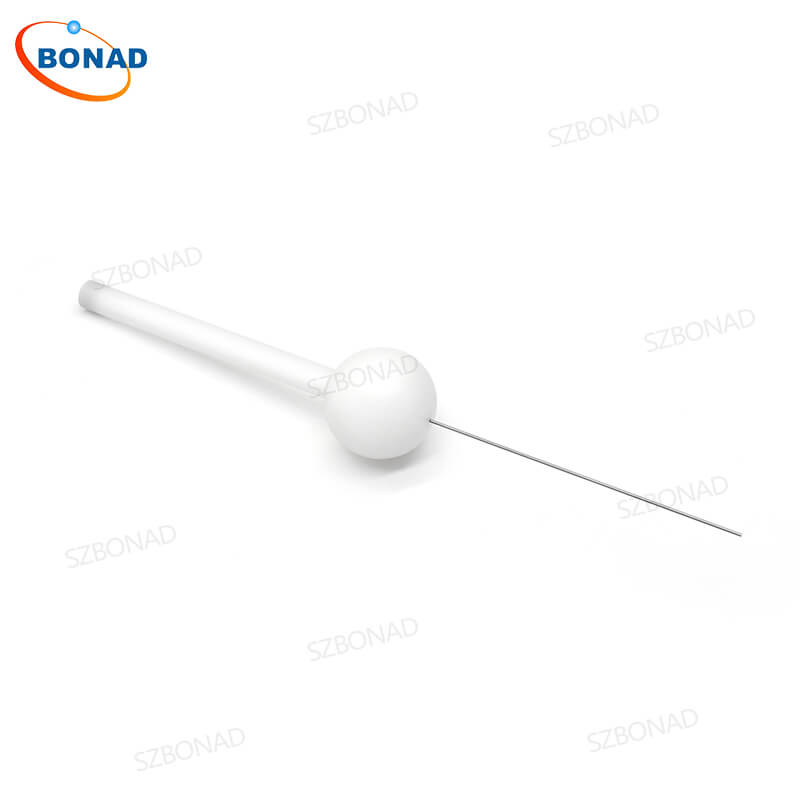

the above picutre is test probe D without force
FAQ:
How is IP4X Testing Completed?
To test for IP4X, a test wire with a diameter of 1mm is used to probe the enclosure for any openings or gaps that could allow solid objects to enter. The wire is applied with a force of 1N to any opening or gap that is likely to permit the entry of a solid object.
The test is performed on all accessible surfaces of the enclosure, including the sides, top, bottom, and any doors or panels. The test wire is applied to any joints, seams, or other areas where openings or gaps are likely to occur.
If the test wire does not enter the enclosure or only enters to a depth of less than 1mm, the enclosure can be rated as IP4X. If the test wire enters to a depth greater than 1mm, the enclosure cannot be rated as IP4X.
In addition to the test wire, the enclosure is also examined visually to ensure that there are no openings or gaps greater than 1mm in any direction. This inspection is typically performed with the naked eye under normal lighting conditions.
