IEC60065 IEC60335 Creepage Distance Test Card / Feeler gauge
What Are Creepage Distance Gauges?
Creepage distance gauges measure the shortest path between two conductive parts or between a conductive part and the bounding surface of the equipment. This measurement is taken along the surface of the insulation to ensure that it meets safety standards.
Specifications
Our creepage distance test cards come in various sizes to meet different testing requirements:
- 8 size-PD8
- 10-size-PD10
- 27 size-PD27
- 30 size PD-30
These test cards comply with the following standards:
- IEC60335.1-2006
- IEC60601.0-2005
- IEC60065-2005
- IEC600598.1-2008
Types Available:
Our creepage distance test cards are available in both straight and bend types, depending on the specific testing conditions required.
Applications:
These gauges are primarily used for testing creepage distance and clearance in household electrical products and other electronic accessories. They ensure that these products meet safety standards, making them reliable for consumer use.

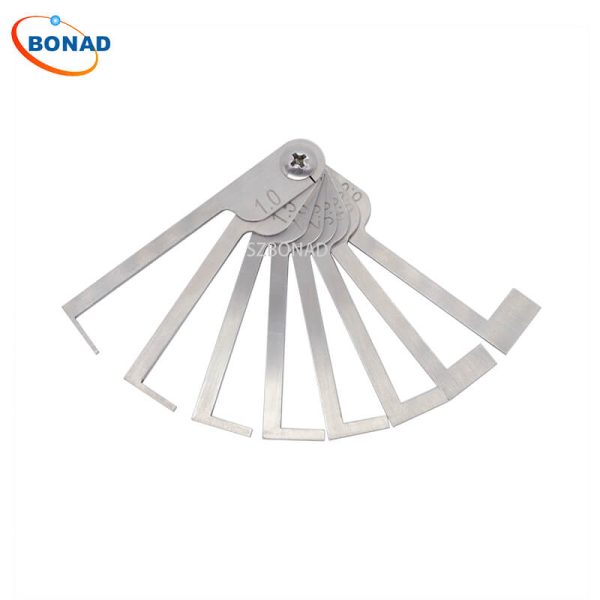

1. BND-PD8:1.00.5、2.0、2.5、3.0、4.0、5.0.6.08.0mm

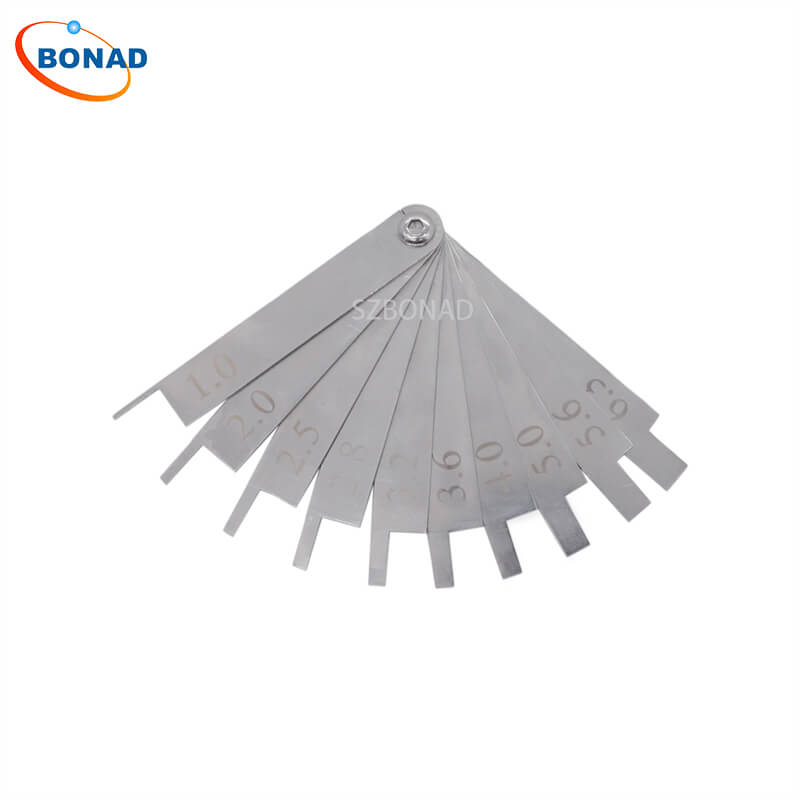

2. BND-PD10:1.0,2.0,2.5,2.8,3.2,3.6,4.0,5.0,5.6,6.3mm
3. BND-PD27:1.0、1.1、1.2、1.3、1.4、1.5、1.6、1.7、
1.8、1.9、2.0、2.5、3.0、4.04.5、5.0、5.5、6.0、6.5、7.0、7.5、8.0、8.5、9.0、10.0mm

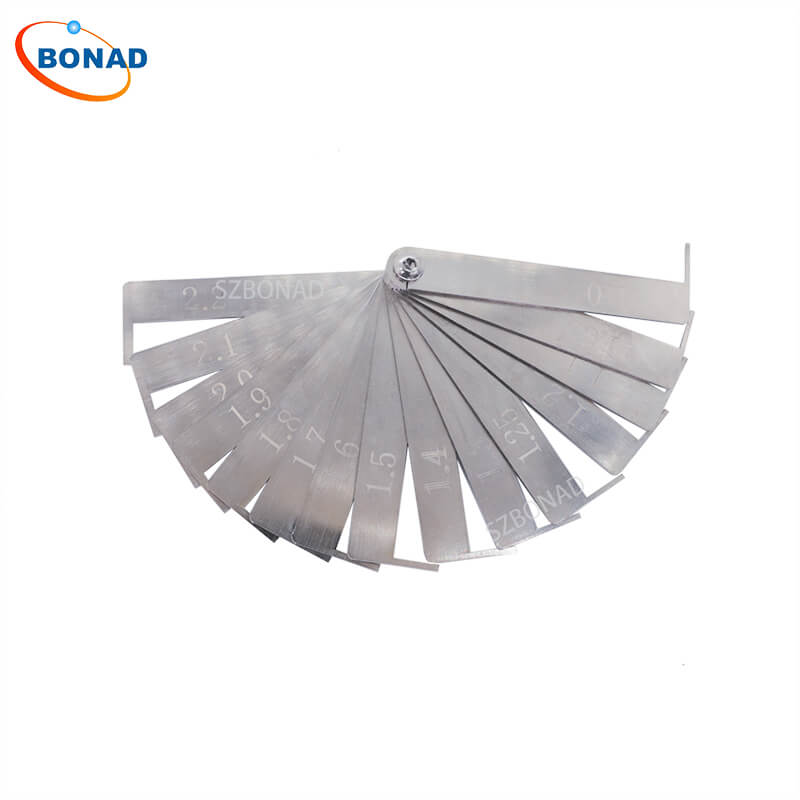

4. BND-PD30:1.0,1.05,1.1,1.2,1.25,1.3,1.4,1.5,1.6,1.7,1.8,1.9,2.0,2.1,2.2,2.4,2.5,2.8,3.2,3.6,4.0,4.2,4.5,5.0,5.6,6.3,7.1,8.0,9.0,10mm
