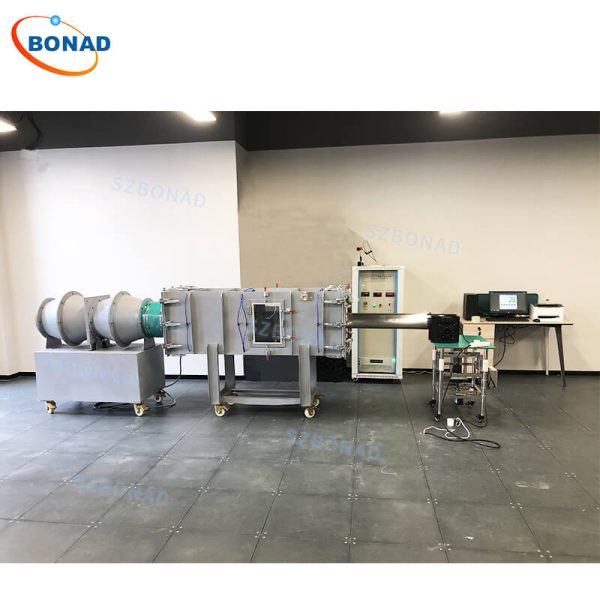

IEC 61591 Air Flow Measuring and Testing Device – BONAD 3000 m³/ Air Flow Test Equipment
This device employs a computer-automated measurement and control system to generate precise relationship curves for static pressure versus air volume, air volume versus speed, current, power, and efficiency. The dual-state testing capability (suction and discharge) ensures convenience, stability, reliability, and excellent reproducibility of results.
Principle
The working principle involves simulating the actual operating conditions of the test machine within a wind tunnel. The auxiliary fan’s outlet pressure is adjusted to match protocol requirements. The pressure difference across the nozzle in the wind tunnel is then measured to calculate the corresponding wind speed using standard formulas. This wind speed is multiplied by the nozzle area and relevant flow coefficients to determine the air volume.
Applicable Products
This sophisticated measuring device can be utilized for a wide range of products including:
- Range hoods
- Ventilation fans
- Bathroom heaters
- Heaters
- Heat dissipation fans
- Axial fans
- Air purifiers
Performance and Features
- Multi-Nozzle Wind Chamber Structure: The device features a multi-nozzle wind chamber design allowing for selection of the appropriate nozzle based on the measured flow rate. This enables one device to measure a wide range of flow rates.
- Dual Testing Capability: Suitable for both air outlet and air intake tests.
- Auxiliary Fan Integration: Equipped with an auxiliary fan to measure full-range performance curves from zero flow to zero static pressure.
- Automated Testing System: The computer and peripheral equipment facilitate automatic testing, calculation, data output, and graphical display of results. The user-friendly human-computer interaction ensures high precision while saving time and effort.
- Comprehensive Test Items:
- P-Q characteristic curve (flow rate vs static pressure)
- Q-η characteristic 1 curve (flow rate vs total pressure efficiency)
- Smoke exhaust resistance curve (working air volume vs pressure)
- Q-η characteristic 2 (flow rate vs flow resistance efficiency)
- Q-η characteristic 3 (flow rate vs energy consumption efficiency)
- Flow resistance tests
- Synchronous measurement of speed, current, and power of the test object
Technical parameters:
| Measuring range of air flow | (0.2～50 m³) / min，or (12～3000 m³) / h |
| Static pressure | 0～2500Pa ±0.2% Pa |
| Differential pressure | 0～2500Pa ±0.2% Pa |
| Sample power supply | AC 0～300V ±0.5% ,AC 0～5A ±0.5%, 0～1000W ±0.5% |
| Speed measurement range | 0～5000 RPM ±5RPM , digital display |
| Air temperature | 0～50℃, ±0.5℃ |
| Air humidity | 5～99％ , ±5％ |
| Atmospheric pressure | 94000～106000 Pa, ± 200 Pa |
| Measurement item | Maximum air volume，Maximum static pressure，Total pressure efficiency(at 7m3/min)，Max total pressure efficiency，Fluid Dynamic Efficiency(FDE), Energy Efficiency Index（EEI） |
| Test object | Range hood，Fan, Cooling fan, Axial flow fan, Air purifier |
| According to standard | IEC61591:2020, GB/T17713-2022, ISO5801 ,GB/T1236, GB/T14806 |
| Power supply | AC380V，50Hz，5KVA |
