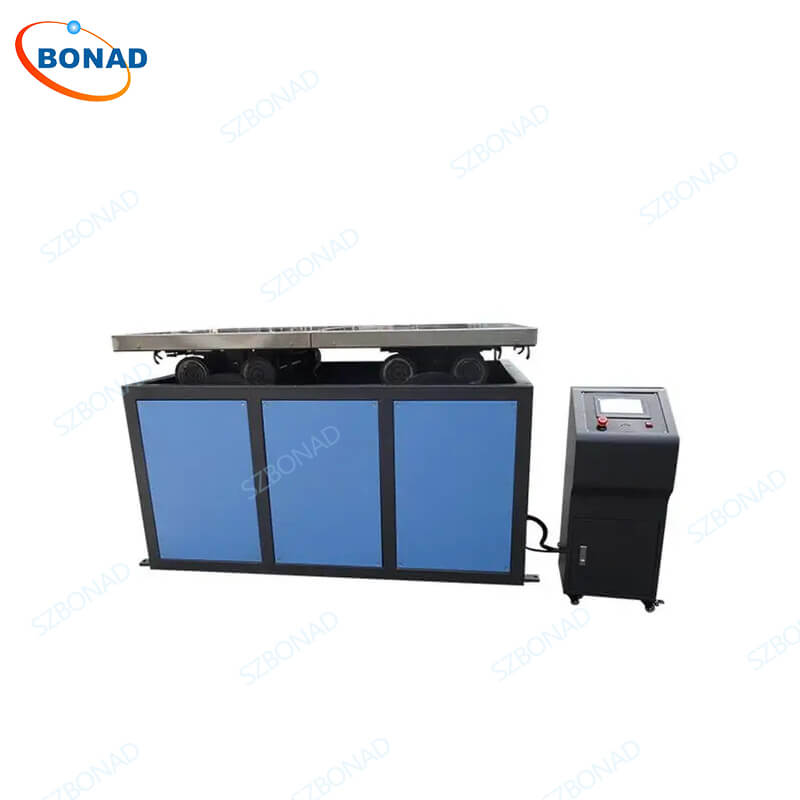

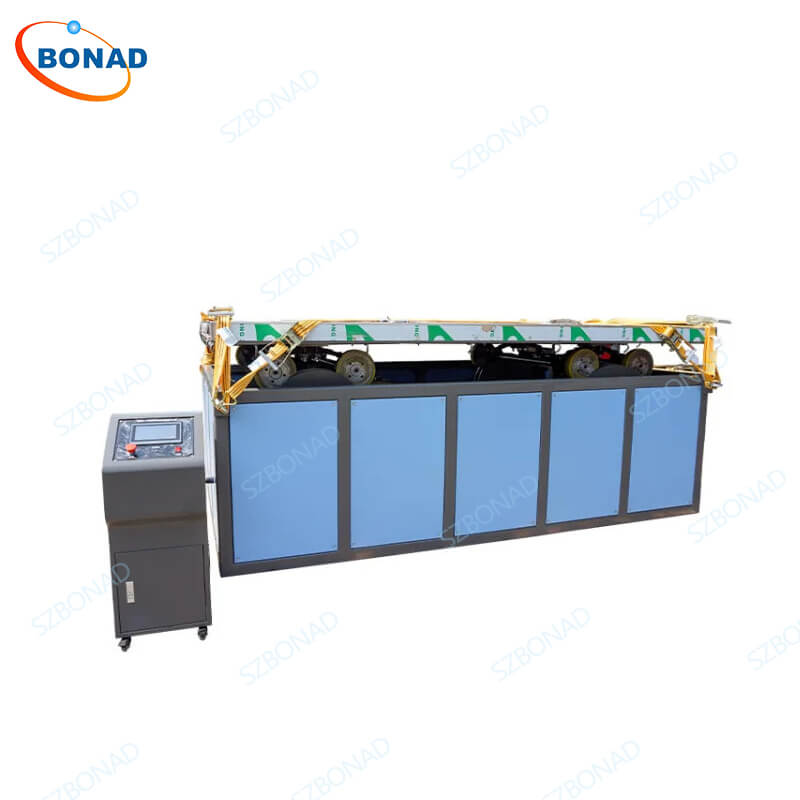

Vibration Table for Simulating Level 3 and 4 Road Bumps – BONAD Simulated Transport Vibration Test Bench
Application:
This advanced vibration table is essential for accelerated simulation tests of truck-transported products. It evaluates whether products can withstand expected transportation vibrations by increasing test values to shorten simulation times while maintaining statistical accuracy in mimicking cumulative fatigue damage typical in automotive environments.
Features:
Our vibration table replicates highway driving conditions within a lab setting by using a frequency division method to simulate broadband random vibrations. Each frequency division includes a primary natural frequency that aligns with the power spectrum requirements. The transport platform’s vibration parameters match actual road spectrums, ensuring test bench rotation time mirrors real-world durations.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-RBVT |
| Maximum Load | 100 kg (Customizable to 200 kg, 500 kg, 1000 kg, 2000 kg, etc.) |
| Testing Table Size | 1700 x 1200 mm (Customizable based on customer product dimensions) |
| Vibration Waveform | Wideband Random Vibration |
| Instantaneous Probability Density Function | Approximately Normal Distribution |
| Simulated Vehicle Speed | 20-40 km/h |
| Reinforced Vehicle Speed | 1:01 |
| Total Acceleration RMS Value (m/s²) | 3.2 |
| Center of Gravity Height | <700 mm |
| Power Supply and Consumption | AC 380V, 15 KVA |
