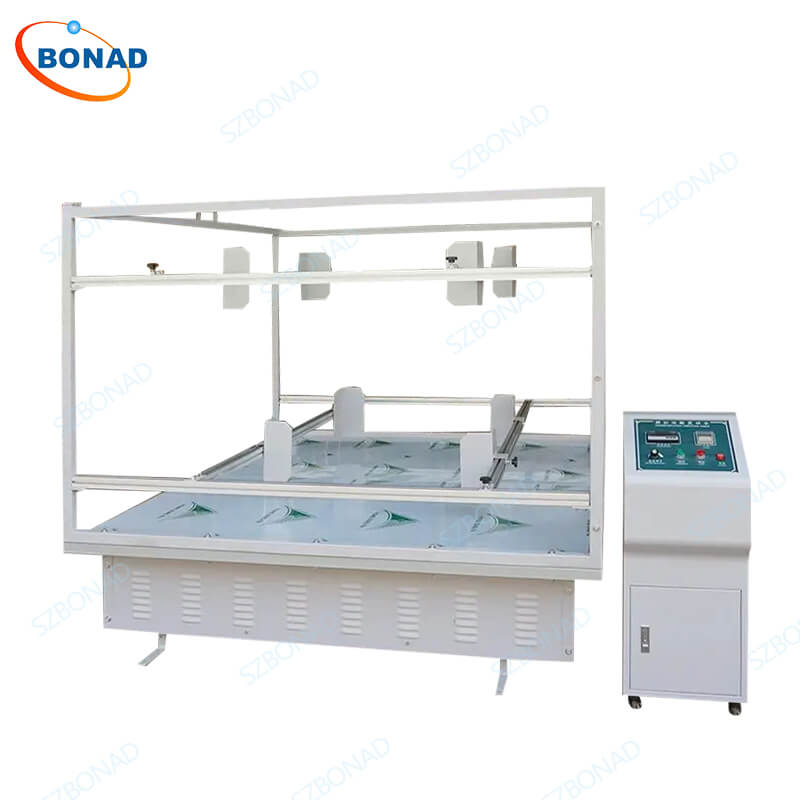

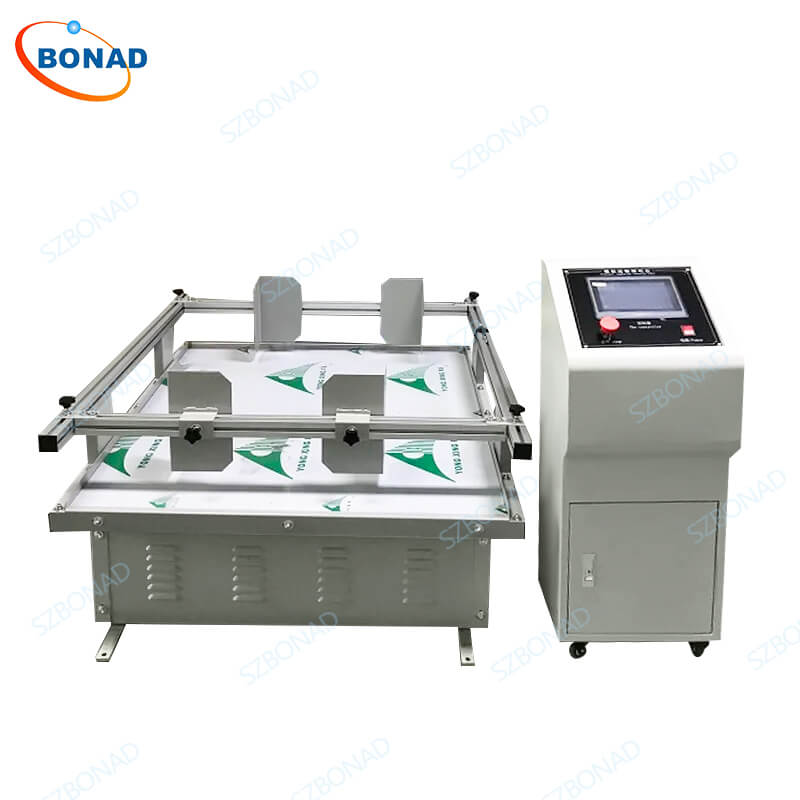

Simulating Automobile Transport Vibration Table

Brand: SZBONAD

Product Number: BND-ATVT

The simulating automobile transport vibration table is used for simulated transportation tests of toys, electronics, furniture, gifts, ceramics, packaging and other products. The simulating automobile transport vibration table complies with the transportation standards of the United States and Europe and the international transportation standards of EN, ANSI, UL, ASTM, and ISTA. The simulated transport vibration table is mainly used to simulate the collision of products in the car box, the collision of goods with the trunk, the mutual squeezing, and the damage of products when the goods encounter different road conditions such as bumps, uphill, downhill, and turns during automobile transportation, thereby further improving the quality of goods and packaging.

Simulating Automobile Transport Vibration Table – BONAD Packaging Testing Equipment

Standard:

ASTM D999

Application:

The simulating automobile transport vibration table simulates various vibration environments encountered by new products during manufacturing, assembly, transportation, and use to determine whether the product can withstand environmental vibration. It is suitable for research and development, quality control, and manufacturing in all industries such as electronics, electromechanics, optoelectronics, automobiles, toys, and packaging.

Features:

1. The simulated transport vibration table has a digital instrument to display the vibration speed/min; it is driven by a synchronous belt or chain and is sturdy and durable.
2. The test product installation and clamping adopts a guide rail type, which is easy and safe to operate.
3. The machine base is made of heavy-duty channel steel with shock-proof rubber pads, which is easy to install and run smoothly.
4. DC/AC motor speed regulation, stable operation and strong load capacity.
5. Simulated transport vibration test machine, rotational vibration, in line with European and American transportation standards.
6. Independent time control and timing function; frequency conversion control system.
7. The internal DC motor buffer start of the simulated transport vibration table is small and stable.
8. Transmission bearing-silent chain drive (non-traditional belt drive, more stable and quieter).
9. Heavy-duty channel steel seat is used, with shock-absorbing rubber inside, stable operation and easy disassembly.
10. The workbench of the transport vibration test machine is made of stainless steel and uses aluminum profiles as a fixed frame, which is convenient and flexible.

Technical parameters:

Item	Specification
Model	GX-ZD101 (Push Button) / GX-2D101C (Touch Screen)
Test Capacity	100 kg (Customizable to 200 kg, 500 kg, 1000 kg, 2000 kg, 3000 kg, 5000 kg, etc. upon request)
Test Table Dimensions	1200 x 1000 mm (Customizable based on customer product size; generally recommended to be 100-200 mm larger)
Guardrail Height	600 mm, 800 mm, 1000 mm, 1200 mm options available
Control Motor	AC Variable Frequency Motor
Frequency Range	100-300 RPM
Amplitude Range	25.4 mm (1 inch)
Simulated Vehicle Speed	25-40 km/h
Vibration Type	Rotational
