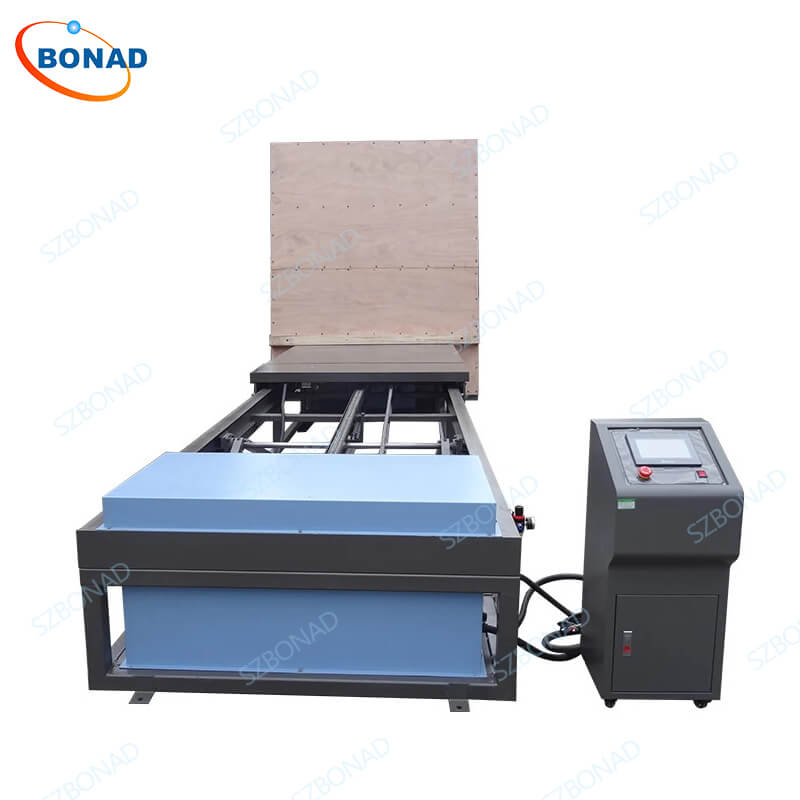

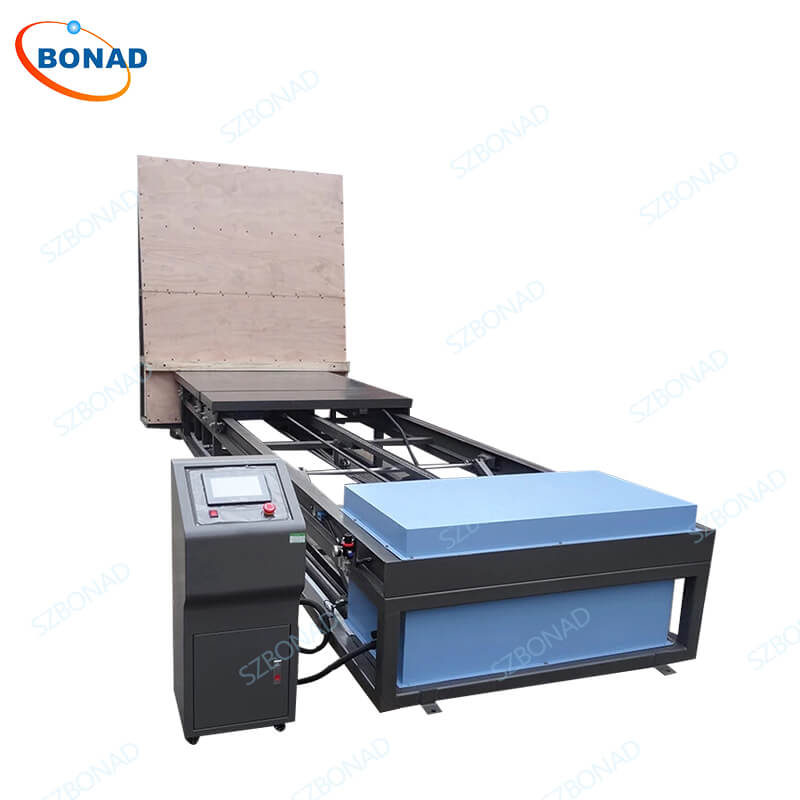

Packaging Inclined Impact Testing Machine – BONAD Packaging and Transportation Testing Equipment
Standards:
Our Packaging Inclined Impact Testing Machine adheres to international standards including ISO 2244-2001, ISO 8611-1, and ASTM D880, ensuring reliable and consistent testing results.
Applications:
This machine is indispensable for a multitude of laboratory applications. It plays a crucial role in:
- Product and packaging design evaluation.
- Simulation of packaging product transportation.
- Verification of pallet unit load stability.
Features:
- Flexible Mobile Plate: Easily adjustable for positioning and speed variation.
- Low Installation Height: Simplifies the installation process of test pieces.
- Horizontal Adjustment: Facilitates convenient installation of test pieces.
- Remote Control Operation: Ensures maximum safety for test personnel.
- Ease of Installation and Testing: Designed for straightforward setup and operation.
- Cylinder-Driven Angle Adjustment: Offers flexibility and convenience during tests.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-IITM |
| Sliding Length | 1500 mm (or specified) |
| Test Piece Weight | 100 kg (or specified) |
| Impact Speed Range | 1.305-2.608 m/s (adjustable) |
| Slider Platform Size | 1000 x 1000 mm (customizable) |
| Impact Panel Size | 1200 x 1800 mm (width x height) |
| Control System | PLC software programming control |
| Display Method | Color touch screen display |
| Slider Platform and Impact Panel Surface Material | Solid wood board |
| Safety Features | Emergency stop, overload protection, upper and lower limit switches, load sensor with automatic retract function |
