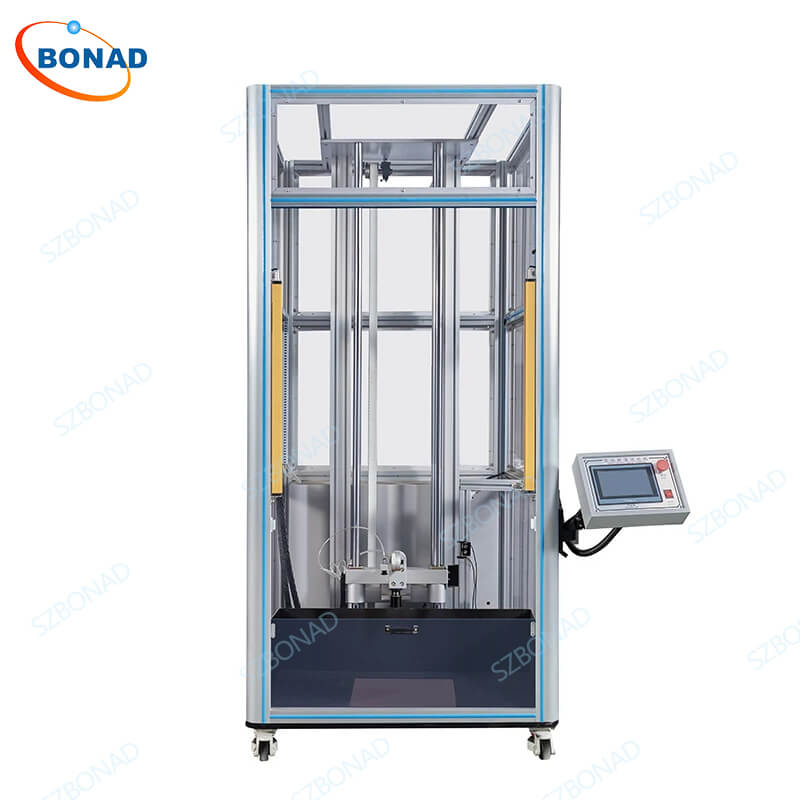

Mobile Phone Directional Drop Test Machine – Bonad Multi-Directional Drop Impact Test Machine
Standards:
- IEC 60068-2-32
- JIS C 0044
- YD/T 1539-2006
Applications:
This advanced drop test machine is ideal for testing a wide range of small electronic products, including but not limited to:
- Mobile Phones
- Mobile Phone Lithium Batteries
- Walkie-talkies
- Electronic Dictionaries
- Apartment Intercoms
- MP3 Players
It works in conjunction with universal adjustment devices to perform original posture and acceleration drop tests.
Features:
- Enclosed Structure with Safety Features: The machine features a fully enclosed structure with a transparent acrylic protective plate to ensure safety during testing.
- Touch Screen Interface: Equipped with a touch screen for easy data setting and display.
- PLC Programming Support: Allows for precise test control through PLC computer programming.
- Customizable Clamping Device: The clamping device can be tailored according to specific test requirements.
- Electronic Vacuum Suction Cups: Three vacuum suction cups can be electronically switched.
- Accurate Drop Impact Angle: Ensures the drop impact angle of the test piece closely matches the predetermined angle.
- Servo Motor Adjustment: A servo motor drives the corresponding module to adjust the drop height quickly and accurately.
- Automatic Height Adjustment: After each test, the clamping device automatically rises to the set height, improving operational convenience and test efficiency.
- Drop Count Display: Allows for free display of the number of drops and zeroing.
- Dual Clamping Methods: Supports both vacuum adsorption and pneumatic clamping methods.
- Multi-angle Adjustment Device: Capable of performing drop tests on edges, corners, and surfaces at angles such as 0°, 45°, 90°, or other required angles.
- Safety Door: Provides comprehensive protection; the test stops immediately if the door is opened.
- Variety of Floors Available: Options include steel plates, acrylic plates, wooden boards, or marble plates.
- Mobility and Stability: Equipped with four lockable casters and a horizontal fine-tuning device for easy movement and stable positioning.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-DDL |
| Sample Specification | Diagonal size less than 190 mm, weight less than 1000 g |
| Minimum Product Size | 30 x 10 x 10 mm |
| Sample Types | Chargers, batteries, tooling models, and other irregular products |
| Drop Height | Adjustable within 300-1800 mm, with a displacement accuracy of ±0.5 mm |
| Drop Angle | 0-±180°, adjustable in increments of 5° |
| Relevant Standards | Based on relevant enterprise testing standards |
| Suction Cup Specification | One 30 mm suction cup (or custom fixtures as per customer requirements) |
| Testing Angles | 0°, 45°, 90° |
| Drop Surface Material | A3 steel plate, wooden board (350 x 350 x 17 mm), marble slab (350 x 350 x 18 mm) |
| Test Data | Drop height, acceleration, initial velocity, test duration, number of tests, etc. |
| Measured Acceleration | >9.3 m/s² |
| Control Modes | Height + Orientation, Final Velocity + Orientation, Height + Free |
