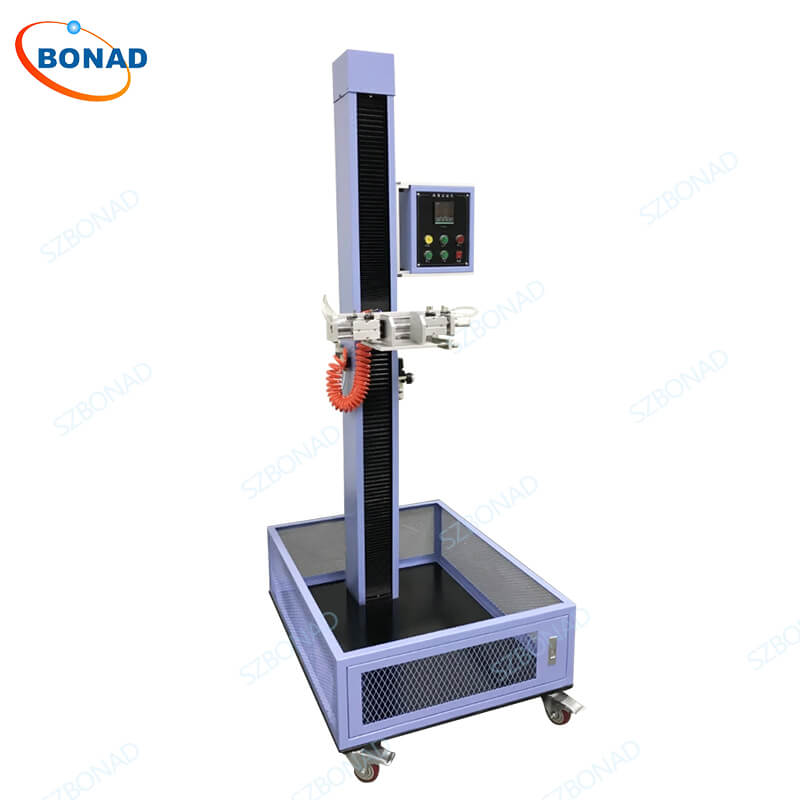

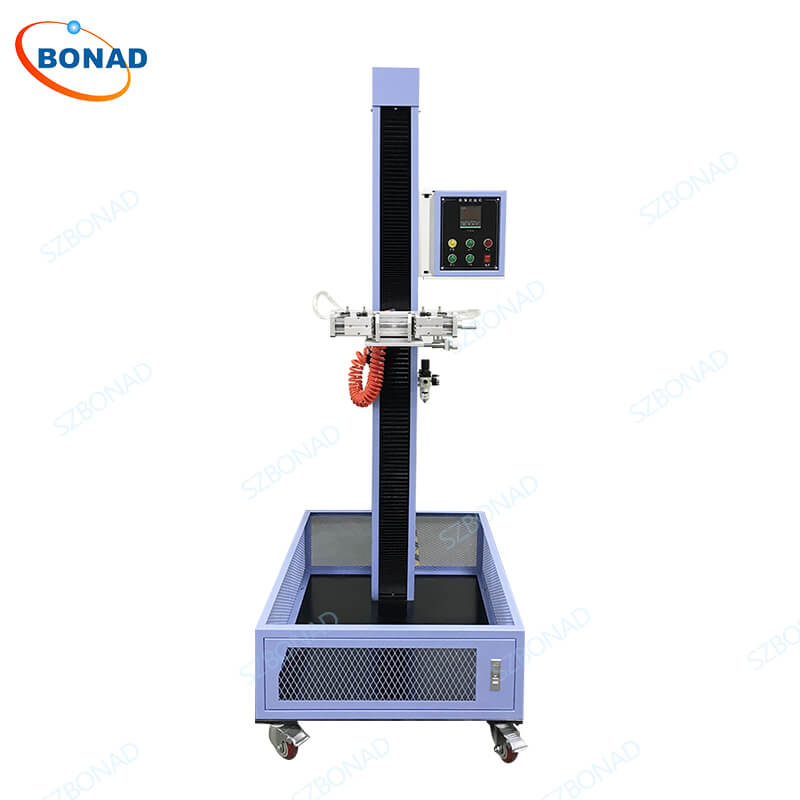

Cell Phone Drop Testing Instrument Small Part Drop Test Machine for Small Electronic Products
Standard:
- JIS C 0044
- IEC 60068-2-32
Application:
This drop tester is suitable for conducting free fall tests on small electronic products and parts, including but not limited to:
- Mobile phones
- Mobile phone lithium batteries
- Walkie-talkies
- Electronic product chargers
Features:
- Electric Lifting and Pneumatic Release: The machine uses electric lifting and pneumatic release mechanisms for accurate and fast lifting and positioning.

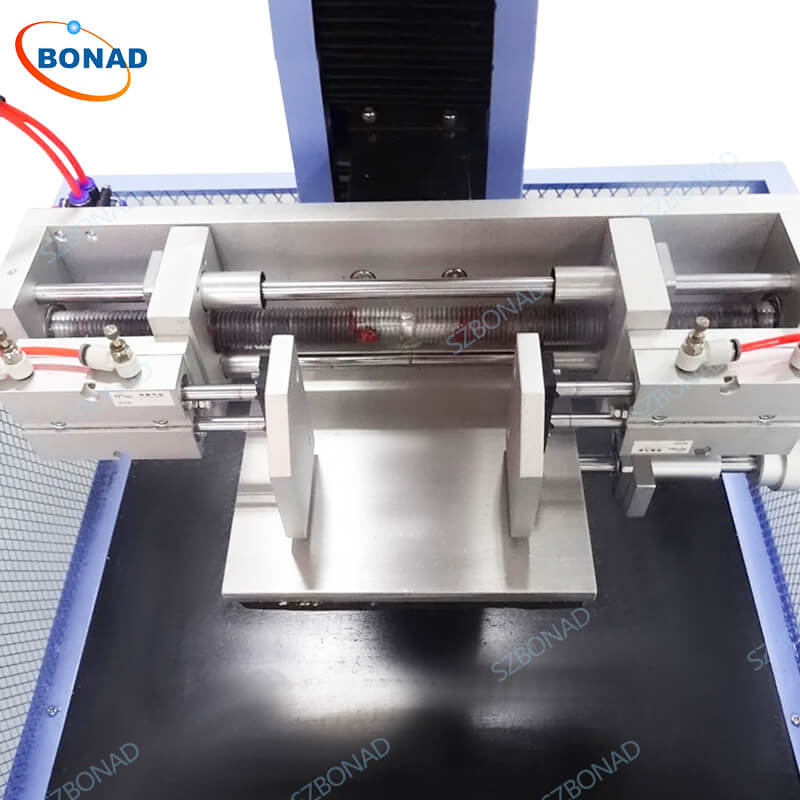

- Special Pneumatic Clamp: Equipped with a special pneumatic clamp with silicone rubber-filled jaws to prevent damage to the test piece.
- Versatile Testing: Capable of performing drop tests on products of various specifications, allowing the test piece to be dropped in different postures.
- Adjustable Drop Height: The drop height can be automatically adjusted up and down, with a scale ruler provided to accurately indicate the drop height of the test piece.

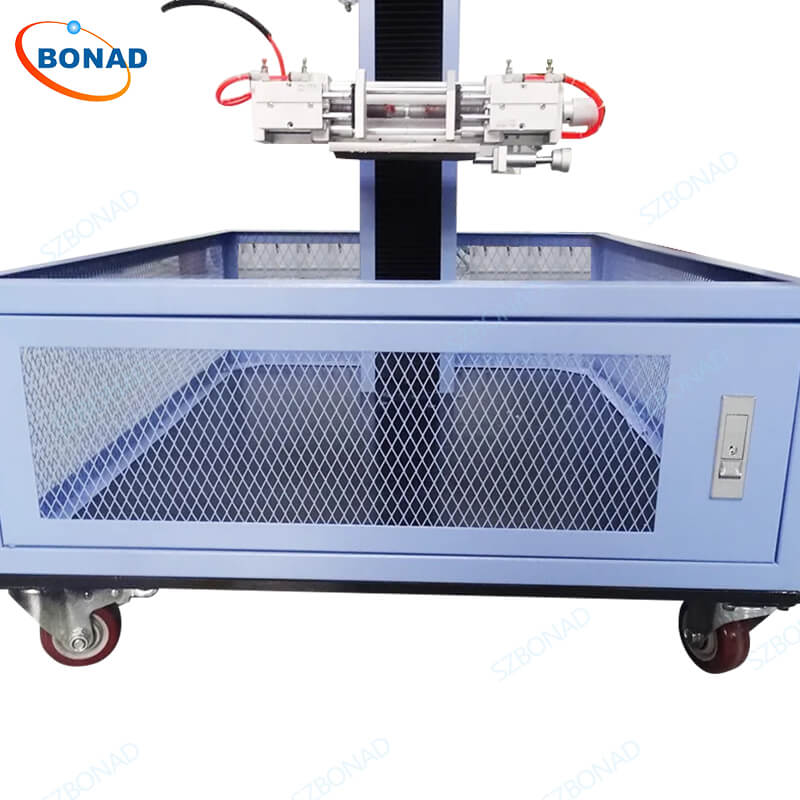

- Various Flooring Options: Multiple types of flooring are available, including A3 steel plate, marble plate, wood plate, etc.
- Smooth Operation & Low Noise: Ensures smooth operation with minimal noise.
- Simple Operation & High Repeatability: Easy to operate with high repeatability of results.
Technical parameters:
| Specification | Details |
|---|---|
| Device Model | BND-DLMP002 |
| Drop Height | 300 to 1500 mm (adjustable) |
| Maximum Allowed Weight of Test Item | 2 kg |
| Allowed Dimensions of Test Item | 200 x 100 mm (length x width) |
| Drop Floor Medium | A3 steel plate, marble plate, wooden board |
| Testing Drop Points | Edge, corner, surface |
| Drop Method | Pneumatic drop |
| Lifting Method | Electric lifting |
| Operating Air Pressure | 0.6 MPa |
| Operating Power Supply | 220 V, 50 Hz |
