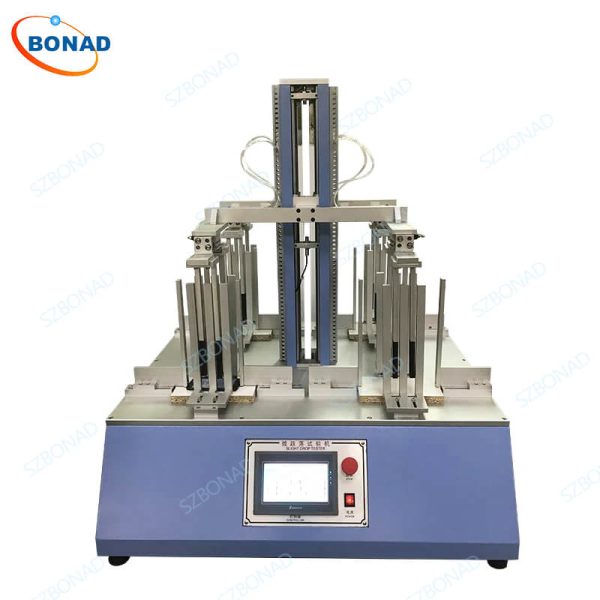

Micro Drop Test Machine for Mobile Phone Electronic Products – Repeated Drop Life Test Machine
Applications:
The Micro Drop Test Machine is ideal for conducting free fall tests on a variety of small consumer electronic products and components. It caters to devices such as mobile phones, walkie-talkies, electronic dictionaries, and tablet computers. By employing this machine in the research and development phases, manufacturers can ensure their products possess robust anti-drop capabilities.
Working principle:
The machine operates through a meticulously designed mechanism where a motor drives an upper clamp (pneumatic finger) to securely hold the mobile phone. Upon release, the device falls freely to simulate a drop scenario. This process repeats until the pre-set number of tests is achieved. The double-acting cylinder ensures accurate positioning after each drop, maintaining consistency throughout the testing process.
Features:
- Customizable Testing Cycles: Easily set the number of drops required; the machine automatically stops upon reaching this limit.
- Durable Construction: The drop surface is made from A3 steel plate but can be customized according to specific requirements.
- User-Friendly Interface: Features an LCD touch control screen paired with a PLC programmable controller for seamless operation.
- High-Quality Components: Utilizes a Japanese Shinano motor ensuring long-lasting performance.
- Efficient Pneumatic System: Enhances test speed and consistency while reducing noise levels.
- Comprehensive Impact Analysis: Accurately measures the impact resistance of products from various heights.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-MDT |
| Control Method | PLC Touch Screen |
| Test Stations | 2 stations / 3 stations / 4 stations (customizable) |
| Maximum Test Sample Weight | 0-2 kg (customizable) |
| Maximum Test Product Size | 0-7 inches (or 180 x 80 mm) |
| Testing Height Range | 20-200 mm |
| Testing Speed Range | 0-20 times/min (settable) |
| Testing Count Range | 0-999999 times (settable) |
| Impact Plate Material | A3 Steel Plate, Wooden Board, Particle Board, Marble Slab (select one) |
