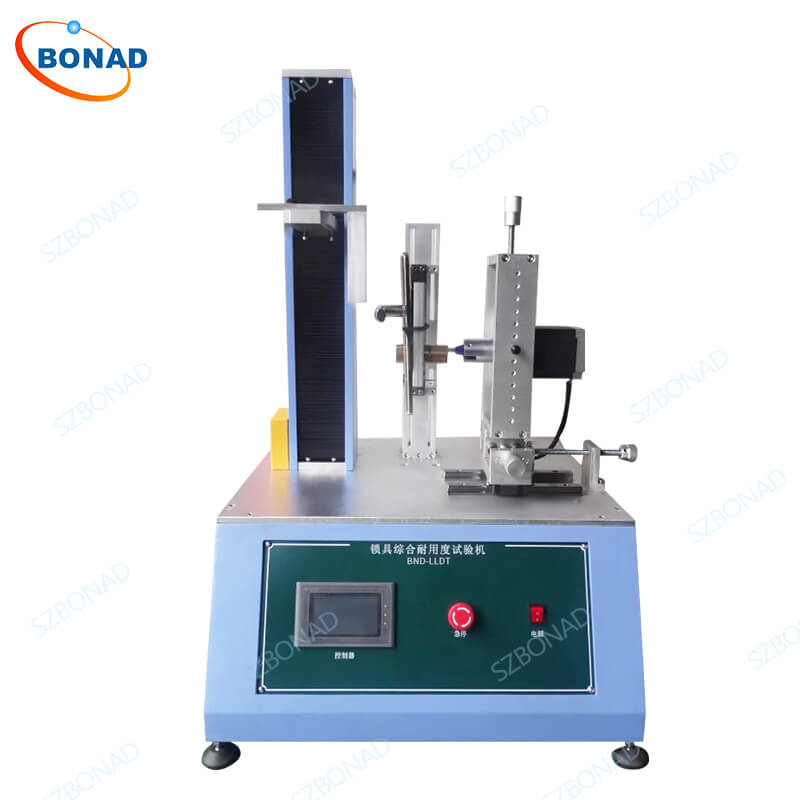

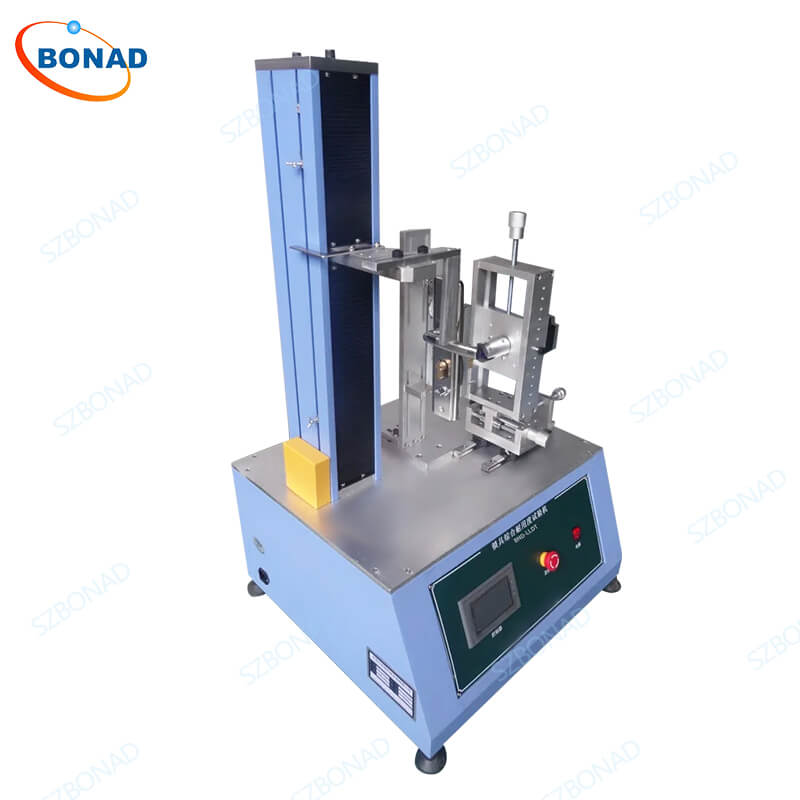

Lock Life Durability Testing Machine – BONAD Lock Cylinder Testing Machine
Standards:
- EN 1303: Our testing machine complies with this European standard for lock durability.
Application:
Designed for versatility, the lock life durability testing machine assesses the life performance of multiple lock types including mortise door locks. The process involves inserting a key into the slot, rotating it in both directions to simulate real-life usage conditions, and then removing it to complete a test cycle. By adjusting or replacing fixtures, the machine can test different lock models with precision.
Features:
- Advanced Control System: Utilizes PLC touch screen programming for precise operation control.
- Adjustable Test Frequency: Driven by a motor with adjustable frequency settings; values are displayed on a touch screen.
- Automatic Counter: Displays test numbers and includes an automatic stop feature with power-off memory protection.
- Versatile Testing Modes: Capable of performing continuous or single tests as needed.
- Fixture Flexibility: Customizable fixtures allow testing of various lock types.
- Professional Fixture Design: Fixtures are crafted specifically for each test product ensuring accurate results.
Technical parameters:
| Item | Specification |
|---|---|
| Control Software | PLC programming software, touch screen control |
| Operating Modes | Two modes (or customer specified): Lock tongue, Torque |
| Counting Function | 0-999,999 times, programmable setting |
| Speed Function | 0-20 times/min, programmable setting |
| Angle Function | 0-360° (or specified), programmable setting |
| Action Mode | Electric type |
| Testing Fixture | One set equipped according to customer product |
| Power Supply | AC 220V 50Hz |
| Weight | Approximately 80 kg |
