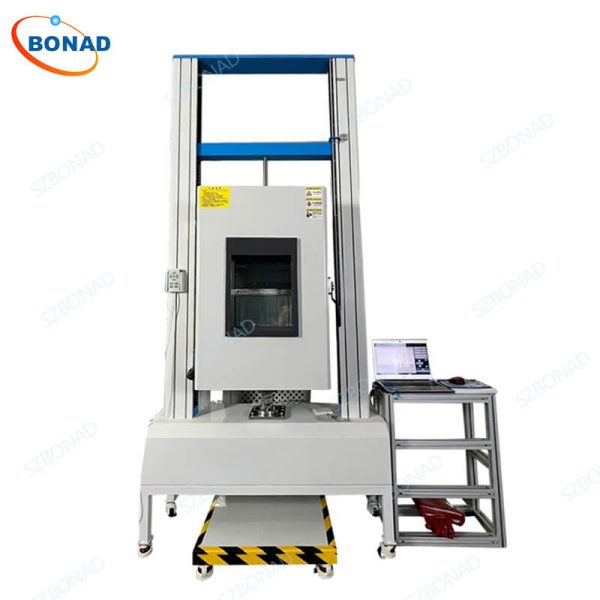

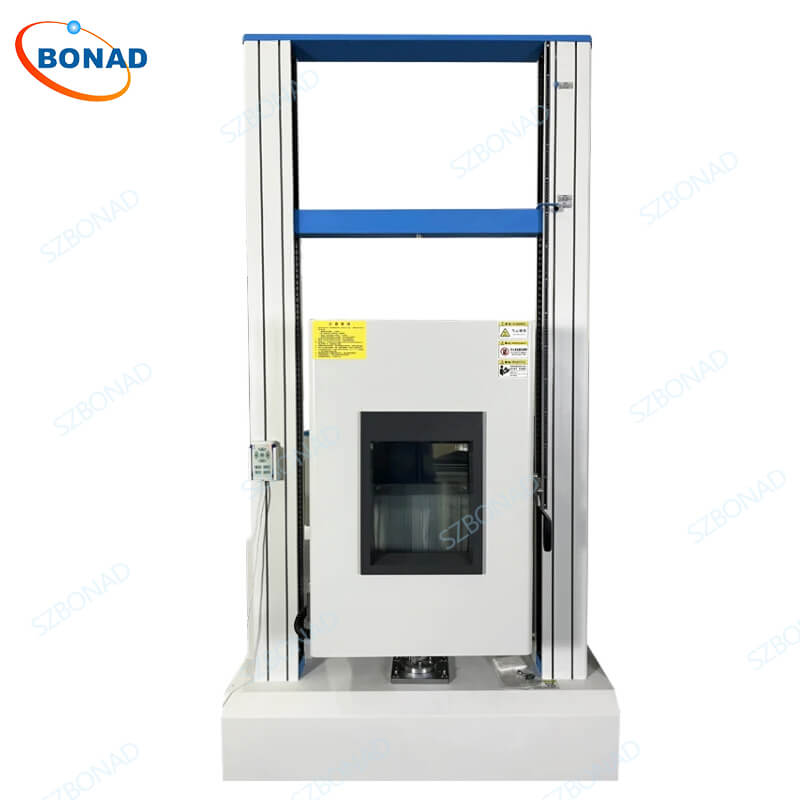

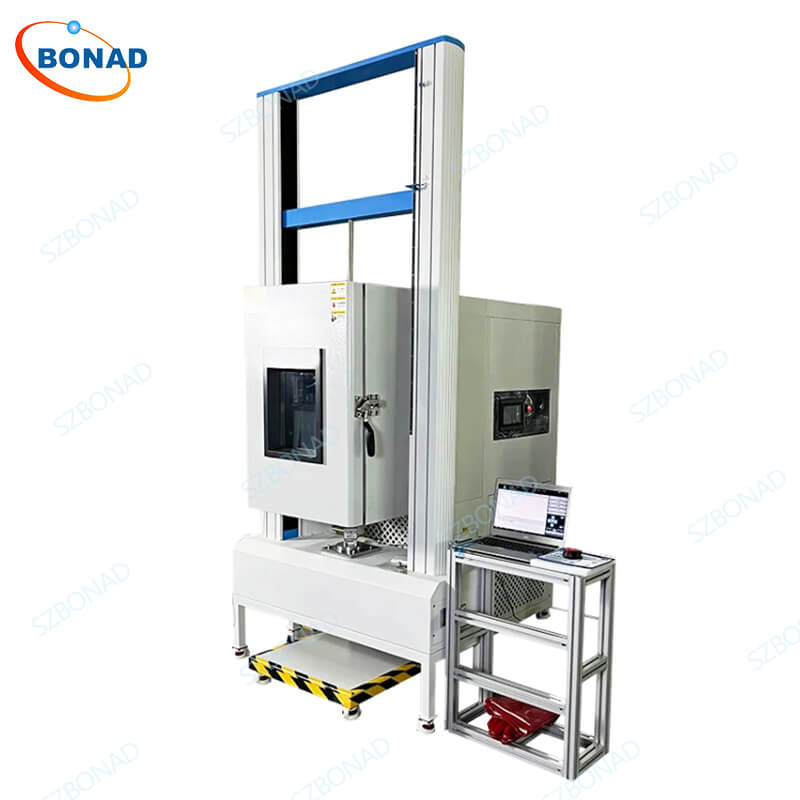

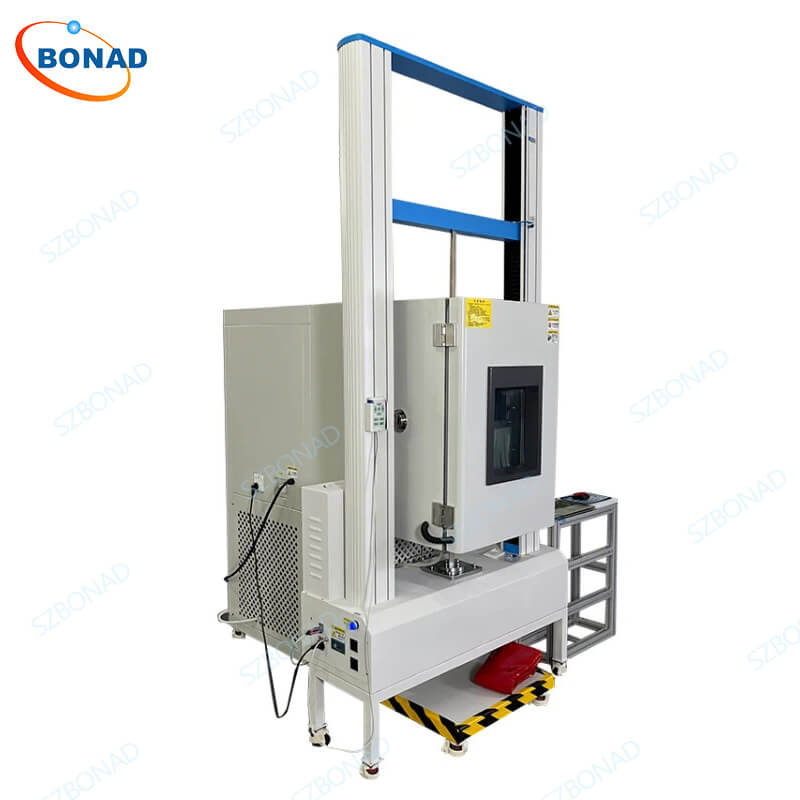

High and Low Temperature Universal Tensile Testing Machine – BONAD Tensile Material Testing Machine
Standards
Our tensile testing machine adheres to a wide array of international standards ensuring precision and reliability in every test conducted. These include:
- ASTM A370
- ASTM E4
- ASTM E8
- ASTM E9
- ASTM D2344
- ASTM D3039
- ASTM D6641
- ISO 14125
- ISO 6892
- ISO 7438
- ISO 7500-1
- EN 10002-4
Applications
This machine is ideal for assessing the physical properties of materials such as tension, pressure, tear, shear, peel, unwinding force, and ring adhesion under various temperature conditions. It finds extensive application across multiple industries including machinery manufacturing, electronic appliances, automotive production, textiles and chemical fibers, wire and cable production, as well as packaging materials.
Features
- Precision Sensors: Equipped with standard high-precision tension and compression sensors with options for expanding to multiple load sensors.
- Advanced Control System: Utilizes a built-in controller to maintain constant speed displacement control.
- Reliable Motor Performance: Features an AC servo motor known for its stability and reliability.
- Comprehensive Data Handling: Capable of both automatic and manual acquisition of experimental results; includes functionalities for displaying test parameters, working status, data collection and analysis, result display, print output among others.
- Overload Protection: Automatically shuts down when exceeding 3~5% of the maximum value per gear setting.
- Beam Travel Protection: Offers dual protection through electronic limits and program control.
Technical parameters:
| Equipment model | BND-HLUT |
| Model | Double column type (gantry type) |
| Test capacity | Any choice within the range of 0-10000kg |
| Control motor | Servo motor |
| Test speed | Adjustable from 0.1-500mm/min |
| Force unit | Kg, Lb, N switching function |
| Effective test stroke | 500mnm (including fixture), other sizes can be customized |
| Effective test width | 400mm |
| Control method | High-precision computer control software (curve graph) |
| Test fixture | Standard universal fixture set (please note if special requirements are required) |
| Temperature range | -C20℃ – +150℃, -40℃ – +150℃, -70℃ – +150℃ |
| Temperature stability | +1℃ |
| Temperature uniformity | ±2℃ |
| High and low pressure box size | Inner dimensions 400x400x800mm (length, width and height), outer box dimensions are subject to actual dimensions |
| Cooling degree | >1℃/min |
| Heating speed | >2℃/min |
| Power supply | 220V+10%/380V+10% |
