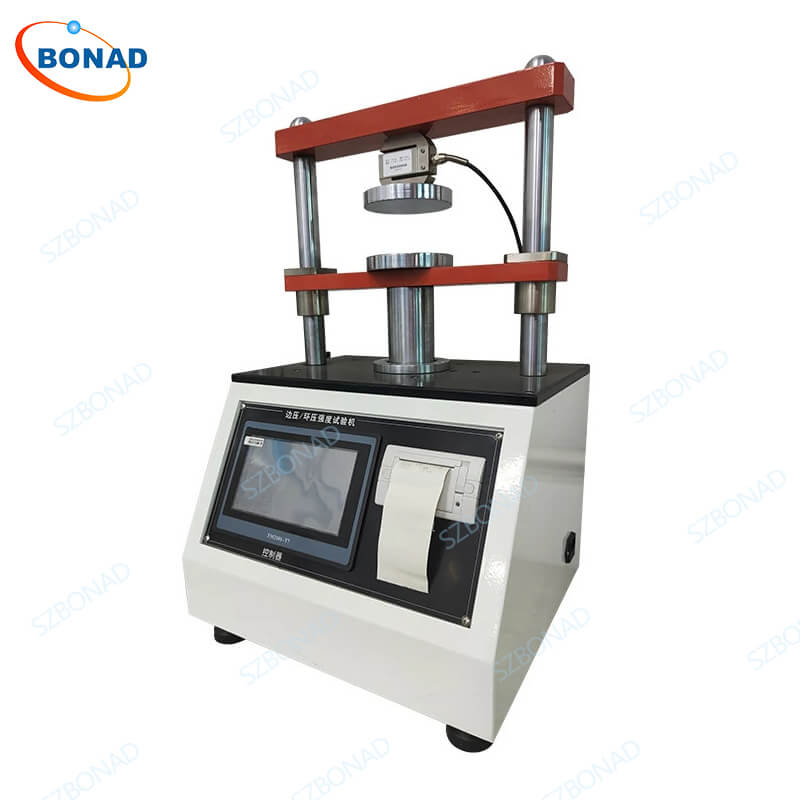

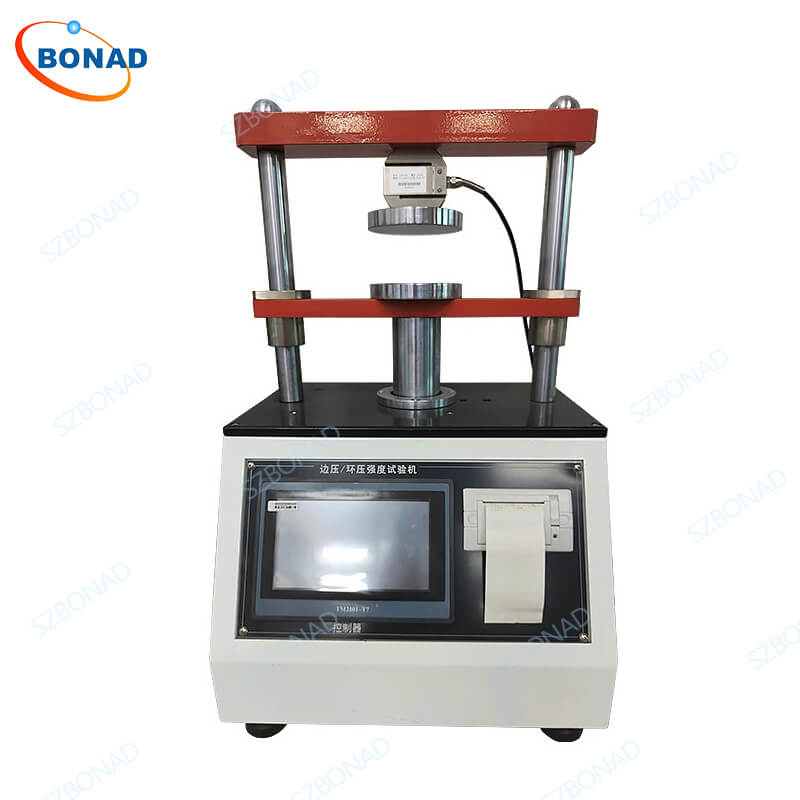

Cardboard Ring Edge Compression Strength Testing Machine – BONAD Compression Strength Testing Machine
Standards:
- ASTM D1985
- TAPPI T 811
- ISO 3037
- ISO 3035
Applications:
- Packaging Industry: Widely used by manufacturers to assess the strength of corrugated boxes and paperboard, ensuring they can endure stacking and handling pressures.
- Quality Control: Integral in quality assurance processes to verify that packaging materials meet specified strength standards before production use.
- Research & Development: Utilized by R&D departments for developing new materials or enhancing existing packaging solutions.
- Compliance Testing: Ensures products adhere to industry standards and regulations concerning packaging strength.
Features:
- Automatic Functionality: Features an automatic return function post-test completion, with capabilities to automatically determine crushing force and save test data.
- User-Friendly Interface: Equipped with a full Chinese LCD display operation interface offering three sets of speed and multiple unit options.
- Data Input & Conversion: Allows input of relevant data for automatic conversion of ring pressure strength and edge pressure strength; includes a packaging stacking test function.
- Customizable Settings: Users can directly set force and time parameters, with an automatic shutdown feature after test completion.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-RECS |
| Testing Capacity | Adjustable within the range of 0-200 kg |
| Resolution | 1/10,000 |
| Unit Switching Function | Freely switchable between kg, lb, N, etc. |
| Compression Plate Size | 105 x 105 mm |
| Compression Distance | 140 mm |
| Plate Parallelism | ±0.05 mm |
| Testing Speed | 12.5 + 2.5 mm/min |
