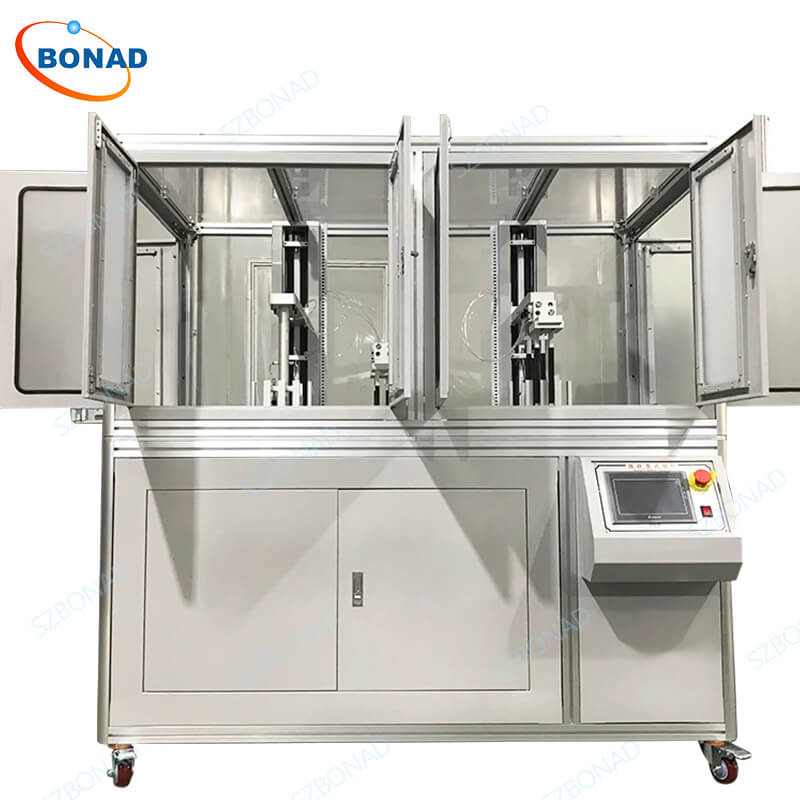

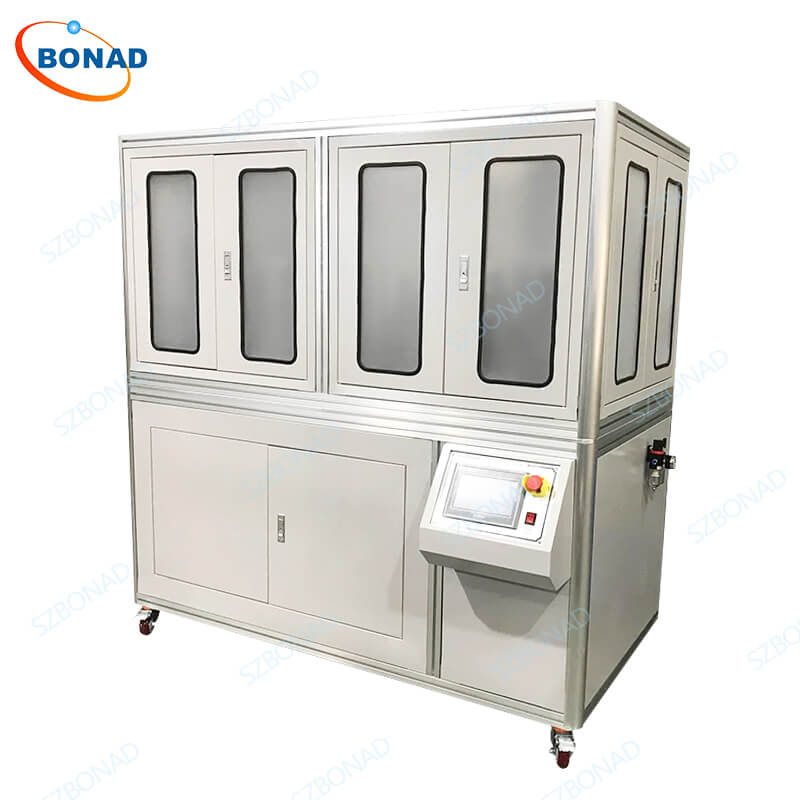

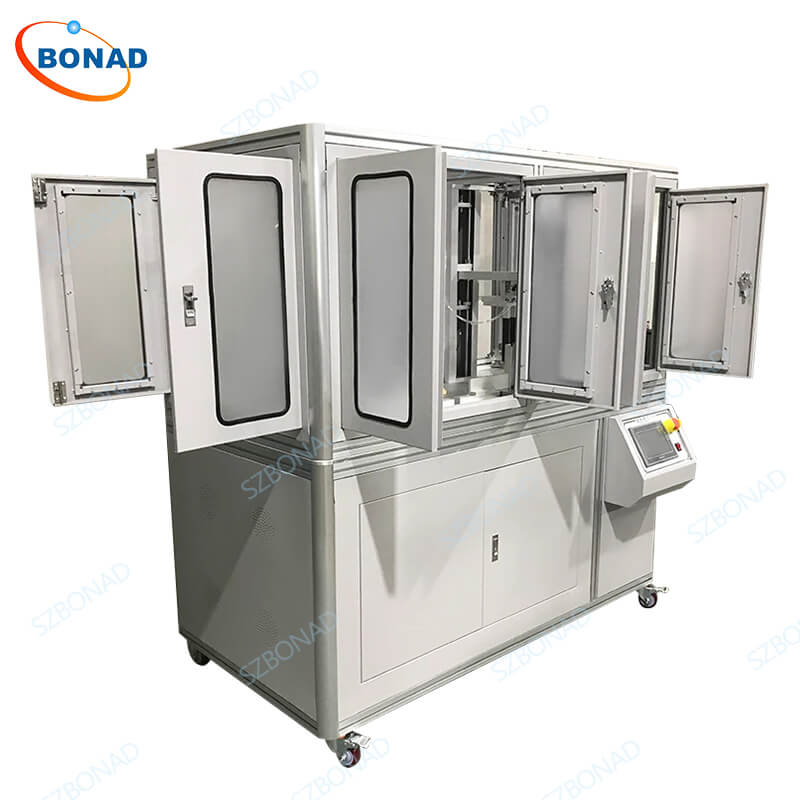

Box-Type Micro Drop Test Machine

Brand: SZBONAD

Product Number: BND-BMDT

The box-type micro drop test machine simulates the conditions that small electronic products, such as mobile phones, experience during use. This specialized equipment is designed for desktop drop fatigue testing of mobile phones and other electronic devices, allowing for the evaluation of the durability of both the outer shell and internal structure against minor drops. It is suitable for conducting drop tests on various small electronic products, including mobile phones, tablets, e-books, and electronic dictionaries. The system features a touch screen interface that communicates with a PLC to control the lifting and lowering of the clamp in the drop mechanism, which is operated by a brake stepper motor. The coordinated release action of the unhooking device and clamp facilitates the execution of the drop test.

Box-Type Micro Drop Test Machine – BONAD Micro Fall Test Machine

Standards:

Our machine complies with international standards IEC 60068-2-32 and IEC 60068-2-27, ensuring reliable and consistent testing results.

Application:

Perfectly suited for free fall tests of consumer electronics, the Box-Type Micro Drop Test Machine is applicable to a range of products including mobile phones, walkie-talkies, electronic dictionaries, and tablets. It provides manufacturers with critical insights into product durability and performance under stress.

Features:

Robust Frame: Constructed with aluminum profiles and thickened transparent acrylic for a sleek appearance and sturdy structure that ensures user safety during testing.
Advanced Lifting Mechanism: Utilizes a linear sliding guide rail combined with synchronous belt drive lifting to set any desired test height.
Versatile Testing Angles: Capable of conducting multi-angle product tests to cover various drop scenarios.
User-Friendly Interface: The touch screen coupled with PLC control displays essential data such as test height and number of drops.
Customizable Stations: Offers multiple test station standards with customization options to meet specific requirements.

Technical parameters:

Item	Specification
Equipment Model	BND-BMDT
Control Method	PLC Touch Screen
Testing Station	2 Stations / 3 Stations / 4 Stations (Customizable)
Maximum Test Sample Weight	0-2 kg (Customizable)
Maximum Test Product Size	0-7 inches (or 180×80 mm)
Testing Height Range	20-200 mm
Testing Speed Range	0-20 times/min, adjustable
Testing Count Range	0-999999 times, adjustable
Impact Plate Material	A3 Steel Plate, Wood, Particle Board, Marble (Choose one)
Protective Device	High-quality Aluminum Profile Frame + Transparent Acrylic Combination
