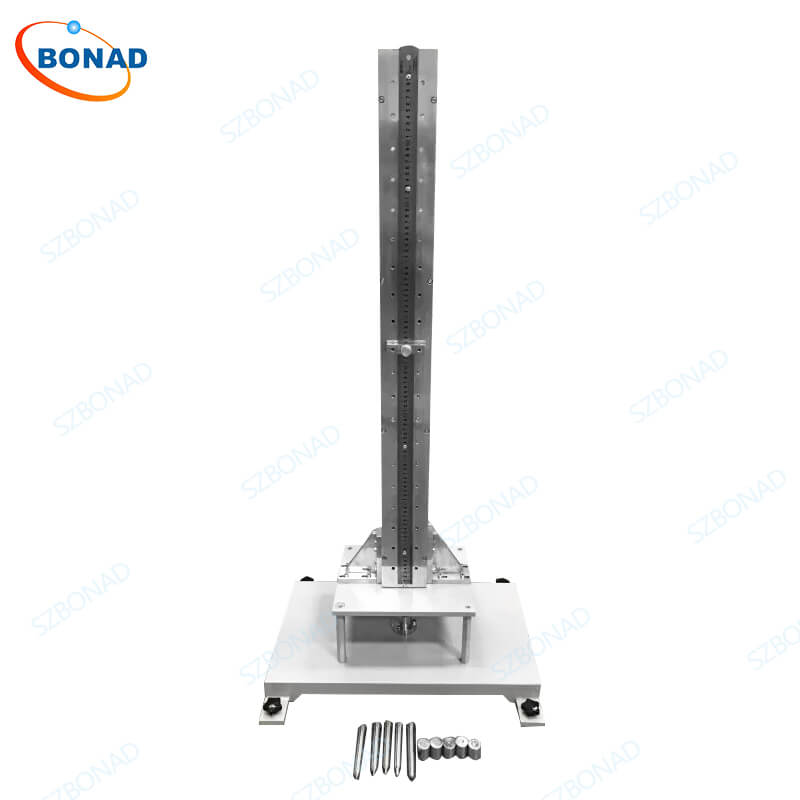

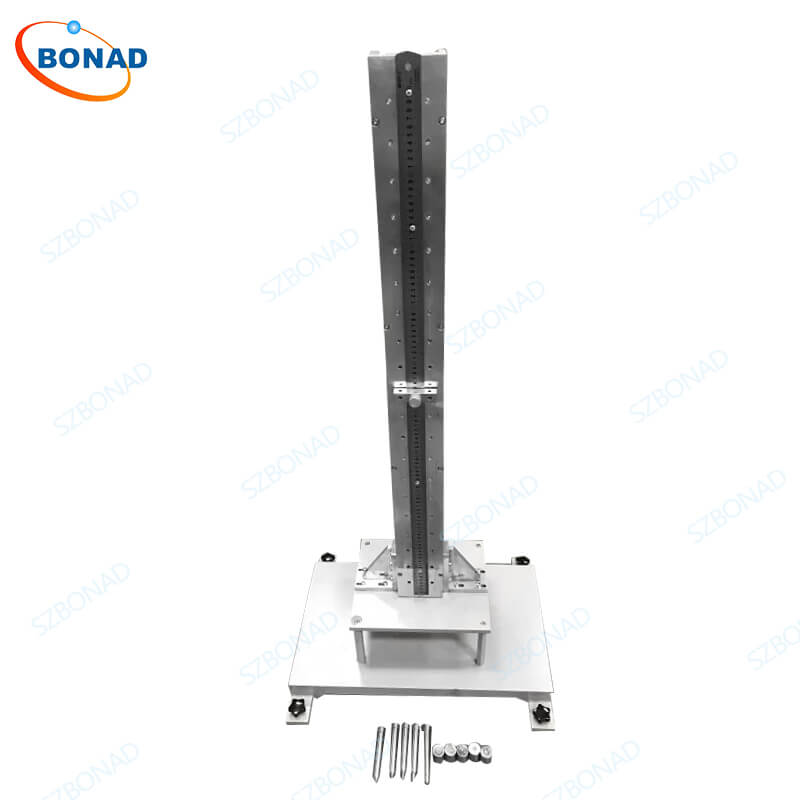

ASTM D2794 DuPont Impact Testing Machine – BONAD Impact Testing Machine
Standard:
Our impact tester adheres to several international standards:
- ASTM D2794: Standard Test Method for Resistance of Organic Coatings to Rapid Deformation (Impact).
- JIS K5400: Testing Methods for Paints.
- ISO 6272: Paints and varnishes — Rapid-deformation (impact resistance) tests.
- CNS 10756: Method of test for paints (Film formability of paints).
Applications:
The DuPont impact tester is primarily used in:
- Evaluating the resistance of cured paint or varnish films to deformation from falling weights.
- Industries such as paint manufacturing, coatings production, steel processing, pipeline construction, and various manufacturing sectors.
Features:
- User-Friendly Design: The machine is designed for ease of use with straightforward operation procedures.
- Durable Construction: Made from high-quality steel that resists rust and corrosion. The stainless steel impact hole ensures long-lasting performance.
- Customizable Configuration: Choose from different drop hammers, impact heads, and bases tailored to specific testing needs.
- Adjustable Impact Height: Options available at 0.5 meters and 1 meter to suit various testing requirements.
Technical parameters:
| Equipment model | BND-DPIT | |
| Applicable materials | Paint test piece | Plastic test piece |
| Drop height | 50-500mm, interval 50mm | 50-1000mm, 50mm interval |
| Heavy hammer | 300g, 500g, 1000g | 1000g、2000g |
| Cone radius | 1/2, 1/4, 3/16, 1/8, 1/16in | 7.9mm(5/16in) |
| Test piece base radius | Flat surface 1/2, 1/4, 3/16, 1/8, 1/16in | 8.1mm、15mm |
| Volume | 580x480x1280mm | |
| Weight | 45kg | 50kg |
