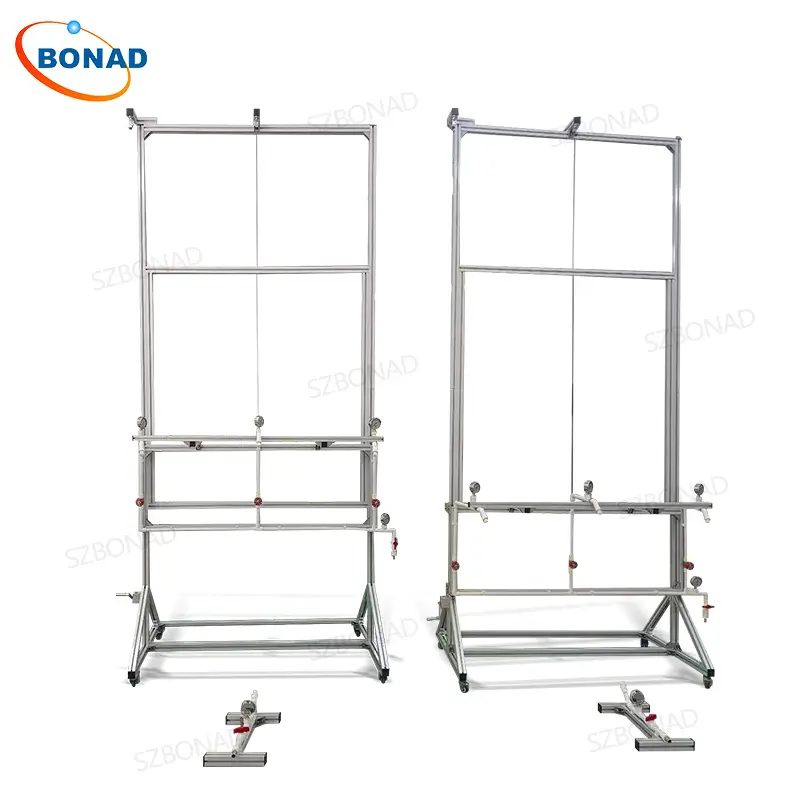

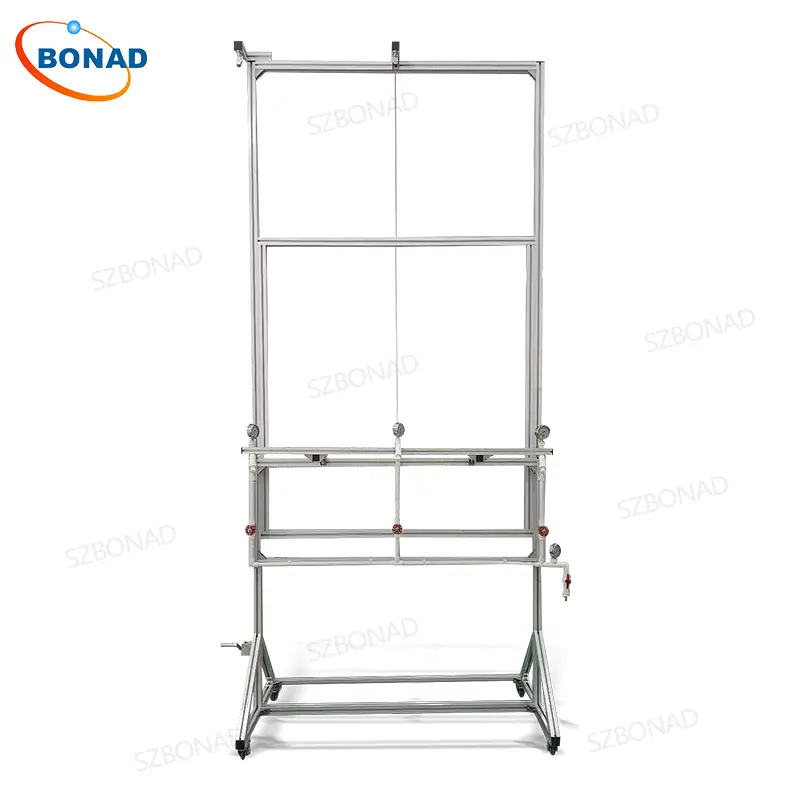

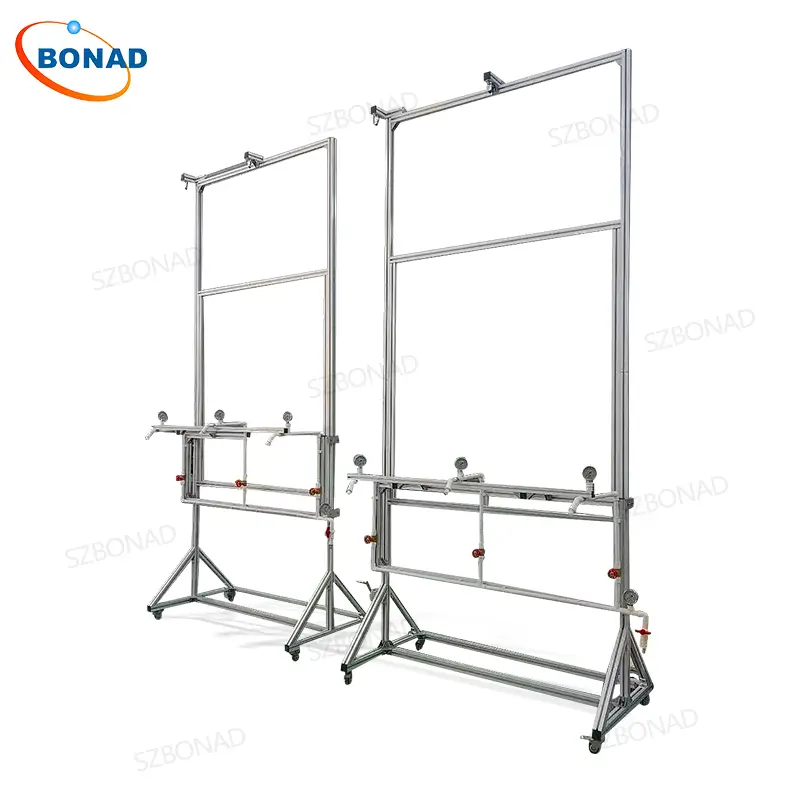

UL Water Spray Rain Test Device – Focus on Rain Waterproof Testing
Implementation standards:
The UL water spray rain test device is based on the requirements in Figure 38.1, Figure 38.2 of the UL60507-ENGL 1999 standard, and “ANSI Z21.10.3-2004” and “Figure 10/Figure 11 clauses in the ANSI Z21.58 standard” and “CSA4.3 -2004” standards to meet UL1598, UL153, UL154B, UL1703, UL8750, UL1741, UL514B, UL1278, UL1571 and other standards.
Equipment characteristics:

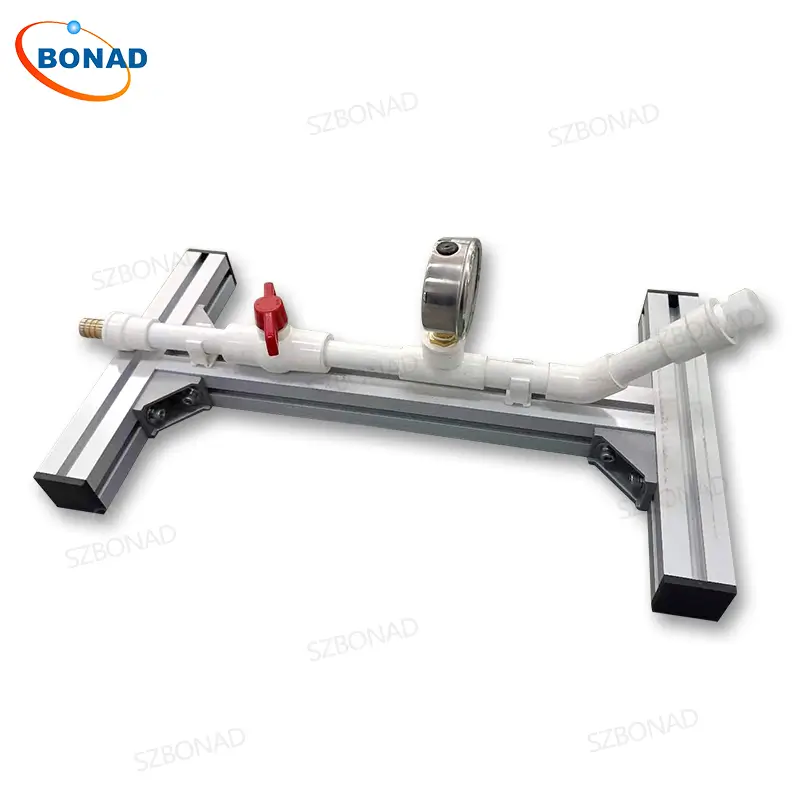

- Applicable to UL rain test and 45° water spray test of products.
- Water spray position of UL test device: 3 UL nozzles above.
- The frame part of this device is made of formed aluminum material, with stable structure and easy to clean.
- The nozzle holder can be moved, and it can be raised and lowered freely through the hand-operated stainless steel wheel device.
- This device adopts the original imported nozzle of UL laboratory, which fully complies with UL standard.
- The bracket base adopts universal casters with brakes, which is convenient to move and fix.

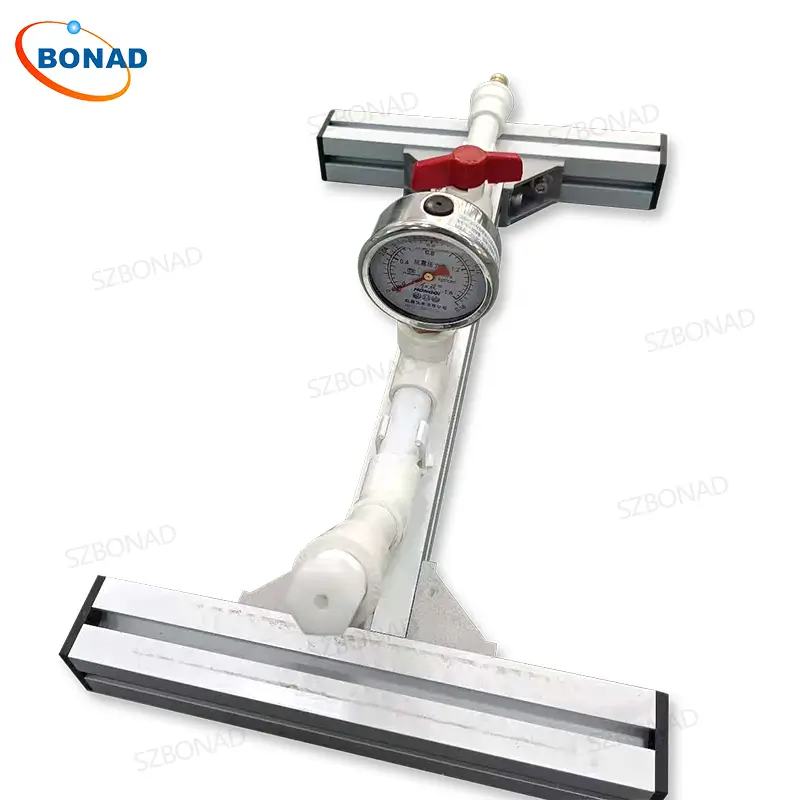

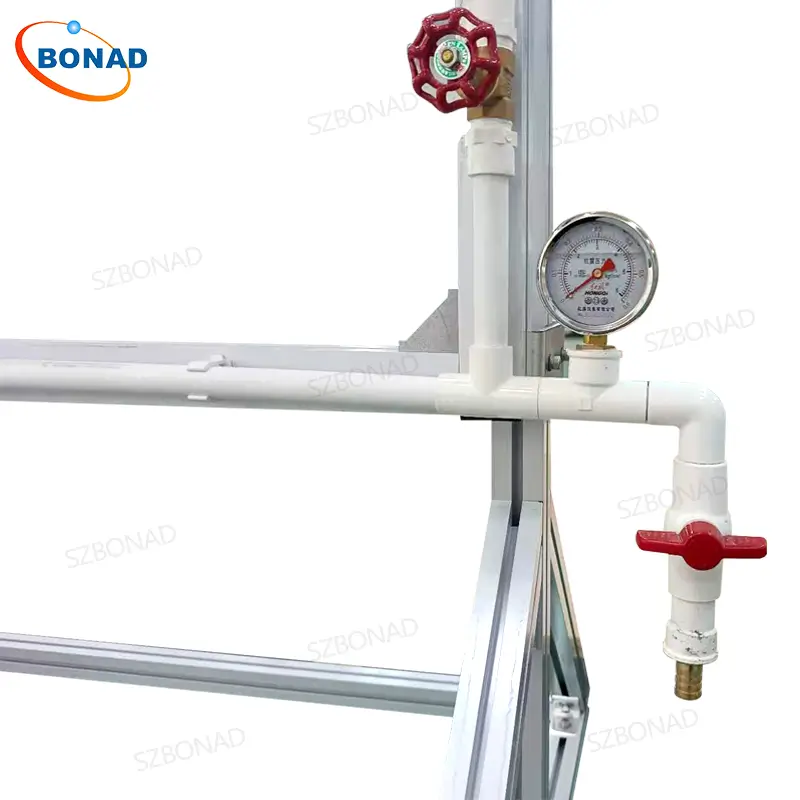

- The domestic brand “Hongqi” stainless steel pressure gauge is used to display the spray water flow rate (each nozzle has a corresponding pressure gauge).
- The nozzle distribution of the equipment is designed in strict accordance with the standard, as shown in the figure:
Technical parameters:
| External dimensions of equipment | About 1500*800 mm |
| Equipment height adjustable range | 1000~2000mm |
| Number of nozzles | 3pcs or 4pcs |
| The distance between the water jet intersection and the ground | 0-1000mm |
| Water flow rate | ≥10L/min |
| Total water pressure | 50~150Kpa |
| Single nozzle pressure | About 34.5Kpa |
| Number of pressure gauges | 4pcs |
