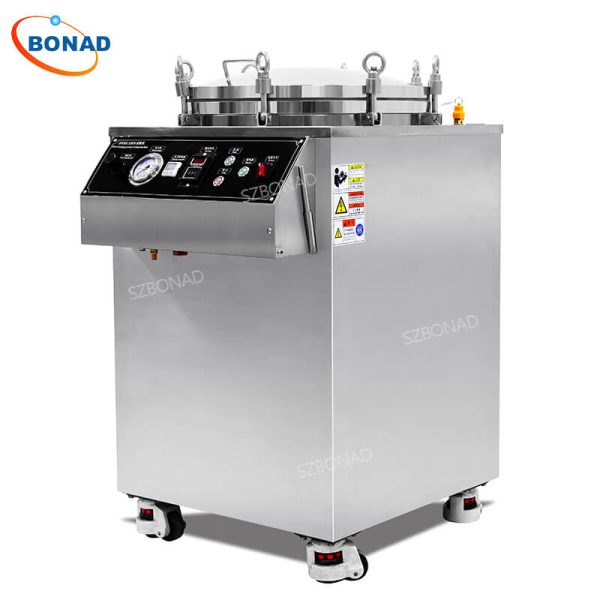

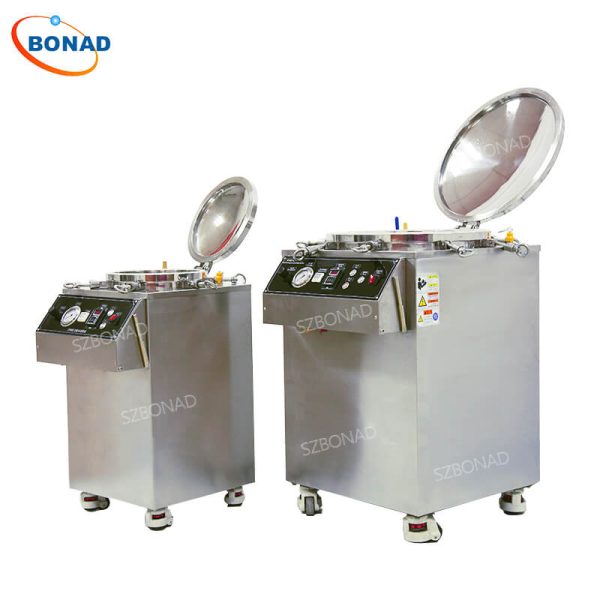

IEC60529 IPX8 pressurized water immersion test equipment

The main function of this equipment is to detect whether the performance of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts meet the requirements through waterproof tests, so as to facilitate product design, improvement, verification and factory inspection.

Features of IPX8 pressurized water immersion test equipment:

1. All electronic components are imported from LG, Panasonic, Omron, Anliang and other brands.

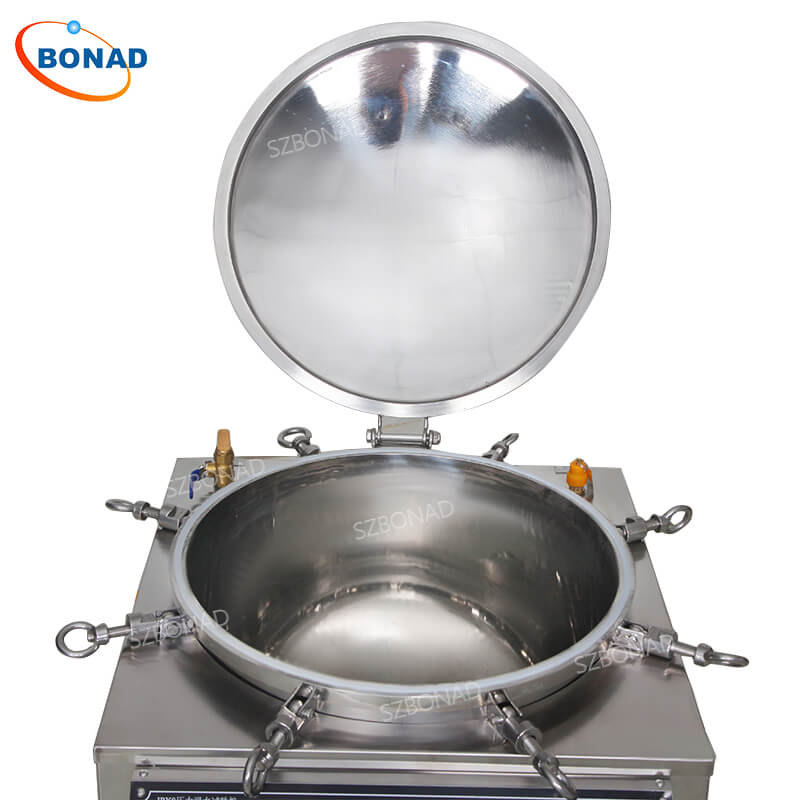

2. It has a time control function, and the setting time is 0-999 minutes. When the test time is reached, the pressurization can be automatically stopped, and the air in the tank can be automatically exhausted. The tester can open the lid to take out the test sample.

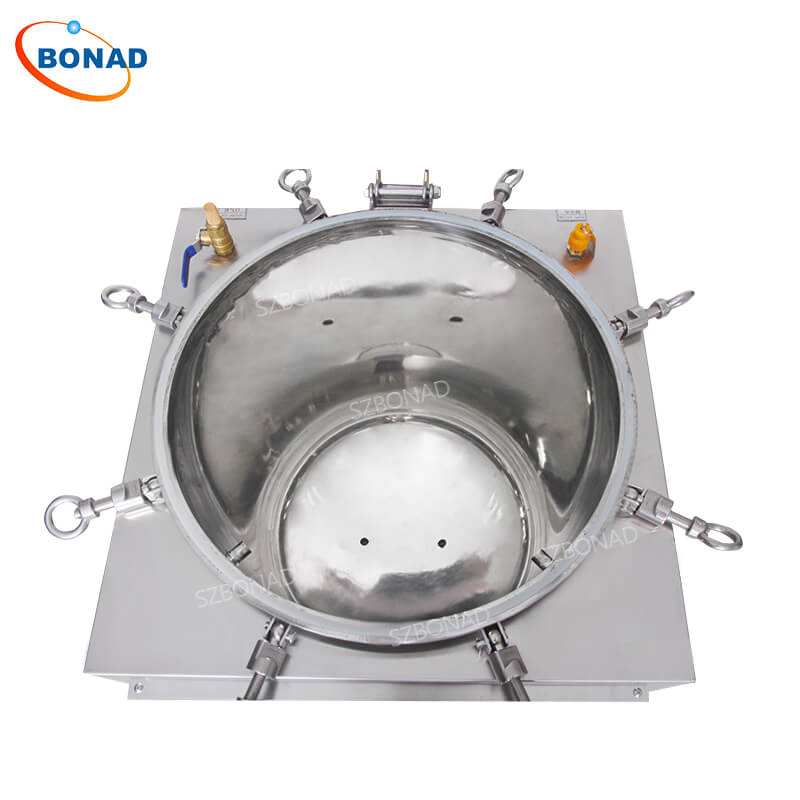

3. There are water inlet valves and drain valves at the bottom of the water tank, and a 5-meter water pipe is provided.

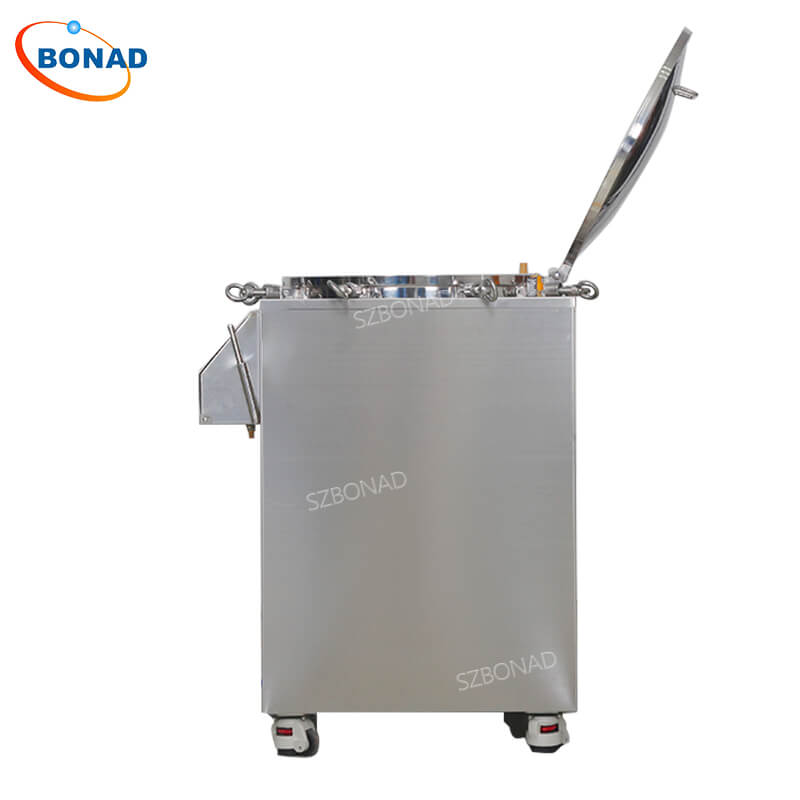

4. The base is equipped with four movable wheels with brakes for easy movement.
5. Manual testing machine—-Use the domestic famous brand “Hongqi” pressure gauge (diameter 100mm, accuracy 1.6 level) to intuitively display the pressure in the tank. During operation, the pressure regulator is manually adjusted to control the test pressure in the tank. The pressure regulator has a voltage stabilization function, and can always maintain a stable test pressure when adjusting the pressure.

IPX8 pressure water immersion test equipment technical parameters:
