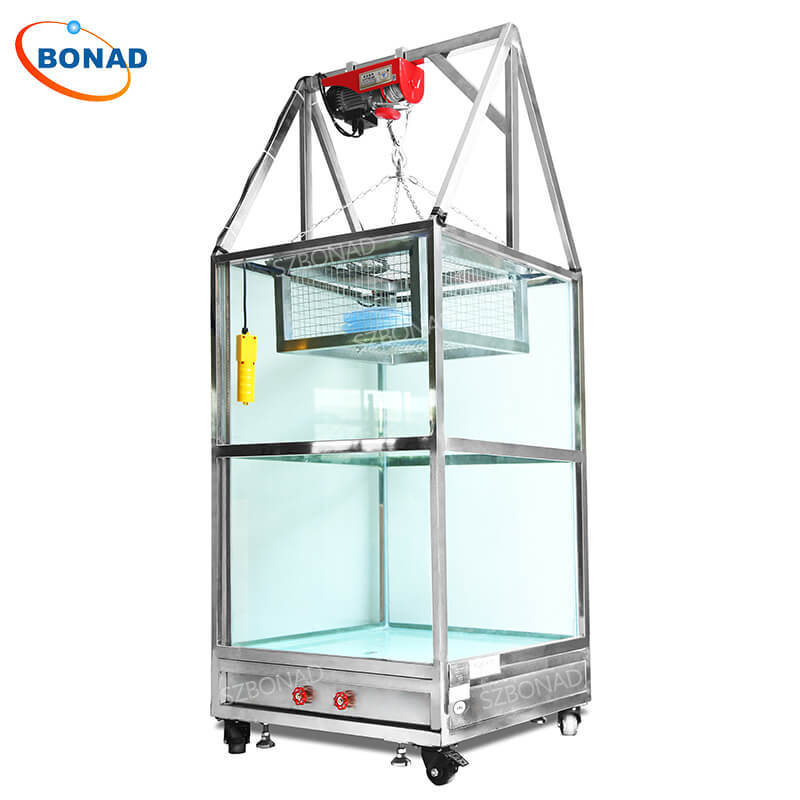

Water immersion electric lifting test equipment consists of a transparent water tank, a stainless steel frame and chassis, an electric hoist and a stainless steel sample basket. The equipment complies with IEC60529:1989+A1:1999, GB4208, GB7000. (IPX7) standards.
- The transparent water tank is made of thickened tempered glass, which is resistant to water pressure. Its maximum water depth is 1200MM, which meets the immersion test of most products. At the same time, we also provide customization to create a special water tank for your test product.
- The frame and chassis are made of 304 stainless steel, which is corrosion-resistant and can be used for a long time; and it has excellent pressure resistance and load-bearing capacity.

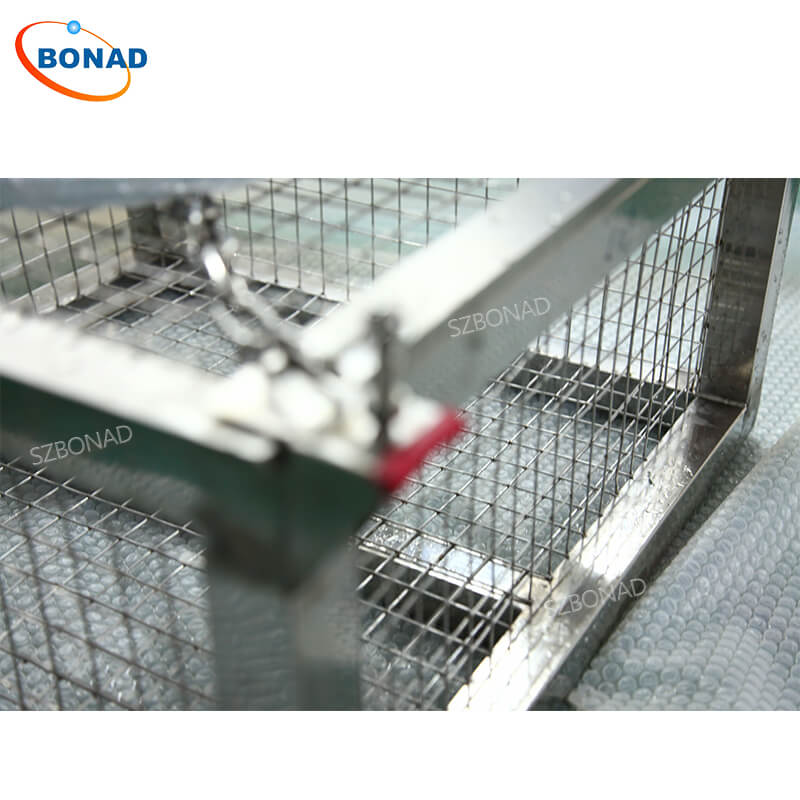

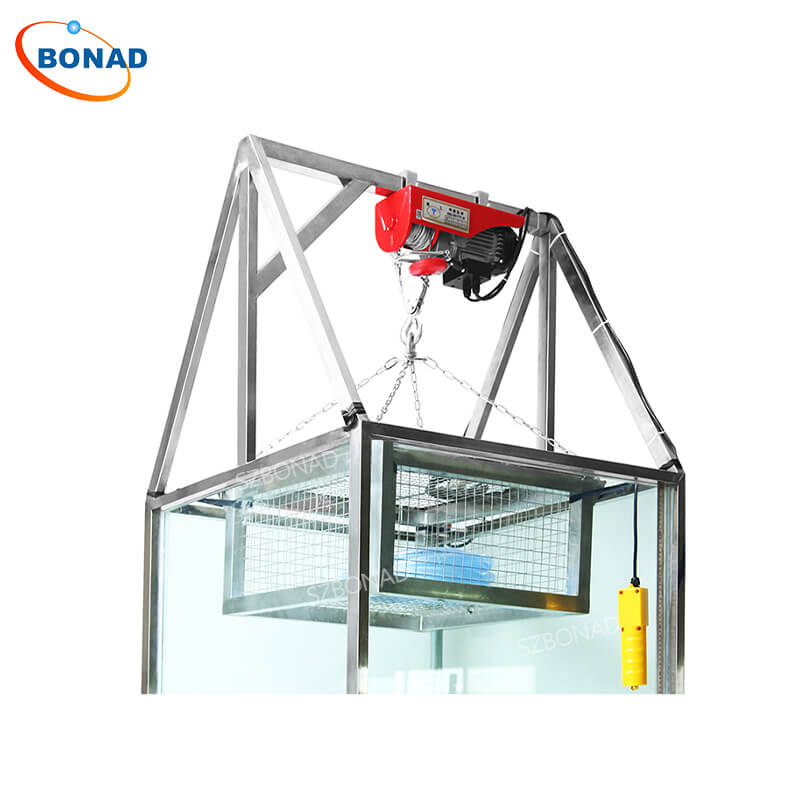

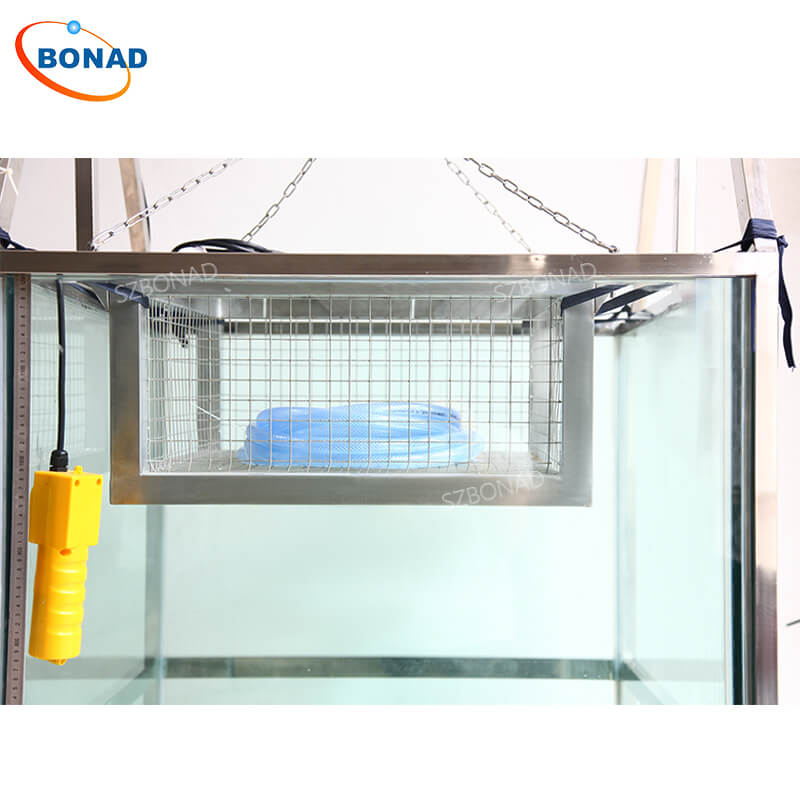

- The equipment is also equipped with an electric hoist, which can realize fully automatic lifting and lowering, and the stainless steel sample basket can also be customized.
Test equipment technical parameters:
| Model | BND-IPX7AS-432L | BND-IPX7AS-768L | BND-IPX7AS-1200L |
| inside the size (mm) | 600*600*1200 mm | 800*800*1200 mm | 1000*1000*1200 mm |
| External dimensions (mm) | 660*660*1400 mm | 860*860*1400 mm | 1060*1060*1400 mm |
| Tempered glass thickness (mm) | 12 | 12 | 15 |
| test the maximum depth (m) | 1.2m | ||
| water level adjustment | manually adjust | ||
| Water level display | Stainless steel ruler Visual (number of display 1mm) | ||
| frame material | stainless steel side pass | ||
| standards | IEC60529:1989+A1:1999、GB4208、GB7000.（IPX7) | ||
