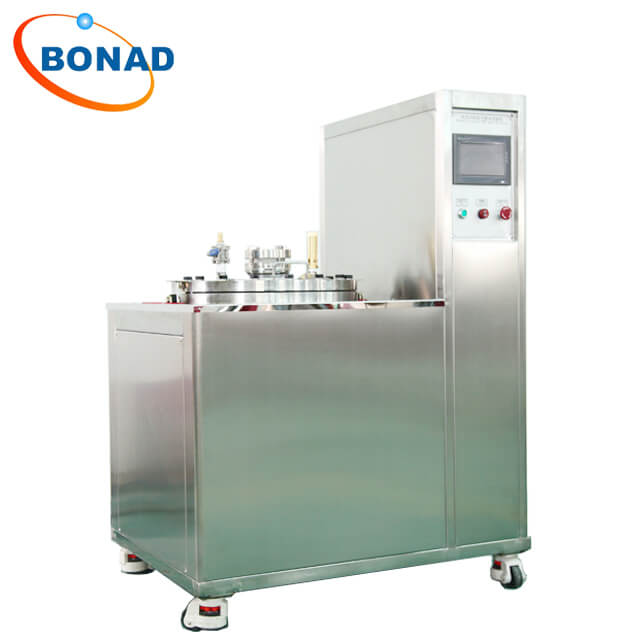

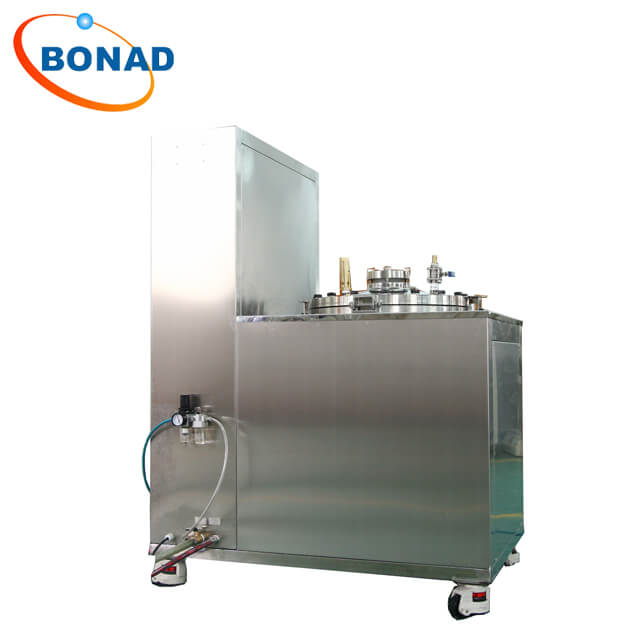

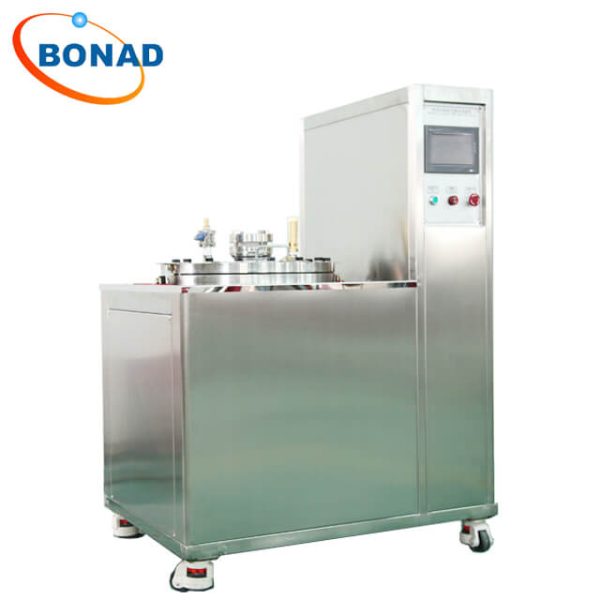

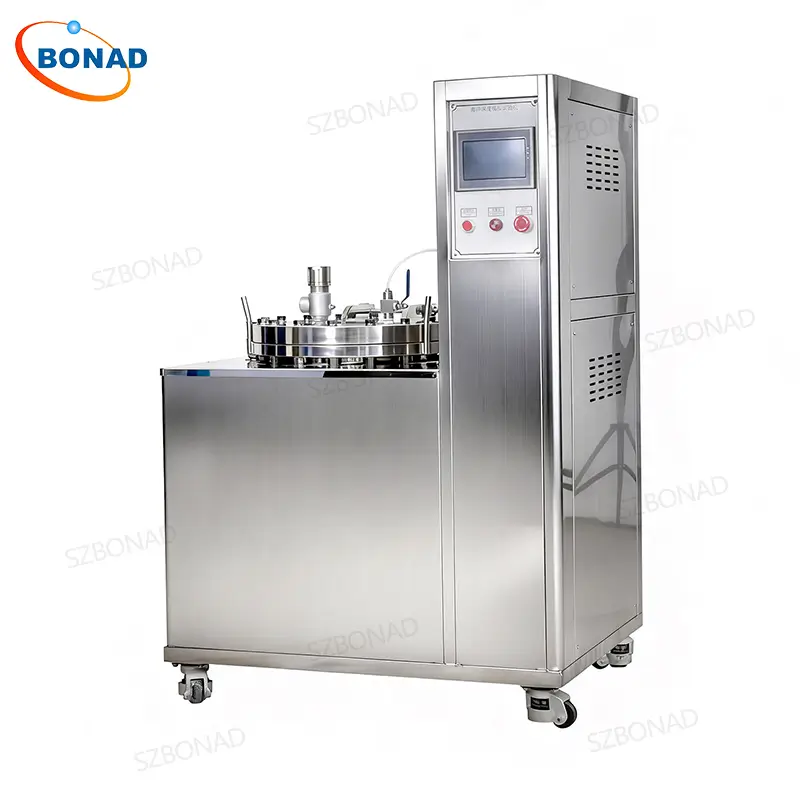

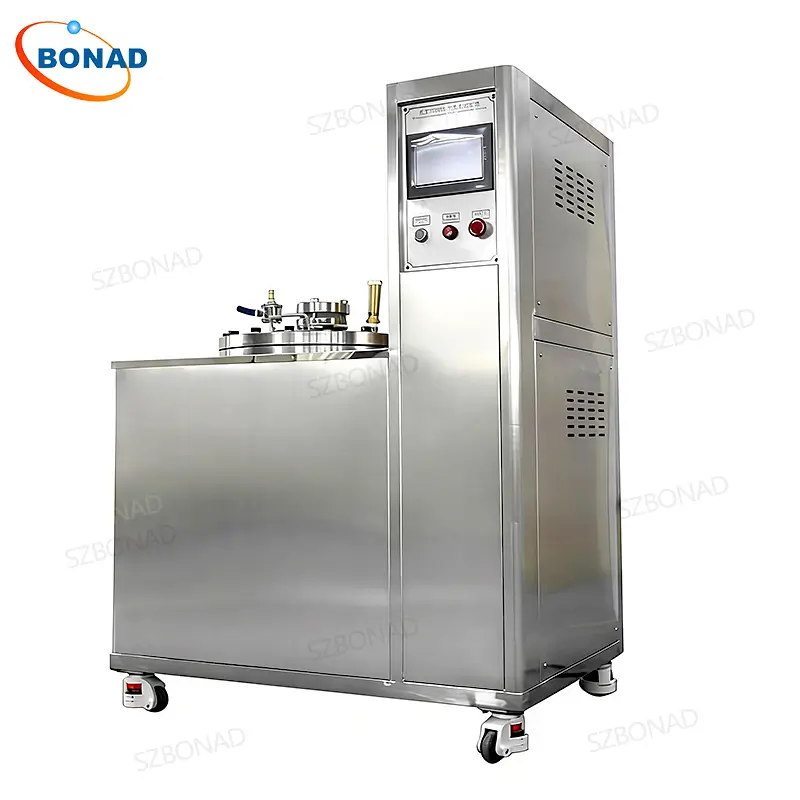

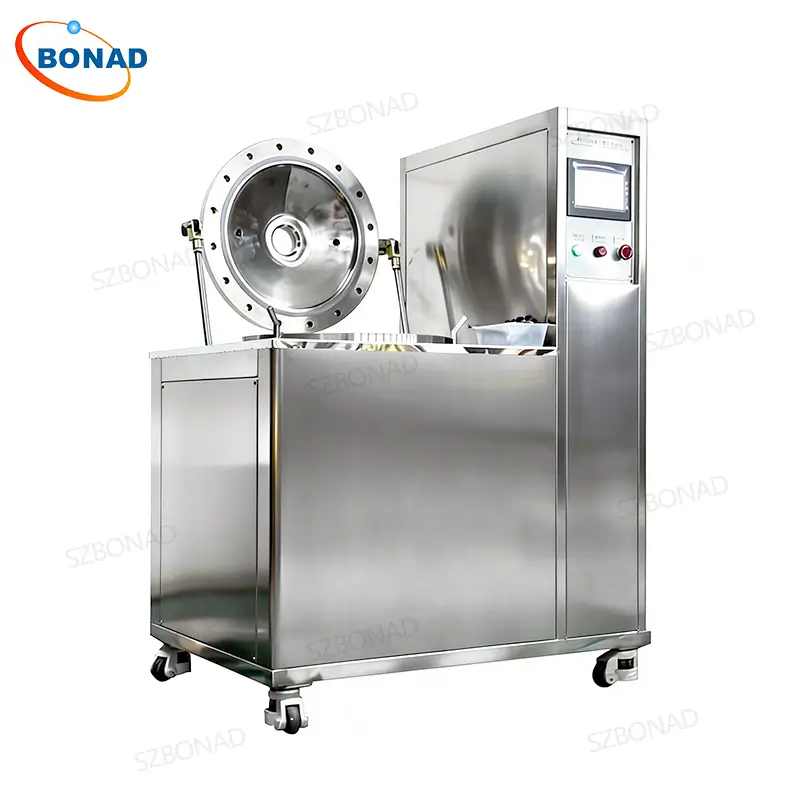

IEC 60529 Ocean Depth Simulation Test Machine – BONAD IP Waterproof Tester
Standard:
Conforms to IEC60529:1989 +A1:1999 +A2:2013 Degrees of protection provided by enclosures(IP Code).
Application:
Ocean depth simulation test machine is used for testing the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated marine environmental climatic conditions.
Features:
- The equipment is made of SUS304 stainless steel.

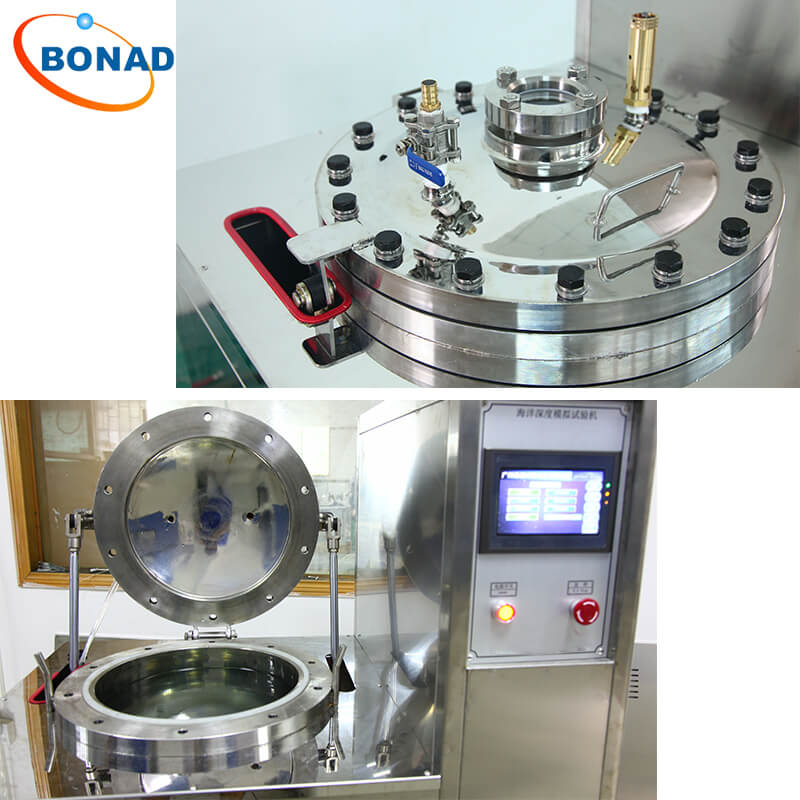

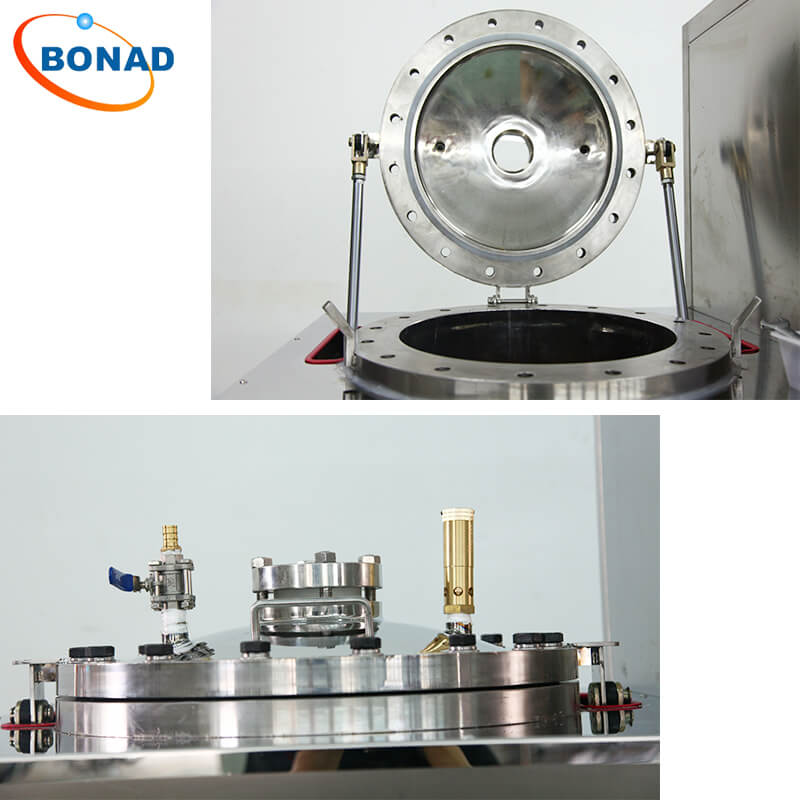

- The sealing ring adopts a special silicone tetrafluoroethylene rubber sealing ring, and a spare sealing ring is provided.
- All electronic control components are imported from brands such as LS, Panasonic, and Omron, and the touch screen uses a true color 7-inch screen.
- Touch screen control can record the test status, and can be equipped with a temperature control system to display and record the current pressure and water temperature.
- The pressurization method is water injection pressurization, and the test pressure can be simulated up to 120 meters. The equipment is equipped with a pressure relief valve (mechanical).
- The pressure sensor is used to detect the test pressure, which has a pressure stabilizing effect; if the pressure in the tank exceeds the specified pressure, the safety valve automatically opens to drain and release the pressure.
- It has an emergency stop operation key control (automatically releases pressure to 0m after pressing the emergency stop).
-
Supports two test modes, and users can choose according to test needs:
A.Standard test: The water pressure value and test time can be set directly. When the water pressure in the tank reaches this value, the timing test starts. An alarm prompts after the test.
B.Programmable test: 5 test modes can be set. Just select one mode and press the start button. Each mode can be divided into 5 consecutive test stages. The working time and pressure value can be set independently for each stage. (The number of cycle tests can be set in this mode).
- Test time setting unit: minutes.
Technical parameters:
| Device Model | BND-WFODS100 | BND-WFODS120 |
| External dimensions of equipment | About length 1300* width 850* height 1600mm | About length 1100* width 950* height 1200mm |
| Equipment size | Diameter 400*height 800mm | Diameter 500*height 500mm |
| Tank wall thickness | 8mm | 10mm |
| Tank material | stainless steel | |
| Flange thickness | 30mm | 25mm |
| Flange material | stainless steel | |
| equipment weight | About 200KG | About 250KG |
| Pressure control method | Automatic control (water injection and pressure method) | |
| Pressure setting unit | Meter | |
| control precision | ±2 meters (automatic) | ±1 meters (automatic) |
| Test water depth range | 5-100 meters | 0-120 meters |
| Pressure adjustment range | 0.05—1.0Mpa | 0—1.2Mpa |
| Safety valve discharge pressure | 1.1Mpa | 1.25Mpa |
| Maximum ultimate pressure | 1.2Mpa | 1.3Mpa |
| Test time setting range | 0-999 min | |
| protective device | Leakage switch, pressure safety valve protection, mechanical pressure relief valve, manual pressure relief switch, emergency stop button, multiple sets of modes can be set and stored, each set of modes can be set for 5 consecutive stages (time and pressure can be set) | |
| Control settings | Automatic control (water injection and pressure method) | |
| Voltage | 220V | |
| power | 1KW | |
