IP Waterproof Test Equipment

IEC 60529 IPX8 Full-View Pressure Immersion Test Machine with Power Supply

Brand: SZBONAD

Product Number: BND-IPX8PS

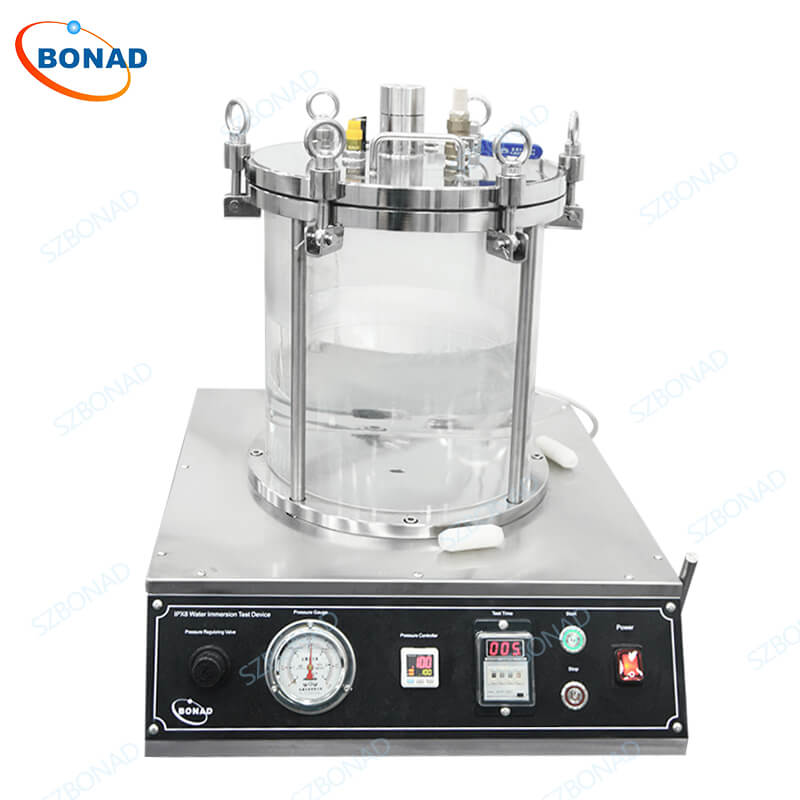

The IPX8 full-view pressure immersion test machine with power supply is designed in compliance with the IEC60529 standard. This advanced testing equipment is primarily used for conducting IPX8 pressure immersion tests on electronic and electrical products. The machine allows for the test sample to be powered on during testing, and features a plexiglass tank that enables real-time observation of the test conditions.

GET A QUOTE

IEC 60529 IPX8 Continuous Submersion Test Setup Supplier – BONAD

Application

The main function of this equipment is to test whether the performance of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts meets the requirements through pressurized waterproof test, so as to facilitate product design, improvement, verification and factory inspection.

Features

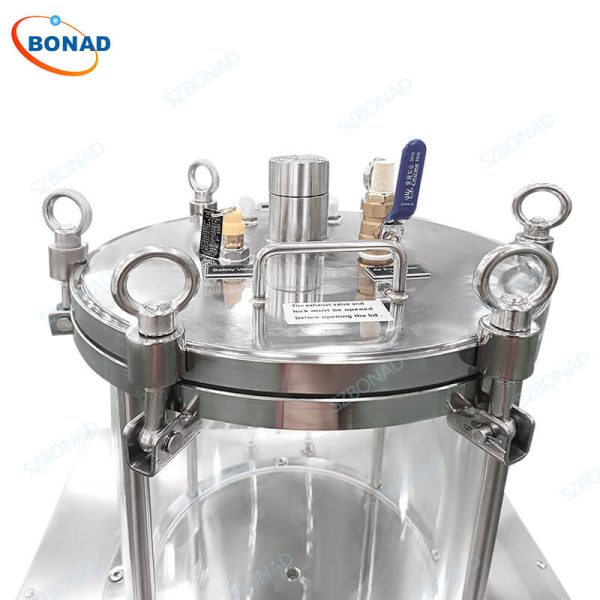

  1. Transparent Plexiglass Tank: The use of transparent plexiglass enhances bearing capacity and allows for easy observation of the test sample’s condition.
  2. Stainless Steel Chassis: The chassis is constructed from stainless steel, offering corrosion resistance, rust-proofing, and an aesthetically pleasing appearance. The user-friendly design includes a conveniently positioned upper cover and a 45-degree bevel mode button panel.
  3. Durable Silicone Seal Ring: A special silicone seal ring ensures elasticity without aging; one seal ring can last up to ten years.
  4. High-Quality Components: All electronic control components are sourced from reputable brands like LG, Panasonic, Omron, and Anliang. Pneumatic components are sourced from Taiwan’s original Airtek brand, ensuring longevity and reliability.
  5. Time Control Function: The machine features a time control function with settings ranging from 0 to 999 minutes. Upon reaching the set test time, the pressure supply automatically stops, air in the tank is discharged automatically, allowing the tester to open the tank cover and retrieve the sample.
  6. Automatic Testing: Equipped with an imported Panasonic brand “pressure sensor” for automatic control of tank pressure. It boasts a control accuracy of ±0.002Mpa and a display accuracy of 0.001Mpa.

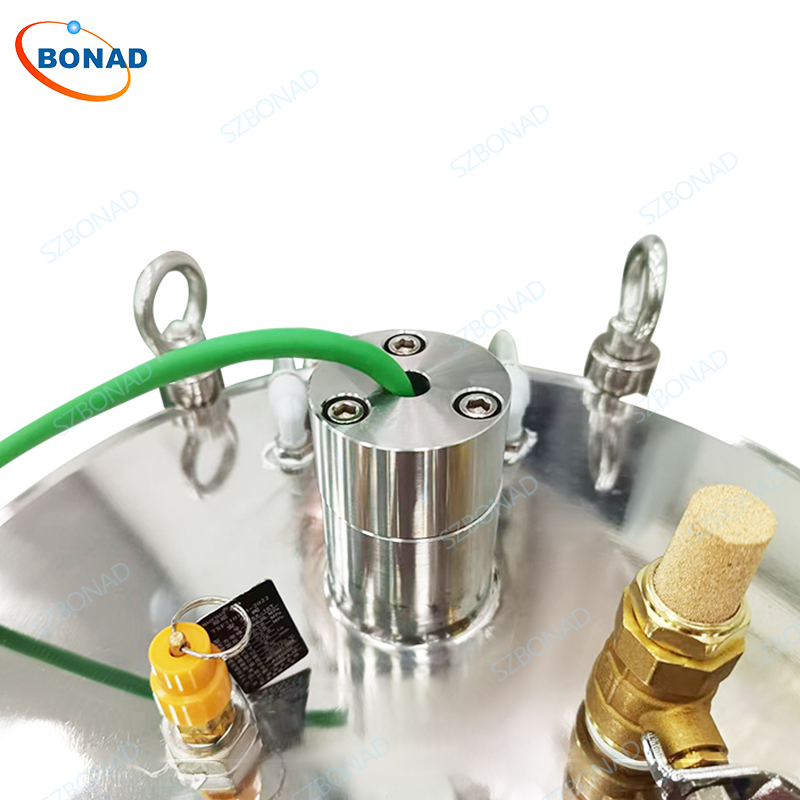

  7. Sample Testing: The test sample can be connected to the power supply for testing.

Technical parameters:

Name:IPX8 pressure BND-IPX8PS-30A-20L BND-IPX8PS-50A-20L BND-IPX8PS-50AS-20L BND-IPX8PS-100A-20L
Pressure control AUTO control AUTO control AUTO control

+heat 130℃

AUTO control
control accuracy ±0.002 Mpa(Auto) ±0.002Mpa(Auto) ±0.002 Mpa(Auto) ±0.002 Mpa(Auto)
Pressure adjustment range 0.00-0.3Mpa 0.00-0.5Mpa 0.00-0.5Mpa 0.00-1.0Mpa
Test water depth range 0-30M 0-50M 0-50M 0-100M
Exhaust Pressure of safety valve 0.35Mpa 0.55 Mpa 0.55 Mpa 1.05 Mpa
The maximum limit of pressure pressure 0.4Mpa 0.6Mpa 0.6Mpa 1.1Mpa
Accuracy 0.001Mpa 0.001Mpa 0.001Mpa 0.001Mpa
The thickness of the tank 3mm 4mm 6mm 6mm
thickness of flange 20mm 25mm 30mm 30mm
diameter of the tank 0.3M 0.3M 0.3M 0.3M
height of water level 0.3M 0.3M 0.3M 0.3M
Outer size 460*580*900mm 460*580*910mm 750*530*850mm 460*580*920mm
Material of tank SUS304#
Control time 0-999Min
Protection function pressure safety protection,anti creeping switch
voltage AC220V
Power (w) 100W 100W 3000W 100W
weight 60KG 80KG 100KG 100KG
Standard IEC60529:1989+A1:1999、GB4208-2008、GB7000.1(IPX8)
