Wall-mounted Type Drip Water Test Equipment Standard
In accordance with IEC 60529: 2001 “Degrees of protection provided by enclosures (IP Code)”
Product Introduction

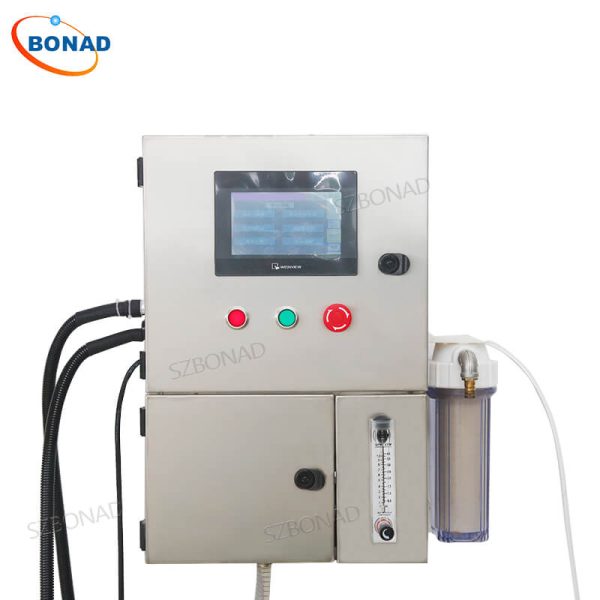

Wall-mounted IPX1 IPX2 test equipment is a cost-saving and spac-saving option for those who want to puchase more affordable equipment to conduct the waterproof testing for their products.
Appliance
IPX1 and IPX2 testing are part of the Ingress Protection (IP) code, which classifies and rates the degree of protection provided against the intrusion of solid objects and water into electrical enclosures and mechanical casings. The IP code is internationally recognized and defined in the IEC 60529 standard.
These tests are commonly applied to products such as outdoor electrical equipment, luminaires, and enclosures that need to demonstrate a degree of protection against water ingress according to international standards and regulations.
Technology parameter:
| No. | model | BND-IPX12C-800 | BND-IPX12C-1000 | BND-IPX12C-1200 |
| 1 | Drop of rain area | 800*800mm(can customize) | 1000*1000mm(can customize) | 1200*1200mm(can customize) |
| 2 | Equipment outer dimensions | L1000*D1000*H2500mm | L1200*D1200*H2500mm | L1450*D1450*H2600mm |
| 3 | Turntable diameter | ￠500 mm | ￠600 mm | ￠600 mm |
| 4 | Dripping aperture | ￠0.4mm | ||
| 5 | The distance between holes | 20*20 mm | ||
| 6 | Rainfall | 1-5mm/Min(±0.5mm/min) | ||
| 7 | Flow adjustment mode | manual setting | ||
| 8 | Drop of rain tank lifting height | 1000*1800 adjustable | ||
| 9 | Turntable bearing | 50KG | ||
| 10 | Turntable Speed | 1 r/min | ||
| 11 | Turntable Adjustable Incline | 0° or 15° | ||
| 12 | Turntable lifting range | Fixed | ||
| 13 | Testing time | 0-999 min | ||
| 14 | Protective device | Leakage, water shortage, short circuit | ||
| 15 | Power (V) | 220V | ||
| 16 | Power (KW) | 1 | ||
| 17 | Standards compliant | IEC60529（IPX1 IPX2) | ||
FAQ:
1.What is the main difference between IPX1 testing and IPX2 testing?
The primary distinction between IPX1 and IPX2 lies in the direction of water application. IPX1 tests for protection against vertically falling water drops, while IPX2 tests for protection against water droplets at an angle up to 15 degrees from the vertical. Both tests assess the ability of the enclosure or casing to resist water ingress and provide a degree of protection as specified in the IP code standard.
2.What does IPX2 waterproof mean?
IPX2 waterproof refers to the level of protection an object or device provides against water ingress from water droplets at an angle up to 15 degrees from the vertical direction. The “IP” in IPX2 stands for Ingress Protection, and the “2” indicates the specific level of protection against water.
3. Is your IPX1 IPX2 test equipment for both IPX1 and IPX2 testing?
Yes. Our product is for both IPX1 AND IPX2 testing. You could adjust the flow rate and tilt angle based on your aims.
4. What is your lead time for IPX1 IPX2 test equipment?
Around 25~30 working days.
5. Could you recommend me the right model for my product to be tested?
Yes. Send us the specifications, such as size, weight about your samples.
6. Are you able to provice OEM or ODM services?
Yes. Contact us for detail.
