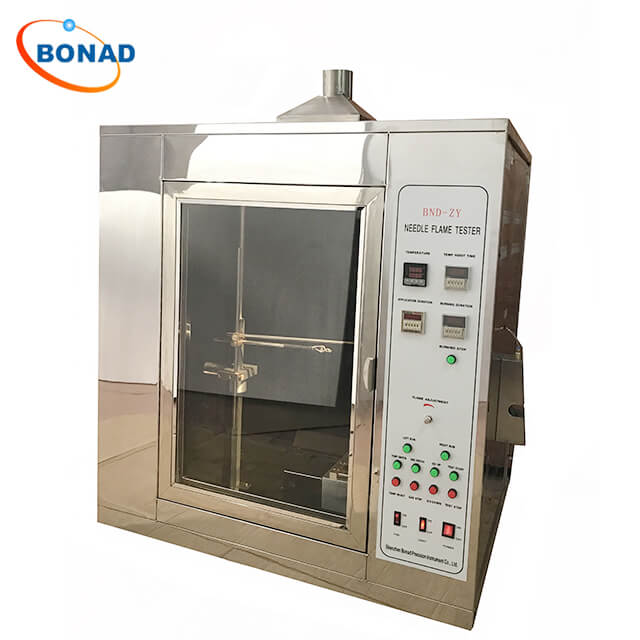

Introduction to the IEC 60695 Needle Flame Flammability Test Chamber
The IEC 60695 needle flame flammability test chamber is a crucial piece of equipment used in the evaluation of fire hazards associated with small flame ignition sources in electrical devices. Adhering to international standards such as IEC 60695-11-5 and IEC 60335-1 clause 30.2.3.2, this device simulates the conditions that may arise from faulty electrical equipment. By assessing whether materials ignite or measuring the duration and extent of burning, it provides vital insights into potential fire risks.
This testing apparatus is indispensable for manufacturers and safety professionals who need to ensure their products meet stringent safety requirements. The chamber’s ability to replicate real-world scenarios helps in identifying and mitigating fire hazards before they can cause harm. Understanding the functionality and importance of the needle flame flammability test chamber is essential for anyone involved in electrical product development and safety assurance.
Key Features and Operational Principles
The needle flame tester within the flammability test chamber utilizes a precisely sized needle burner (Φ0.9mm) to deliver a controlled flame at a consistent 45° angle. This specific design ensures accurate and repeatable results, which are critical for reliable testing. The burner uses butane gas, providing a stable and predictable flame source that closely mimics the small flames that can occur due to internal faults in electrical devices.
During the test, the sample material is exposed to the flame, and the ignition hazard is evaluated based on several key factors. These include whether the material ignites, the duration of any resulting combustion, and the length of the burn. This comprehensive assessment allows for a thorough understanding of how different materials react under potentially hazardous conditions. The data collected from these tests informs manufacturers about necessary improvements or modifications to enhance the fire safety of their products.
Applications and Importance in Electrical Safety Compliance
The IEC 60695 needle flame flammability test chamber plays a pivotal role in ensuring that electrical equipment meets international safety standards. By simulating the small flames that could result from internal faults, this testing apparatus helps identify potential fire hazards early in the product development cycle. Manufacturers rely on these tests to make informed decisions regarding material selection and design modifications, ultimately leading to safer end products.
Compliance with standards like IEC 60695-11-5 and IEC 60335-1 is not only a legal requirement but also a testament to a company’s commitment to safety. Utilizing the needle flame flammability test chamber ensures that electrical devices can withstand unexpected conditions without posing a significant fire risk. For industries where safety is paramount, investing in this testing equipment is an essential step toward protecting both consumers and property.
