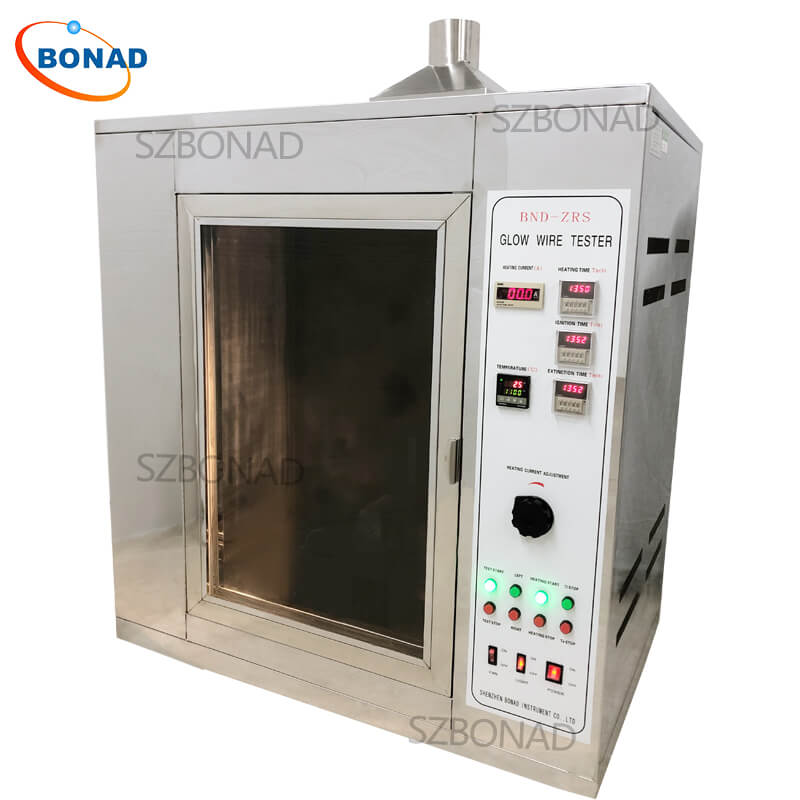

Introduction to the IEC 60695 Glow Wire Flammability Index Test Chamber
The IEC 60695 glow wire flammability index (GWFI) test chamber is a critical tool for evaluating the fire hazard risks associated with electrical and electronic products. Manufactured according to the IEC60695 series standard, this device meets the stringent requirements of multiple international standards, including IEC 60335 clause 30, IEC 60598, UL746A, and others. The primary function of this test chamber is to simulate the thermal stress caused by heating elements or heat sources, such as overload resistors or ignition sources, over a short period. This simulation helps assess the fire hazards posed by materials used in household appliances, electronic devices, and other electrical products.
The importance of the GWFI test cannot be overstated, especially in industries where fire safety is paramount. By conducting these tests, manufacturers can ensure that their products meet the necessary safety standards, reducing the risk of fire-related incidents. The glow wire flammability index test chamber plays a crucial role in determining the ignition properties, ignition temperature (GWIT), flammability, and flammability index (GWFI) of solid insulating materials and other solid combustible materials. This information is vital for assessing the fire resistance of components and ensuring that they are safe for use in various applications.
How the Glow Wire Flammability Index Test Chamber Works
The glow wire tester within the test chamber operates by heating a specific material—typically a Φ4 mm nickel-chromium wire (Ni80/Cr20)—to a predetermined test temperature ranging from 550°C to 960°C for one minute. This heating process is achieved using a large current, which simulates the conditions under which electrical components might experience excessive heat in real-world scenarios. Once the wire reaches the desired temperature, it is then brought into contact with the test sample at a specified pressure of 1.0N for 30 seconds.
During this time, the test chamber monitors whether the sample ignites or continues to burn after the removal of the heat source. The results of this test provide valuable insights into the fire hazard potential of the tested material. For instance, if the sample or bedding ignites, it indicates a higher risk of fire, while a shorter burning time suggests better fire resistance. These findings are essential for determining the flammability index of the material, which is a key factor in assessing its suitability for use in electrical and electronic products.
Moreover, the glow wire flammability index test chamber can also be used for combustion tests without a flame ignition source. This capability allows manufacturers to evaluate the starting temperature and flammability index of related heating wires, further enhancing the safety assessment of their products. The comprehensive nature of this testing process ensures that manufacturers can confidently release products that meet or exceed international safety standards.
Benefits and Applications of the IEC 60695 Test Chamber
The IEC 60695 glow wire flammability index test chamber offers numerous benefits to manufacturers and safety engineers. One of the most significant advantages is its ability to comply with multiple international standards, ensuring that products are not only safe but also marketable across different regions. By adhering to these standards, manufacturers can avoid costly recalls and legal issues related to non-compliance.
In addition to compliance, the test chamber provides detailed insights into the fire performance of materials, enabling manufacturers to make informed decisions about product design and material selection. For example, if a particular material fails the GWFI test, manufacturers can explore alternative options that offer better fire resistance. This proactive approach can lead to the development of safer, more reliable products that meet consumer expectations and regulatory requirements.
The applications of the glow wire flammability index test chamber extend beyond just electrical and electronic products. It is also widely used in the testing of household appliances, automotive components, and construction materials. In each of these industries, the ability to accurately assess fire hazards is critical for ensuring public safety. By investing in an IEC 60695 test chamber, companies can enhance their product development processes, improve safety standards, and ultimately protect consumers from potential fire-related risks.
