DIN VDE0620-1 Standards Plugs and Socket-Outlets Gauges Measuring Tool

7006-27F-1
Go gauge for E14 caps on finished lamps
Purpose: To check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.
Testing: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X. “

DIN VDE0620-1 Standards Plugs and Socket-outlets Gauges Measuring Tool

Application:

BONAD offers a wide range of gauge to meet the most common standards including those from IEC ,EN,UL,GB,DIN,VDE and the others , Such standards require the checking of size &definition etc. These gauge are constructed from senior stainless steel and appropriate steel with a hardness of at least 60 HRC and roughness according require to standard require. Each gauge is supplied with a certificate of calibration.

Germany plug and socket gauge is strictly designed and manufactured according to the relevant standard requirements of VDE0620-1:2010.

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to VDE0620-1:2010 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

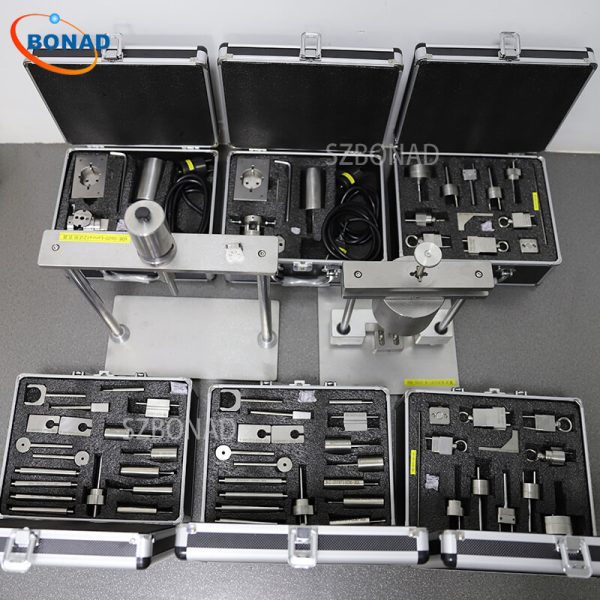

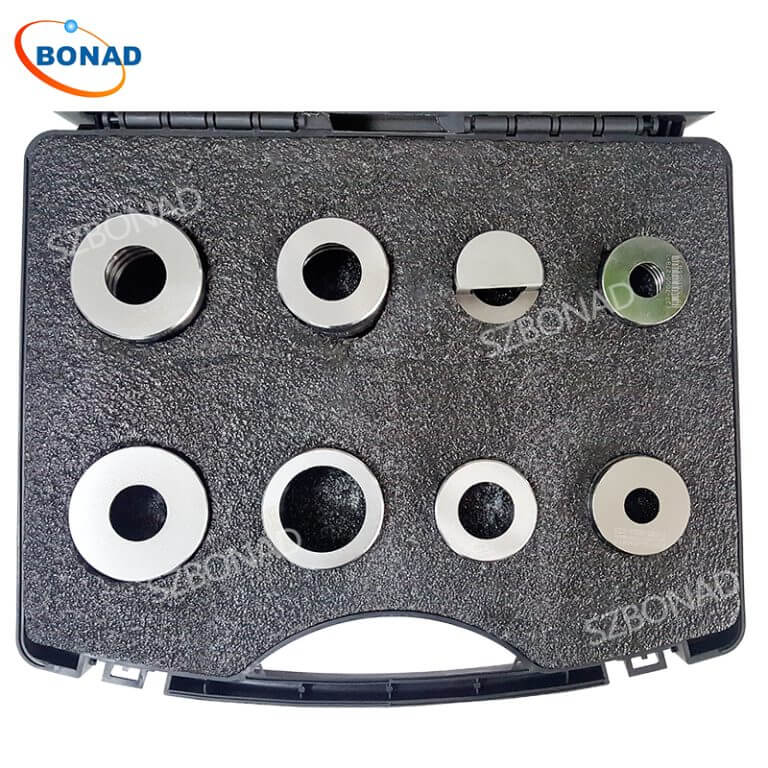

VDE DIN 0620-1 Gauges List:

No.	STANDARD	Quantity
1	DIN-VDE0620-1-Lehre1	3pcs
2	DIN-VDE0620-1-Lehre2A.B	2pcs
3	DIN-VDE0620-1-Lehre3	1pc
4	DIN-VDE0620-1-Lehre4	1pc
5	DIN-VDE0620-1-Lehre5	4pcs
6	DIN-VDE0620-1-Lehre6A	2pcs
7	DIN-VDE0620-1-Lehre6B	2pcs
8	DIN-VDE0620-1-Lehre7A.B	2pcs
9	DIN-VDE0620-1-Lehre8	1pcs
10	DIN-VDE0620-1-Lehre9	1pcs
11	DIN-VDE0620-1-Lehre10-A	1pcs
12	DIN-VDE0620-1-Lehre10-B	1pc
13	DIN-VDE0620-1-Lehre11	1pc
14	DIN-VDE0620-1-Lehre12	4pcs
15	DIN-VDE0620-1-Lehre13	1pc
16	DIN-VDE0620-1-Lehre14	1pc
17	DIN-VDE0620-1-Lehre15	1pc

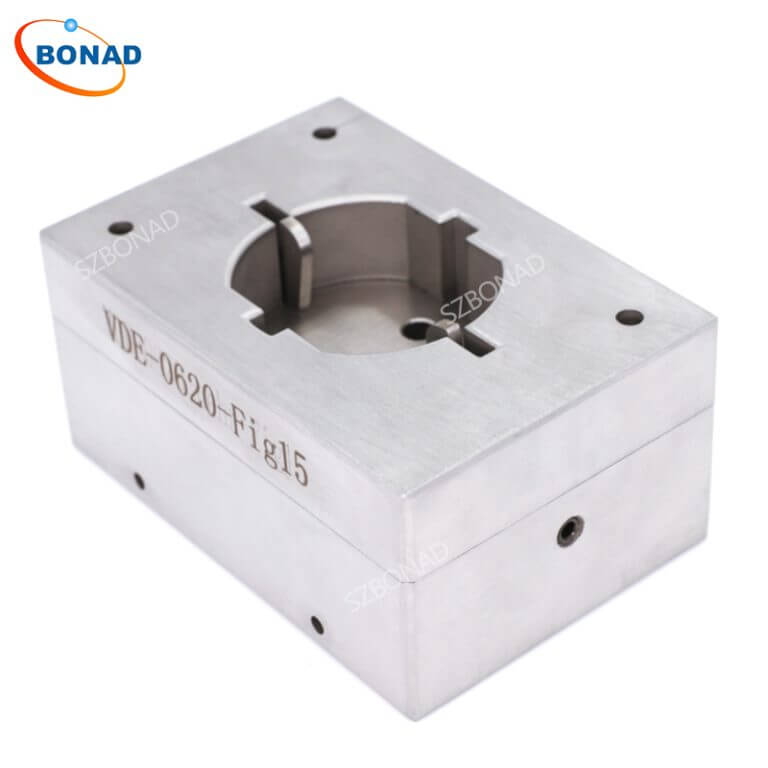

18	DIN-VDE0620-1-Fig15	1pc
19	DIN-VDE0620-1-Lehre16a	1pc
20	DIN-VDE0620-1-Lehre16d	1pc
21	DIN-VDE0620-1-Lehre17	1pc
22	DIN-VDE0620-1-Lehre18	1pc
23	DIN-VDE0620-1-49440-L1	1pc
24	DIN-VDE0620-1-49440-L2	1pc
25	DIN-VDE0620-1-49440-L1-L2	3pcs
26	DIN-VDE0620-1-Bild15	1set
27	DIN-VDE0620-1-Bild14	1pc
28	DIN-VDE0620-1-Bild43	2pcs
29	DIN-VDE0620-1-Lehre16e	1pc
30	DIN-VDE0620-1-Lehre19a	1pc
31	DIN-VDE0620-1-Lehre19b	1pc
32	DIN-VDE0620-1-Bild16a	1pc
33	DIN-VDE0620-1-Bild16d	1pc
