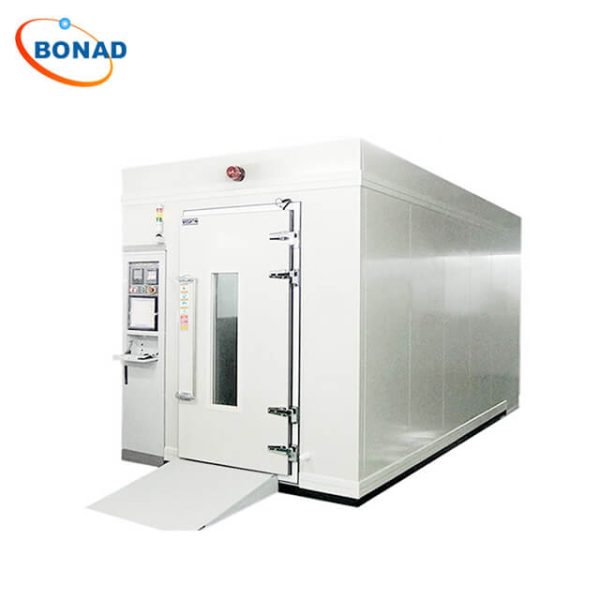

Walk-In Constant Temperature and Humidity Environmental Test Chamber
Test chamber composition:
- Heating system: Generally, electric heating tubes are used for heating, and the temperature is controlled by adjusting the power supply voltage.
- Refrigeration system: It is composed of components such as compressors, condensers, and evaporators. The refrigerant circulates to remove heat to reduce the temperature in the chamber.
- Humidification system: Usually a water tank or steam generator is used to generate water vapor (which can be customized) to increase the relative humidity in the test chamber.
- Control system: It consists of an intelligent controller or a computer control system to monitor and adjust the temperature and humidity of the test chamber.
Performance:
- Temperature and humidity range: It can operate stably under a wide range of temperature and humidity conditions to meet different test requirements.
- Temperature fluctuation and uniformity: The temperature fluctuation is small and the temperature uniformity in the box is good.
- Humidity control: The relative humidity control has high accuracy to ensure the accuracy of the test results.
- Easy operation: User-friendly operation interface, simple and easy-to-understand operation process.
- Durability: The structure is strong, the durability is strong, and it can operate without trouble for a long time.
Technical parameters:
| volume | Inner size（W×H×D） | Temp. range | Model |
|
8 M3 |
2000×2000×2000（mm） |
0℃～+85℃ | BND-WSF-8-0 |
| -10℃～+85℃ | BND-WSF-8-10 | ||
| -20℃～+85℃ | BND-WSF-8-20 | ||
| -40℃～+85℃ | BND-WSF-8-40 | ||
| -55℃～+85℃ | BND-WSF-8-55 | ||
| -65℃～+85℃ | BND-WSF-8-65 | ||
|
16 M3 |
4000×2000×2000（mm） |
0℃～+85℃ | BND-WSF-16-0 |
| -10℃～+85℃ | BND-WSF-16-10 | ||
| -20℃～+85℃ | BND-WSF-16-20 | ||
| -40℃～+85℃ | BND-WSF-16-40 | ||
| -55℃～+85℃ | BND-WSF-16-55 | ||
| -65℃～+85℃ | BND-WSF-16-65 | ||
|
24 M3 |
4000×2000×3000（mm） |
0℃～+85℃ | BND-WSF-24-0 |
| -10℃～+85℃ | BND-WSF-24-10 | ||
| -20℃～+85℃ | BND-WSF-24-20 | ||
| -40℃～+85℃ | BND-WSF-24-40 | ||
| -55℃～+85℃ | BND-WSF-24-55 | ||
| -65℃～+85℃ | BND-WSF-24-65 | ||
|
30 M3 |
5000×2000×3000（mm） |
0℃～+85℃ | BND-WSF-30-0 |
| -10℃～+85℃ | BND-WSF-30-10 | ||
| -20℃～+85℃ | BND-WSF-30-20 | ||
| -40℃～+85℃ | BND-WSF-30-40 | ||
| -55℃～+85℃ | BND-WSF-30-55 | ||
| -65℃～+85℃ | BND-WSF-30-65 | ||
|
48 M3 |
6000×2000×4000（mm） |
0℃～+85℃ | BND-WSF-48-0 |
| -10℃～+85℃ | BND-WSF-48-10 | ||
| -20℃～+85℃ | BND-WSF-48-20 | ||
| -40℃～+85℃ | BND-WSF-48-40 | ||
| -55℃～+85℃ | BND-WSF-48-55 | ||
| -65℃～+85℃ | BND-WSF-48-65 | ||
| accuracy | Temp. | ±0.01℃ | |
| Humidity | ±0.1%R.H | ||
| fluctuation | Temp. | ±0.5℃ | |
| Humidity | ±2.0%R.H. | ||
| uniform | Temp. | ±2.0℃ | |
| Humidity | ±3%R.H. | ||
| Humidity range | 30%RH～95%RH | ||
| Temp. Rate | Average 1.5℃/min（Non-linear, no-load）； | ||
| cooling rate | Average 0.7℃/min（Non-linear, no-load ）； | ||
| Inner material | SUS 304 mirror finished stainless steel | ||
| Outer material | Cold storage plate advanced spraying treatment | ||
| Power apply | AC three phase five wire 380V 50HZ | ||
| refrigerating system | The original imported compressor（tecumseh、bezer、），Environmental protection refrigerant R404A and R23, fin plate condenser cooling evaporator | ||
| control system | Intelligent programmable touch screen temperature and humidity controller（TEMI880 or OYO8256） | ||
| protector | No fuse switch, high pressure compressor, overheated, over-current protection, overtemperature protection, overload protection, fan fuse, dry protector, water alarm | ||
| standard configuration | Shelf 2 sets, 1 observation window, test hole 1, humidification barrels of 1, 5 pieces of test wet cloth | ||
| online software | 232 or 485 interface online, with the software CD and 1 set of connection cable, USB interface is optional | ||
