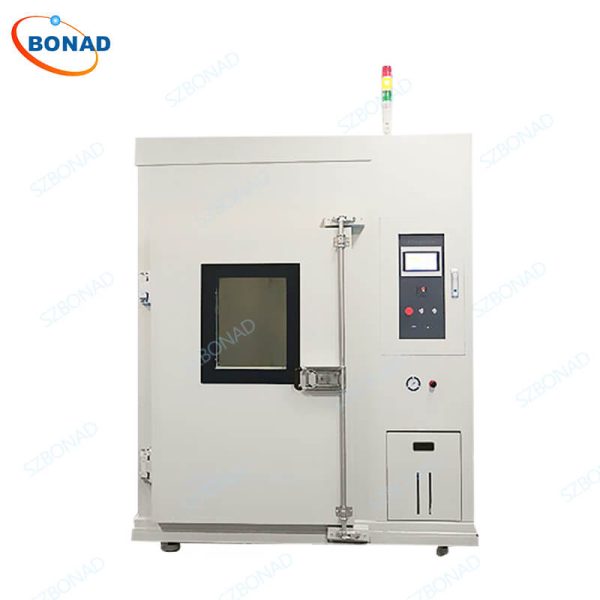

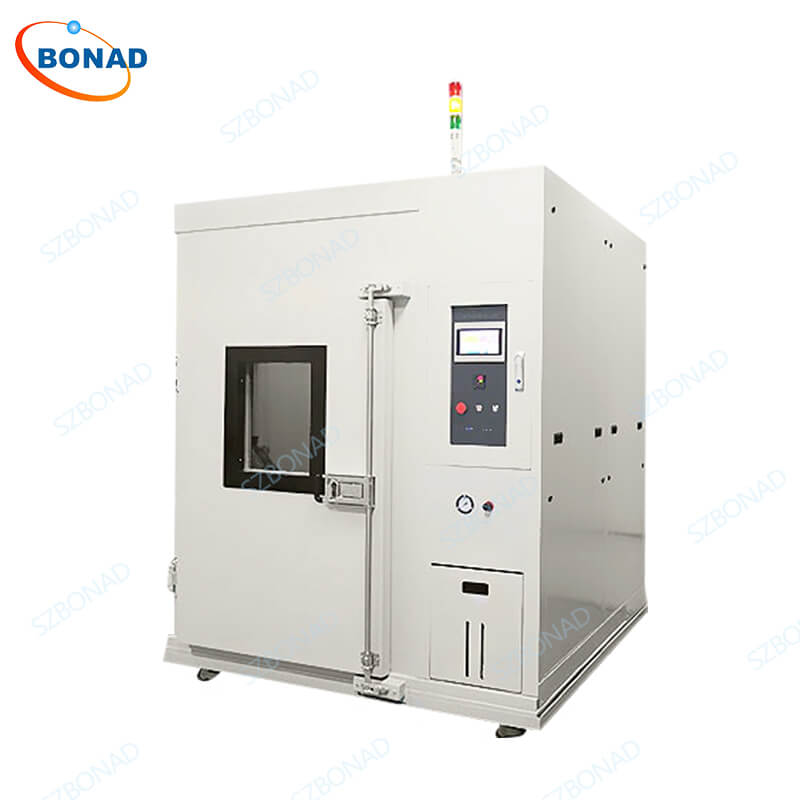

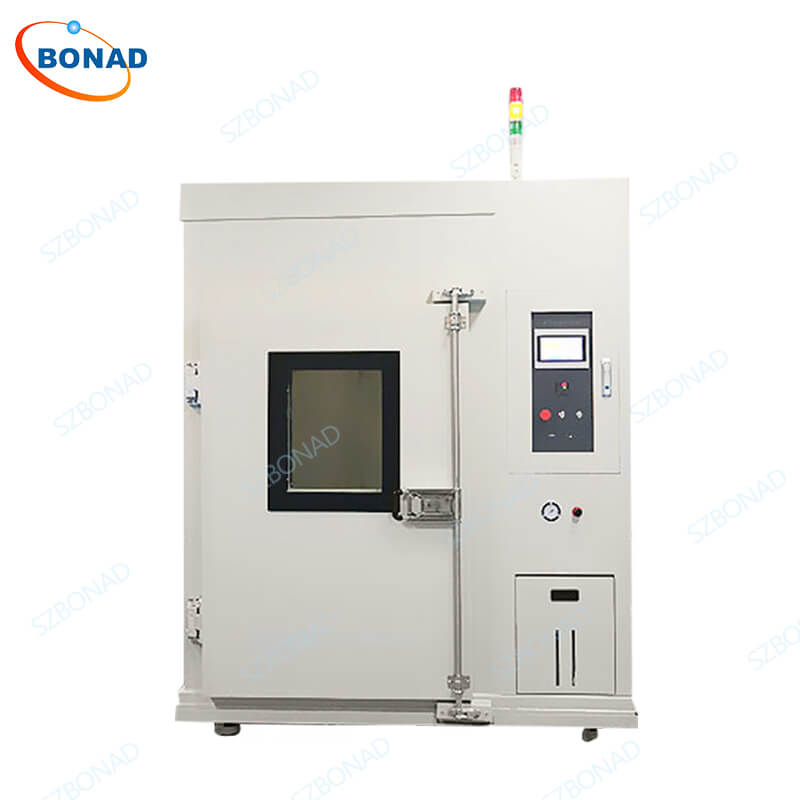

Walk-In Composite Salt Spray Test Chamber – BONAD Environmental Testing Equipment
Standards:
IEC 60068, ASTM B117-08, ISO 9227, ISO14993-2001
Application:
The walk-in composite salt spray test chamber is widely used in hardware, electroplating, electronics, chemicals, automobiles, aviation, aerospace, communications and other industries. It conducts corrosion tests on the materials and coatings of products in simulated marine environments, so as to analyze and evaluate the performance of the test products under specific environmental conditions.
Features:
1. The refrigeration system and the spray system of the salt spray test chamber are separated, including anti-corrosion refrigeration components and touch control systems.
2. The double-door design is conducive to placing large samples.
3. The door handle switch has no response, and the sealing strip is dry.
4. Adopt inverted trapezoidal inner box design.
5. Thermally stable, high-performance salt spray atomizing nozzle.
6. Precision salt spray collection device.
7. Automatic exhaust device linked with top cover.
8. Self-developed programmable controller interface.
9. Can be customized according to test requirements.
Technical parameters:
| Internal Dimensions (mm) (WDH) | 2000 * 2500 * 2000 | 2500 * 3000 * 2000 | 2000 * 4000 * 2500 |
| External Dimensions (mm) (WDH) | 2300 * 3700 * 3300 | 2800 * 4300 * 3300 | 2300 * 5400 * 3800 |
| Working Volume | 10 Cubic Meters | 15 Cubic Meters | 20 Cubic Meters |
| Base Load Capacity | ≤ 2 Tons | ≤ 2 Tons | ≤ 3 Tons |
| Using 100# Channel Steel Bracket for load support, with 10 fixed 316 Stainless Steel support cups fixed to the ground. | |||
| 316 Stainless Steel Parts | Inner Chamber: Made of 316 Stainless Steel (including screws, hardware, guide rails, fans, etc., all processed from 316 stainless steel). | ||
| Titanium Alloy Parts | Air Vents (Louvers), Water Tank, Salt Spray Heater (Water Box + Heating Element). | ||
| Evaporator | Custom-made for corrosion resistance. | ||
| Cooling Method | Air Cooling / Water Cooling (select based on actual conditions). | ||
| Temperature and Humidity Range | Humidity Range: 25%~98% RH (adjustable); Temperature Range: 15~85°C (adjustable). | ||
| Temperature Fluctuation/Uniformity | ±2°C (under no load conditions). | ||
| Temperature Deviation/ Overshoot | Temperature Deviation: ±2°C; Temperature Overshoot: ≤ 2°C. | ||
| Heating and Cooling Rate | ≥1°C/min, average non-linear throughout the process. | ||
| Salt Spray Deposition Rate | 1~3 ml/80cm²·h (adjustable). | ||
| Spray Method | Airflow spray type, continuous/pulse selectable. | ||
| Salt Spray Deposition Direction | Free settling. | ||
| Sub-Mother Vehicle | Made of 316 Stainless Steel, convenient for loading and unloading large samples. | ||
| Chamber Structure | Outer Chamber Material: Salt-resistant Steel Plate + PVC Anti-corrosion Spray; Inner Chamber Material: 316 Stainless Steel; Middle Layer: 100mm Polyurethane Foam Insulation Layer; Side of the Chamber has pressure relief vent, power failure protection, over-temperature protection, explosion-proof safety door, explosion-proof window, etc. No fire-spraying system on top. | ||
| Additional Features | Includes air circulation system, refrigeration system, dehumidification system, and humidification system; temperature and humidity are controllable. | ||
| Optional Accessories | Explosion-proof door + explosion-proof window + explosion-proof chain + pressure relief port + top spray (optional for battery and energy storage industries). | ||
