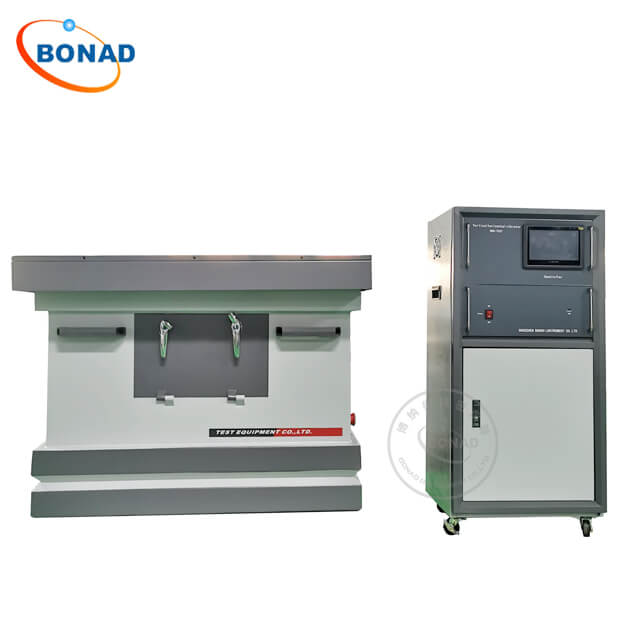

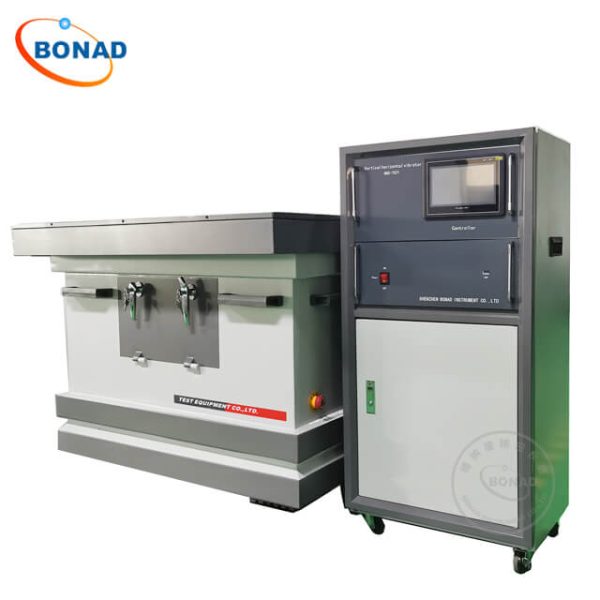

Vertical and Horizontal Electromagnetic Vibration Impact Testing Machine

Vertical and Horizontal Electromagnetic Vibration Impact Testing Machine

Main component:

1. Vibration table – used to support the object under test and apply vibration.
2. Vibrator – a device that can generate vibration signals.
3. Control system – used to control the vibrator, generate vibration signals and control the movement of the vibration table.
4. Data acquisition system – a device used to collect vibration test data, which can record the response information of the object under test in a vibration environment.

Application:

1. Aerospace – In the field of aerospace, vibration testers are used to test the structural strength and durability of spacecraft.
2. Automotive industry – In the automotive industry, vibration testers are used to test the reliability and durability of automotive parts in a vibration environment.
3. Electronics industry – In the electronics industry, vibration testers are used to test the reliability of electronic equipment during transportation and use.
4. Mechanical industry – In the mechanical industry, vibration testers are used to test the reliability and durability of mechanical equipment in a vibration environment.

Technical Parameter:

1. Function: sine wave, frequency modulation, frequency sweep, programmable, amplitude modulation, maximum acceleration, time control,
2. The working table size is about :
   A.1000*1000 MM.
   B.The size of the table is 1000*1000*900MM.
   C.Control cabinet size: 500*380*1350MM.
3. Vibration direction: vertical level (vertical horizontal cyclic vibration, no need to separate in one direction, easy to operate and improve work efficiency)
4. Test maximum load (kg): 100
5. It can meet the load of 100Kg of the tested object of the customer, and does not need to move the product to complete the vertical horizontal cyclic vibration test.
6. 6. FM function: any frequency sweep in the frequency range
7. 7. sweep function (Hz): (upper frequency / lower frequency / time range) can be set to sweep back and forth
8. Sweep rate: frequency change speed can be set
9. 9. programmable function (Hz): 30 segments can be set arbitrarily (frequency / time) can be cycled
10. 10. programmable color touch control system: can display vibration frequency / curve / date time / segment / mode / programming interface, and automatically store test data output through the U disk print or long-term storage. (not equipped with a printer)
11. 11. vibration frequency range: 5-55HZ adjustable
12. 12. the maximum amplitude (adjustable range mmp-p) 0-5MM
13. 13. amplitude modulation mode: gear amplitude modulation
14. 14. the maximum acceleration: 10 G
15. 1 time control: any time can be set (seconds)
16. 1 power supply voltage (V): 380 ± 10%
17. 1 vibration machine power (KW): 4.2
