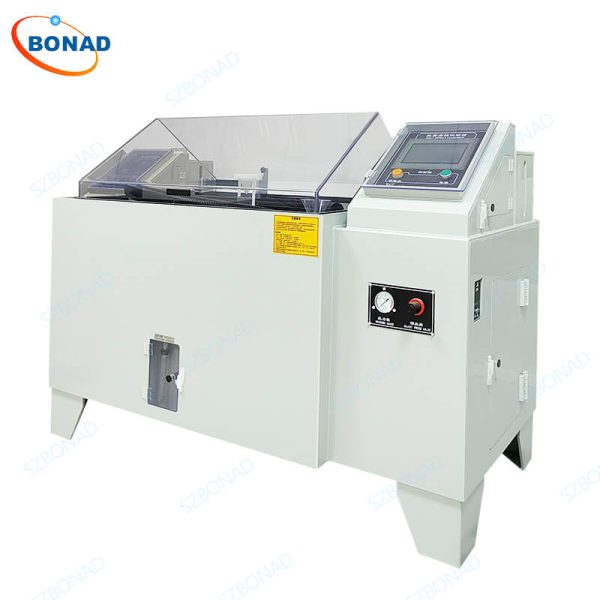

Touch Screen Controlled Salt Spray Corrosion Test Chamber – BONAD Environmental Testing Equipment
Standards:
Our test chambers conform to international standards, including:
- ASTM B117
- ISO 9227
- JIS Z 2371
- Neutral Salt Spray Test (NSS Test)
- Acetic Acid Salt Spray Test (AASS Test)
Application:
Touch screen controlled salt spray corrosion test chamber is widely used in salt spray corrosion tests of electroplating layers such as electronics, electrical, automobile, motorcycle, hardware tools, medical equipment, motor vehicle parts, FPC soft boards, etc.
Features:
- Automatic or Manual Water Adding System: Automatically adds water when levels are low, enhancing convenience.
- Precision Glass Nozzle: Ensures good uniformity with natural droplets, avoiding NaCl crystal formation.
- Double Overheat Protection: Equipped with a water shortage alarm for user safety.
- Digital Thermostat with PID Control: Offers high precision temperature control to ±0.1℃.
- Direct Laboratory Steam Heating: Promotes uniform heating and reduces standby time.
- Conical Spray Tower Design: Delivers uniformly dispersed droplets.
- Customizable: Tailor-made solutions are available to meet specific testing requirements.
Technical parameters:
| Specification | Value |
|---|---|
| Working Size | 90 × 60 × 50 cm |
| Appearance Size | 145 × 85 × 111 cm |
| Volume (L) | 270 L |
| Power Supply | AC 220V |
| Equipment Power | 2.5 KW |
| Opening Method | Manual Opening |
| Laboratory Temperature Range | RT + 5℃ ~ 60℃ |
| Pressure Barrel Temperature Range | RT + 5℃ ~ 70℃ |
| Temperature Uniformity | ±1℃ |
| Temperature Fluctuation | ±0.5℃ |
| Salt Spray Deposition | 1 ~ 2 ml/h·80 cm² |
| Spray Pressure | 1.00 ± 0.01 kgf/cm² |
| Spray Method | Continuous Spray + Intermittent Spray |
Why Choose Us?
Our touch screen controlled salt spray corrosion test chambers are meticulously engineered to meet and exceed industry standards, providing reliable and consistent results for your testing needs. With advanced features aimed at enhancing efficiency, safety, and precision, our chambers are your perfect partner in quality assurance.
Tips: Comparison of salt spray corrosion test and natural environment corrosion
NSS neutral salt spray test 24h≈1 year in natural environment;
AASS acetate spray test 24h≈3 years in natural environment;
CASS copper salt accelerated acetate spray test 24h≈8 years in natural environment.
