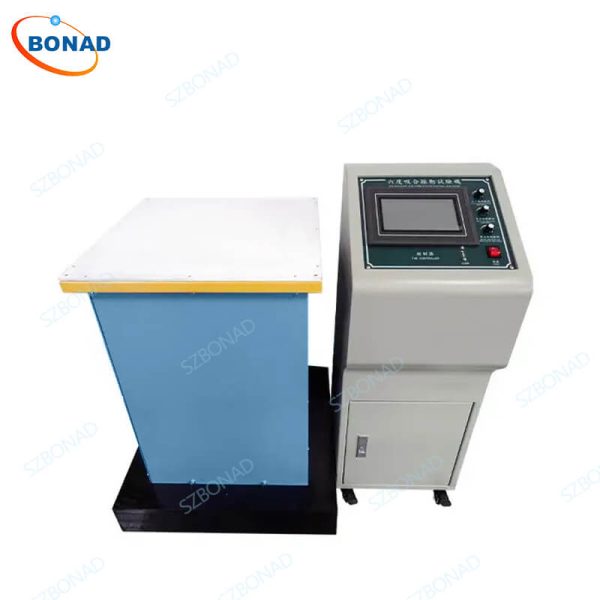

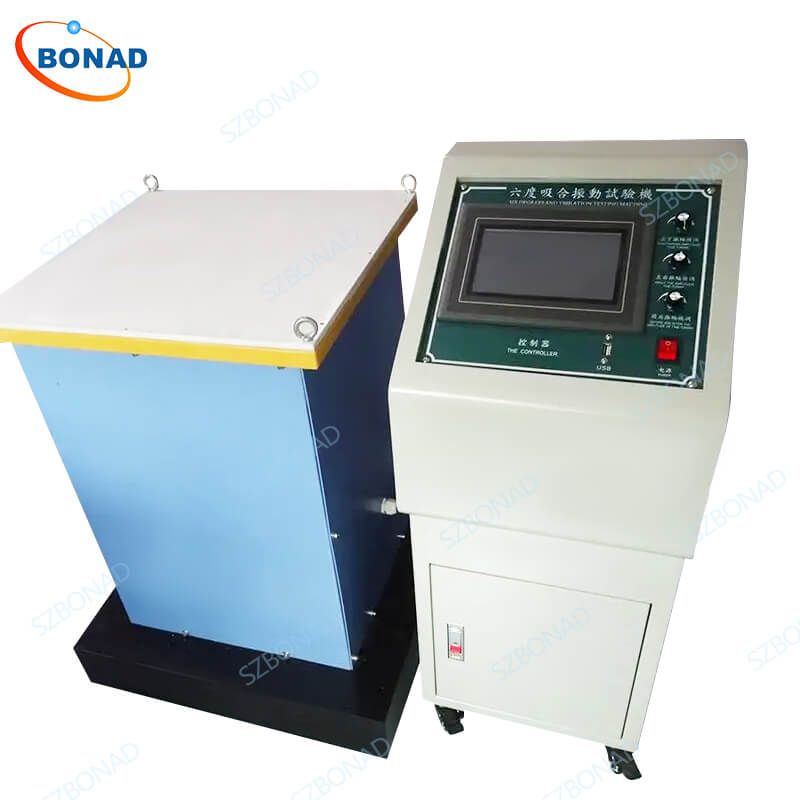

Electromagnetic Six Degrees of Freedom Vibration Table – BONAD High Quality Vibration Table
Standards:
This state-of-the-art vibration table adheres to key international standards, including IEC 61500, ISO 5344, ASTM D3580, and IEC 60068-2-6. These certifications ensure that the equipment meets rigorous quality and performance criteria, making it a reliable choice for diverse testing applications.
Applications:
The Electromagnetic Six Degrees of Freedom Vibration Table is versatile and widely employed across various industries such as defense, aviation, communications, electronics, automotive, and domestic appliances. It plays a crucial role in identifying potential faults, simulating real-world operational conditions, and conducting structural strength inspections. Its comprehensive functions include sine wave generation, frequency modulation, sweep frequency, programmability, frequency doubling, logarithmic scaling, and time-controlled operations, making it an indispensable tool for precise testing and analysis.
Features:
- Six Degrees of Freedom Movement: Enables full spatial motion simulation by supporting forward and backward, lateral, and vertical translations along with rotational movement around the x, y, and z axes.
- High-Frequency Vibration Testing: Equipped with a powerful electromagnetic drive system that facilitates high-frequency vibration tests (ranging from a few Hz to several kHz), catering to a wide spectrum of testing needs.
- Real-Time Control and Monitoring: Incorporates cutting-edge sensors and feedback control systems to monitor motion status in real-time, ensuring accuracy and stability under varied test conditions.
- Customizable Flexibility: Offers extensive customization of test parameters such as amplitude, frequency, and acceleration, providing tailored testing solutions to meet specific requirements.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-SDVT |
| Testing Direction | Vertical + Horizontal Three-Axis Integrated Machine (Up/Down + Left/Right + Front/Back) |
| Maximum Test Weight | 0-60 kg (Custom specifications available) |
| Testing Platform Dimensions | 500×500 mm, 750×750 mm, 1000×1000 mm, 1500×1500 mm (Custom specifications available) |
| Control Method | PLC Touch Screen (Displays curve directly, USB interface for data storage) |
| Frequency Adjustment Range | 1-600 Hz, 1-3000 Hz (Selectable) |
| Amplitude | 0-5 mm (Random) |
| Vibration Waveform | Sine Wave |
| Maximum Acceleration | 10 G |
| Functions | Frequency Sweeping, Fixed Frequency, Programmable, Time Control |
| Octave Function (0.01 Hz) | 8 Segments for Doubling Increments: 1) High to Low Frequency 2) Low to High Frequency 3) Can Loop |
| Logarithmic Function (0.01 Hz) | 1) Low to High Frequency 2) High to Low Frequency 3) Low to High back to Low Frequency – 3 Modes Available/Loopable |
