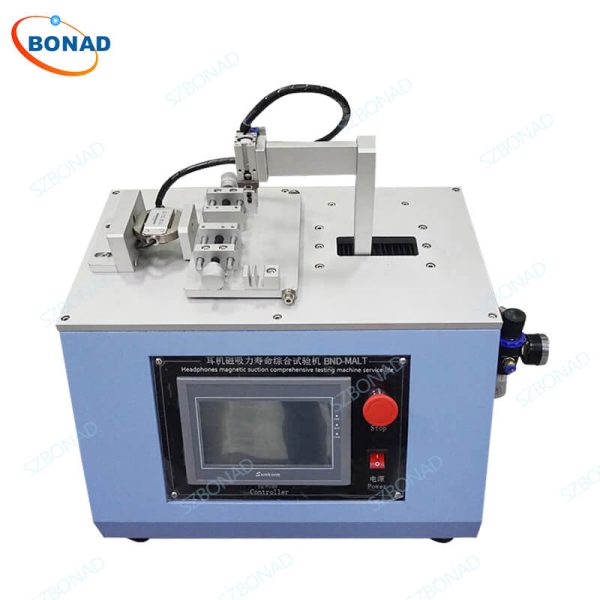

Wireless Earphone Magnetic Attraction Life Test Machine – BONAD High Precision Testing Equipment
Application:
This machine is ideal for assessing the durability of wireless headphones. It performs tests under specified conditions such as height, signal sensing, lifting, and releasing actions. Users can set parameters like stroke, speed, and counting for cyclic actions to thoroughly evaluate product quality.
Features:
- Automatic Testing: Configure test stroke and speed based on product type for automated testing. The equipment halts automatically upon completion.
- Versatile Testing Capabilities: Accommodates different products using various test fixtures.
- High Precision: Achieves displacement display accuracy up to 0.1mm.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-MALT |
| Test Type | Comprehensive testing of force and lifespan |
| Test Stations | 1 group |
| Force Capacity | 0-10 kg |
| Testing Speed Range | 0-20 times/min (settable) |
| Testing Count Range | 1-99,999,999 times (settable) |
| Testing Stroke Range | 0-200 mm (settable) |
| Testing Action | Grip the headphones, lift to height, lower product, release product, count as one time |
| Testing Fixture | Universal fixture designed according to product (covers different structural shapes of TWS headphones in both horizontal and vertical positions) |
| Testing Signal | Customizable according to testing requirements; we can design to monitor product on/off signals |
| Display Method | Touch screen display |
