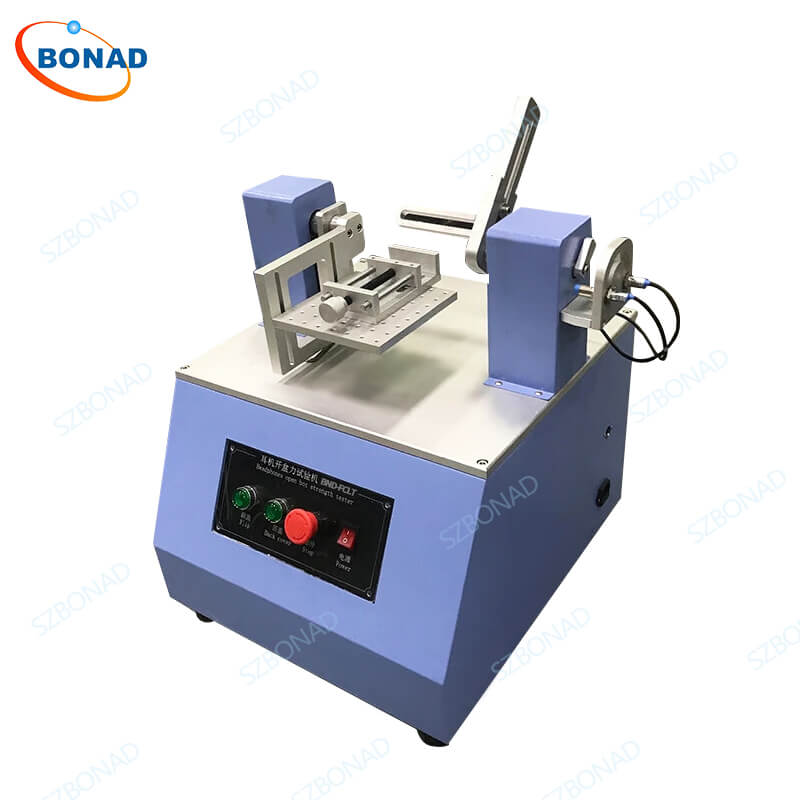

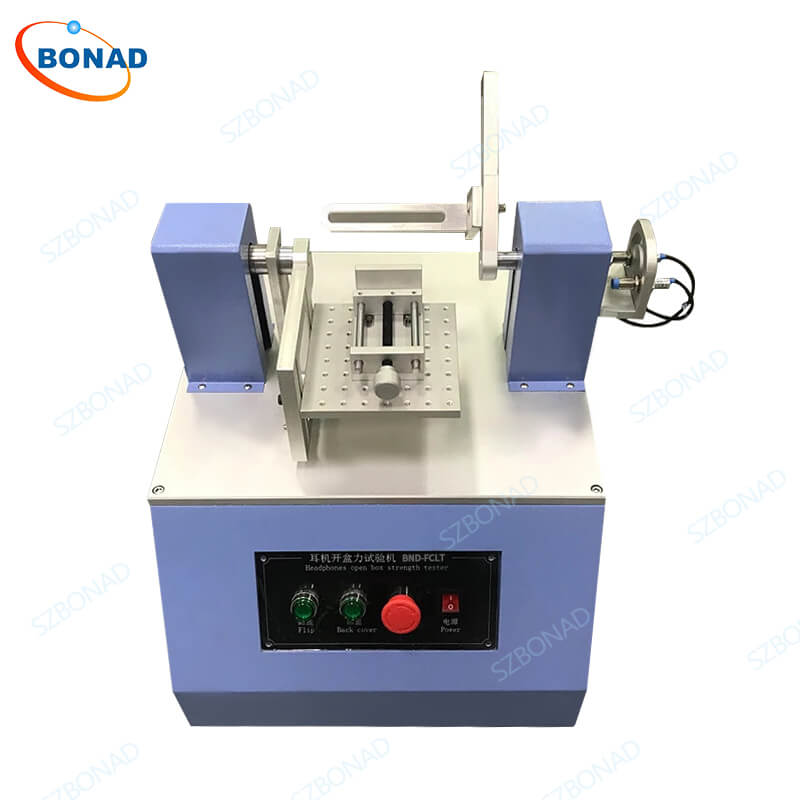

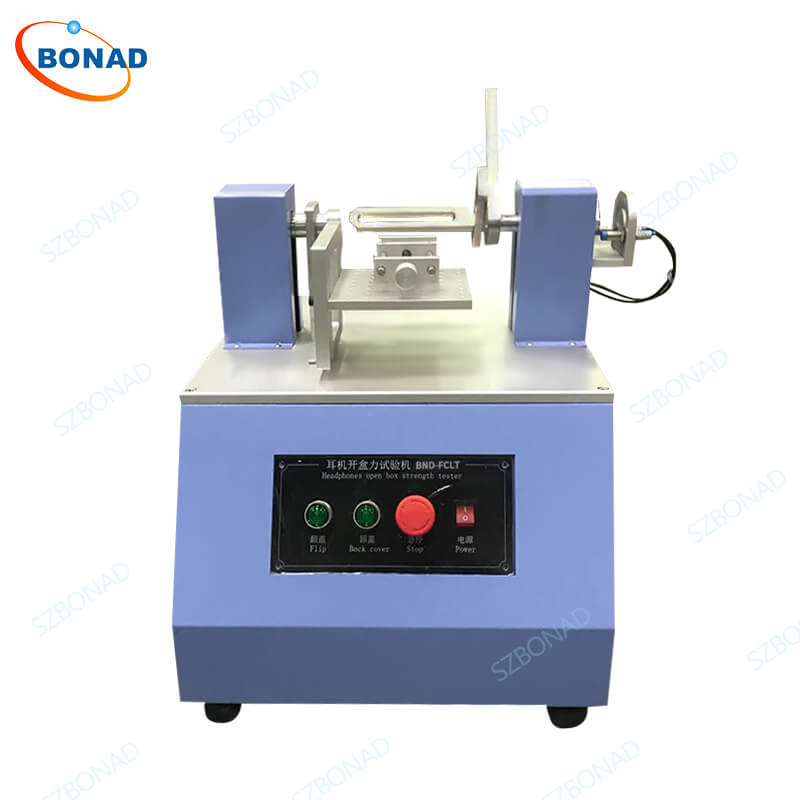

Wireless Earphone Charging Box Flip Cover Life Test Machine – BONAD Durability Test Equipment
Application:
This life test machine is essential for conducting flip cover life tests on electronic products and components. It serves as a vital testing instrument for both finished and semi-finished products, ensuring that they meet high standards of durability before reaching consumers.
Features:
- Stable Structure: The entire machine is coated with electrostatic paint, offering a well-thought-out design that ensures safe and stable operation.
- Data Recording: Equipped with a power-off memory function, it guarantees uninterrupted test processes. All test data and curves are stored efficiently, with capabilities to automatically generate comprehensive test reports and torque life attenuation curves.
- High Customization: The machine’s test size and fixture design can be tailored to meet specific customer requirements, accommodating earphone boxes of different specifications seamlessly.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-FCLT |
| Test Stations | Single group |
| Maximum Testing Torque | 1 N·m (customizable to other specifications) |
| Minimum Display Torque | 0.01 N·m |
| Sample Size | 120 x 100 x 100 mm |
| Product Testing Modes | 2 modes: 1. Free flip cover 2. Press switch to open → Flip cover to angle → Return angle (this step counts as one time) |
| Flip Cover Testing Angle Range | 0-180° (settable) |
| Testing Count Range | 1-99,999,999 times (settable with stop counting function) |
| Speed Range | 5-20 times/min (adjustable) |
| Control Mode | Fully computer software control |
