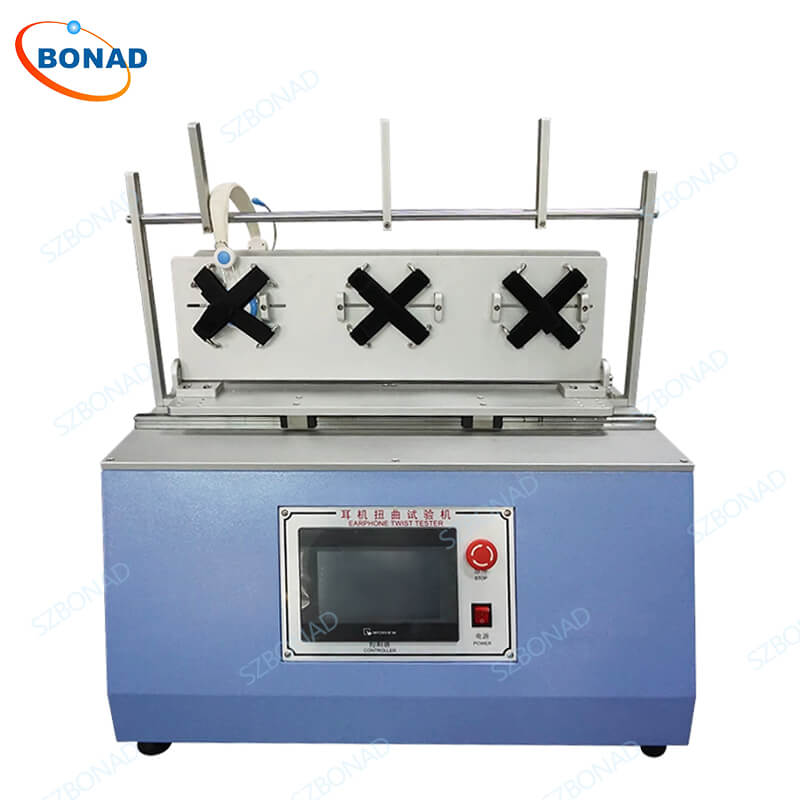

Three-Station Headphone Torsion Life Testing Machine – BONAD Headphone Tester
Application:
The three-station headphone torsion life testing machine is suitable for the torsion life test of headphones. The test method is: after the headphones are fixed by the left and right clamps, they are stretched to a certain distance in opposite directions at the same time, then stretched to the opposite direction and finally returned to the starting position. The test stroke can be set. After the set number of tests, the headphones are removed to detect the head-wearing performance.
Features:
1. The touch control screen is used, combined with Mitsubishi PLC, to achieve precise motion control. Users can easily adjust the action time and test frequency.
2. The machine is driven by a servo motor to ensure high-speed, low-noise operation, providing stability, reliability and lasting performance.
3. The machine can test the distortion of three pairs of headphones at the same time with high efficiency. The distortion range can be adjusted through the touch screen, and the user can set the required digital quantity.
4. The flexible fixing fixture with a strap is adopted, and the fixture can be customized according to the customer’s test requirements.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-HTLT |
| Test Stations | 3 groups (can operate simultaneously) |
| Testing Count Range | 1-99,999,999 times (settable) |
| Testing Stroke Range | 100-300 mm (settable) |
| Testing Speed Range | 10-40 times/min (settable) |
| Fixture Production | Customized according to customer products |
| Control Method | PLC Program Programming |
| Product Fixation | Flexible fixation using strap-type clamps |
