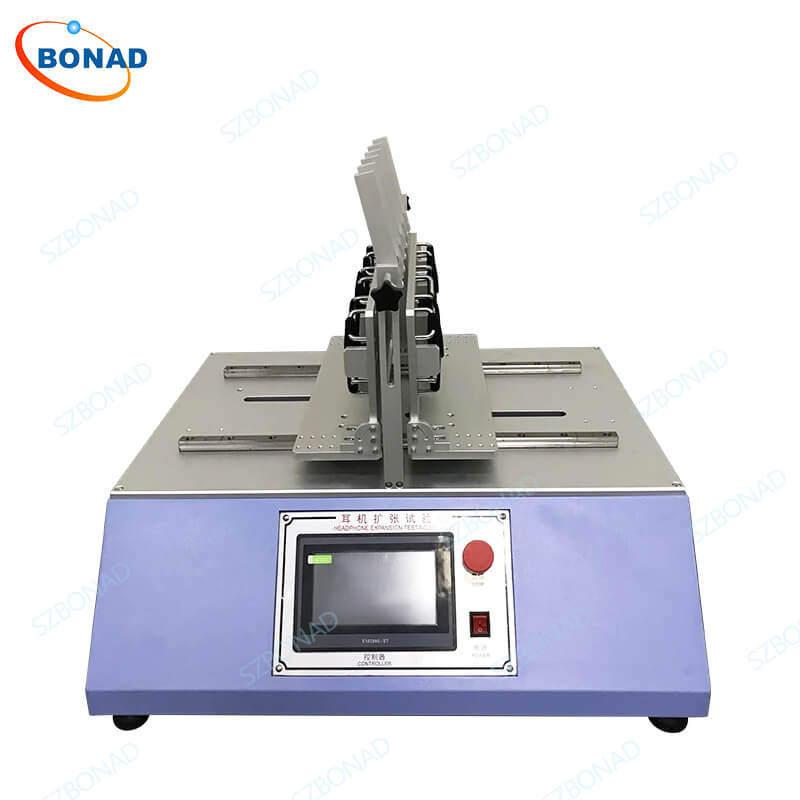

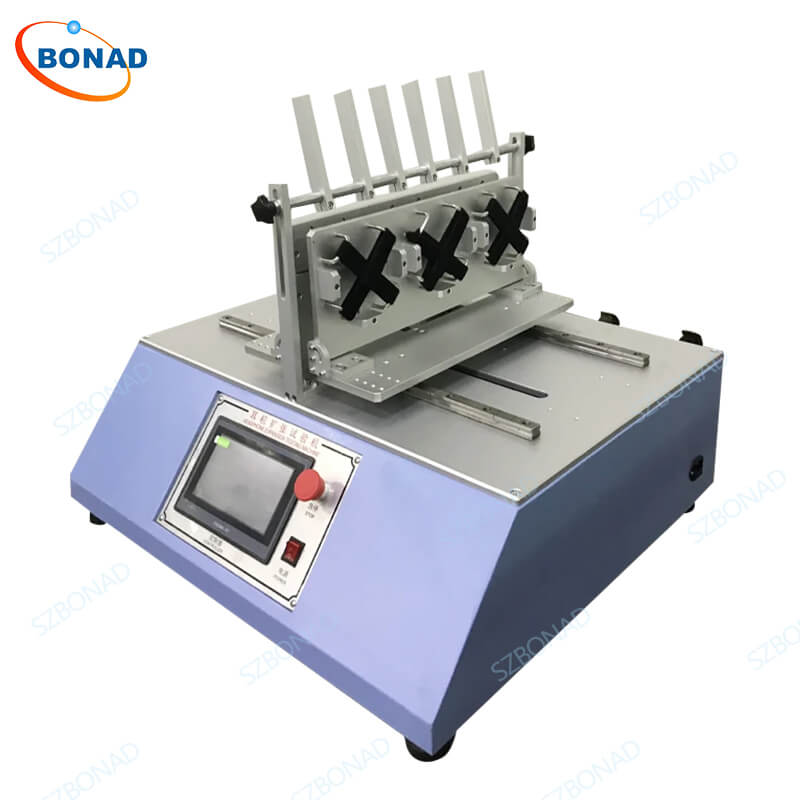

Three-Station Headphone Expansion Life Testing Machine – Round Trip Tension Gripping Force Testing Equipment
Application:
This machine is ideal for conducting expansion life tests on headphones. The testing method involves fixing the headphones with left and right clamps, stretching them to a predetermined distance in both directions, and then returning them to their starting position. The test stroke is adjustable, allowing for tailored testing parameters. After completing a specified number of tests, the headphones are evaluated for headband performance.
Features:
- Precision Power Source: Utilizes a stepper servo motor for precise positioning, stable torque output, and low noise.
- Durable Construction: Incorporates linear guide rails for stable, reliable, and durable performance.
- Advanced Control System: Features a 7-inch true color LCD touch screen and programmable controller for motion positioning control.
- Customizable Testing Parameters: The touch screen allows setting of expansion stroke, test speed, and test cycles.
- Simultaneous Multi-Headphone Testing: Capable of testing three sets of headphones concurrently with an optional force measurement system to collect real-time extension tension data.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-HELT |
| Test Stations | 3 stations (can operate simultaneously) |
| Testing Count Range | 0-99,999,999 times (settable) |
| Testing Stroke Range | 100-300 mm (settable) |
| Testing Speed Range | 10-40 times/min (settable) |
