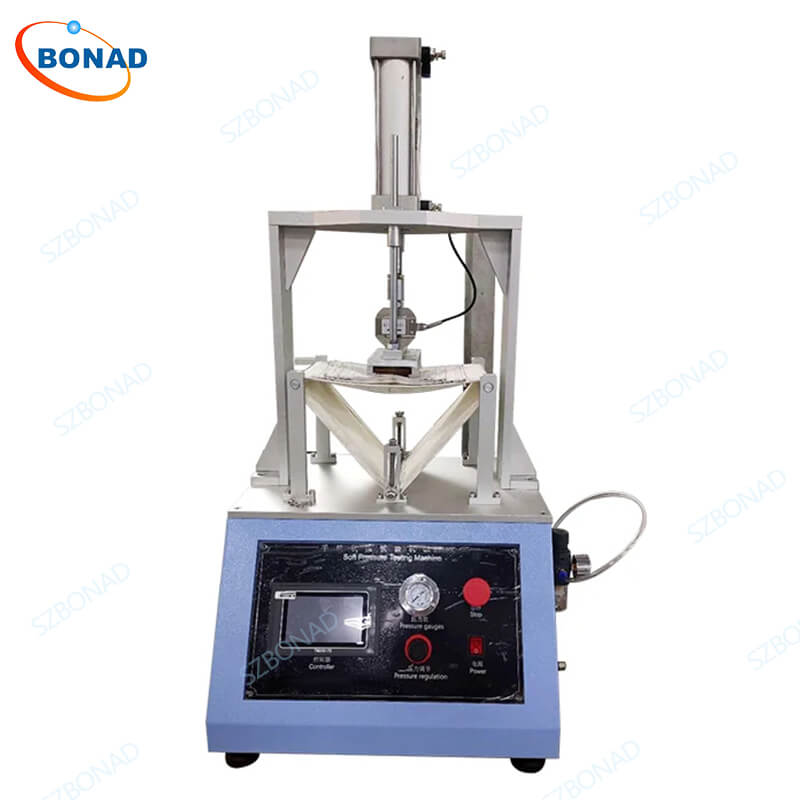

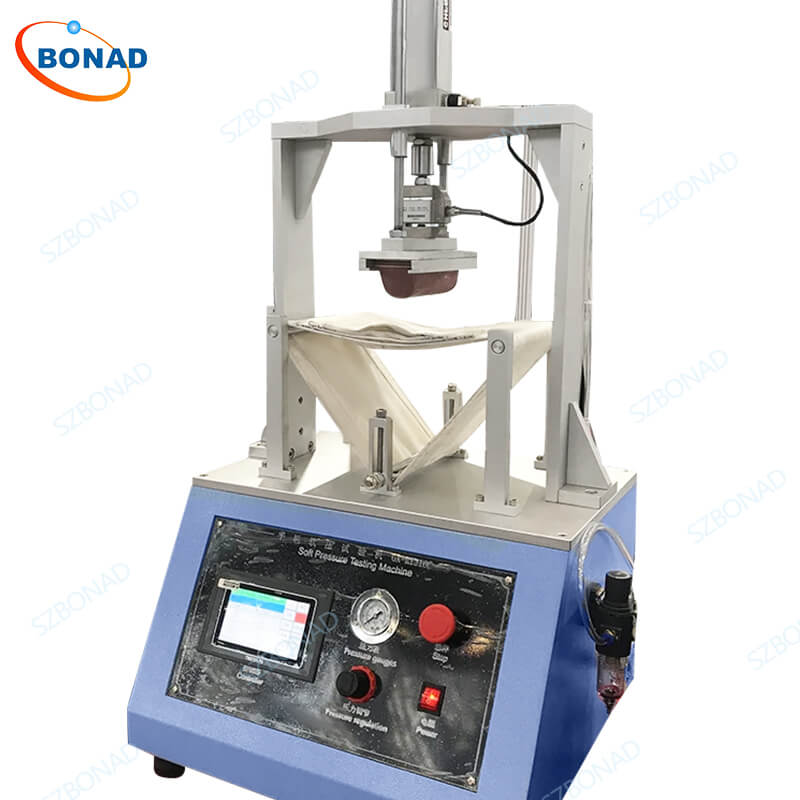

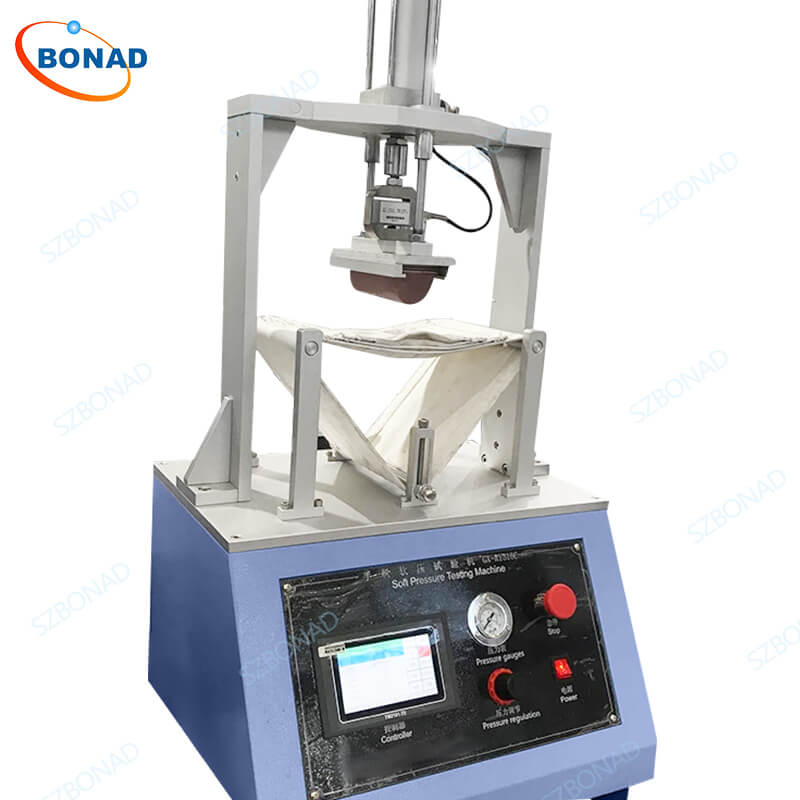

Mobile Phone Soft Pressure Tester – BONAD Mobile Phone Soft Compression Durability Tester
Application:
The mobile phone soft compression tester is versatile and suitable for testing a wide range of devices including mobile phones, remote controls, electronic dictionaries, MP3 players, and more. It is specifically used to assess the compressive performance of structural components like LCD panels and PCBs.
Features:
- High Elasticity and Denim Simulation: The tester uses high elasticity materials and denim to simulate real-world pressure conditions on the product.
- Compliance with Industry Standards: It meets the information industry’s anti-extrusion test requirements.
- High-Quality Pneumatic Components: All pneumatic components are sourced from SMC, and the double-station model features a Mitsubishi LCD touch screen with PLC control for reliable performance.
- Real-Time Pressure Sensing: Optional standard instruments can be integrated to sense extrusion pressure in real-time, allowing for precise test control.
- High-Precision Electric Control: The high-precision model employs all-electric control power to maintain stable force throughout the testing process.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-SCT |
| Adjustable Extrusion Force | 10-120 kg (customizable) |
| Testing Stroke | 150 mm |
| Testing Speed | 10-30 times/min (settable) |
| Count Setting Range | 1-999999 times (settable) |
| Control Method | Pneumatic |
