Laptop Shaft Life Test Machine – BONAD Torque Durability Testing Machine
Application:
The laptop shaft life test machine is suitable for NOTE-BOOK laptops that have been opened many times. After closing the cover, check whether the shaft still has gripping force, otherwise the shaft resistance will increase and may damage the plastic body.
Features:
1. It adopts electrostatic paint treatment, and the table and fixtures are all treated with pure aluminum oxidation. The whole machine is reasonably designed, the structure is firm, and the operation is safe, stable and accurate, which meets the requirements;
2. It adopts touch screen setting interface, PLC as the control system, and can also use computer control, precision motor drive, convenient testing, and more in line with the test requirements;
3. Parameters such as angle, speed, and number can be preset, and the humanized design is more practical.
Technical parameters:
| Equipment model | BND-SLTM01 | BND-SLTM02 |
| Control method | PLC touch screen | Computer controlled |
| Test angle range | 5°-355°(5-180° is also available) | |
| Maximum test product size | 10-19 inches, non-standard customization is available beyond this range | |
| Torque setting range | 0-10NM(0-100kg), adjustable | |
| Speed setting range | 5-30 times/min, adjustable | |
| Test times range | 0-99999999 times, adjustable | |
| Transmission method | Servo motor control | |
| Protective device | Equipped with upper and lower shaft protection and electrical leakage protection | |
| Graph | / | Force curve |
| Power supply | AC 220V 50HZ | |

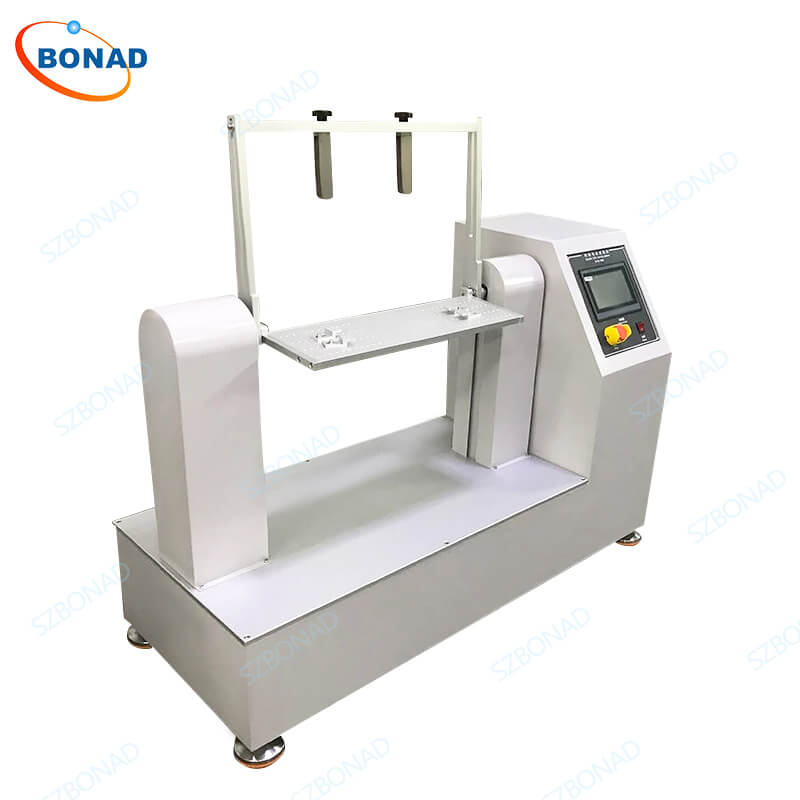

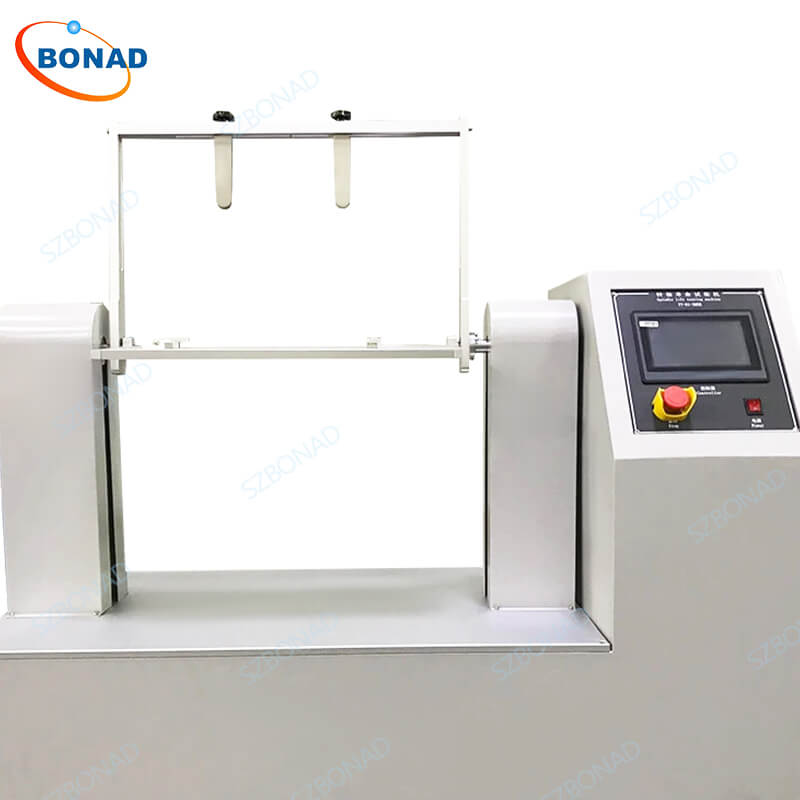

Laptop Shaft Life Test Machine – PLC Touch Screen Model:

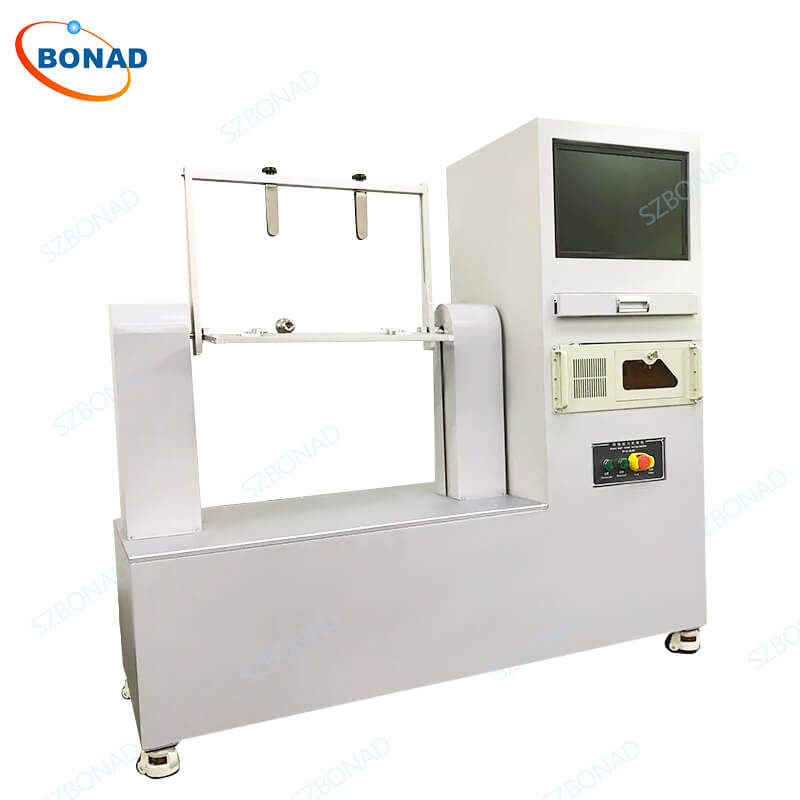

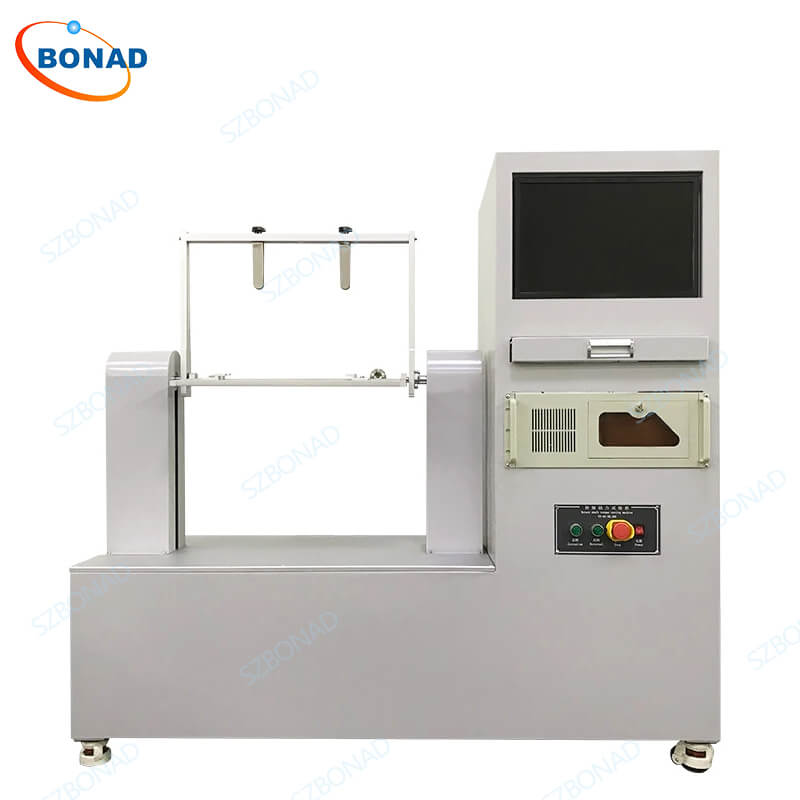

Laptop Shaft Life Test Machine – Computer Controlled Model:
