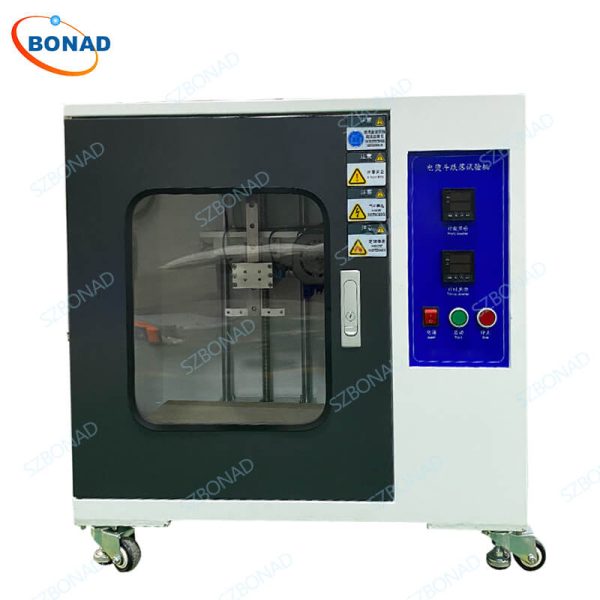

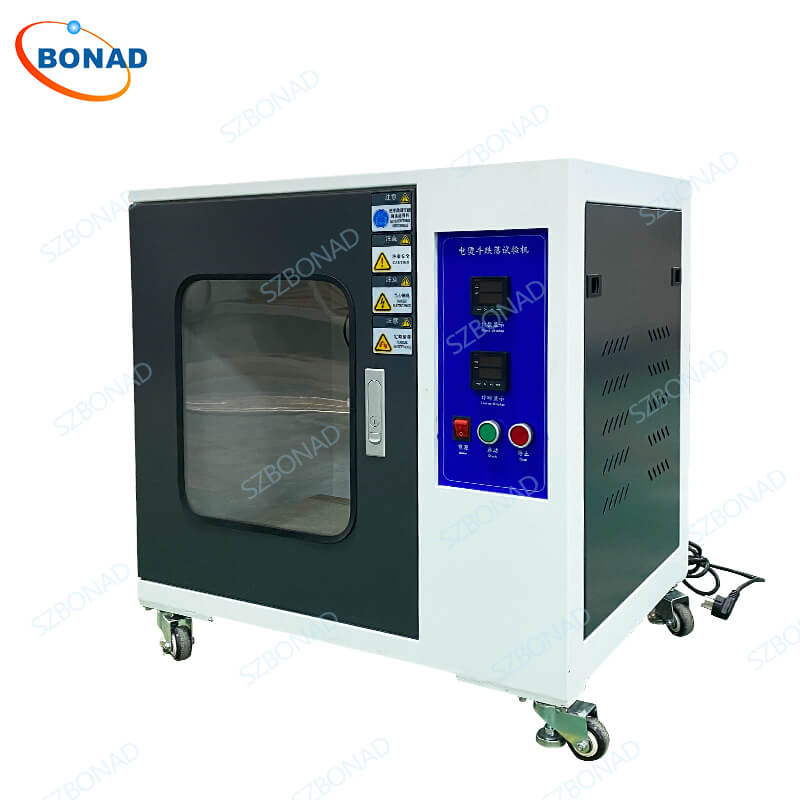

IEC60335-2-3 Electrical Appliance Testing Equipment Electric Irons Mechanical Strength 40mm 1000 Times Drop Test
Application:
The primary function of this Electric Iron Drop Test Apparatus is to test the mechanical strength of electric irons, excluding cordless models, by simulating real-world drop scenarios. Additionally, it evaluates the drop resistance of control devices for electric blankets, ensuring their durability and reliability.
Principle:
The testing procedure involves suspending the electric iron by its handle using a motor-driven cam mechanism. The iron is then dropped from a height of 40mm onto a rigid supporting steel plate with a thickness of at least 15mm and a mass of at least 15kg. This process is repeated 1000 times at a frequency not exceeding 20 drops per minute. During each cycle, the iron remains on the steel plate for approximately 15% of the time, mimicking actual usage conditions.
Standards:
This apparatus complies with the following international standards:
- IEC60335-2-3:2005: Household and similar electrical appliances – Safety – Part 2-3: Particular requirements for electric irons (Clause 21.101).
- IEC60335-2-17:2006: Household and similar electrical appliances – Safety – Part 2-17: Particular requirements for blankets, pads, and similar flexible heating appliances (Clause 21.101).
Main Technical Parameters:
- Equipment Structure: Box structure.
- Equipment Size: Approximately 600×550×1200 mm (W×H×D).
- Equipment Weight: Approximately 80kg.
- Workstation: Single workstation.
- Electrical Control Method: Button control.
- Drive Method: Motor drives the cam mechanism to achieve free fall action.
- Sample Clamping Method: Installed on the drop device through a rope.
- Test Rate: ≤20 rpm.
- Test Number: Adjustable from 0 to 9999 times.
- Drop Height: 40mm, equipped with height positioning block.
- Support Steel Plate: Thickness >15mm, mass >15kg.
- Load: Equipped with a universal socket to provide AC power.
- Mainly for Samples: Electric iron, electric blanket control device.
