IEC 60884-1 Multi-Station Power Supply Load Cabinet – BONAD Electrical Testing Equipment
Standards Compliance
This advanced load cabinet adheres to international standards, ensuring reliability and safety:
- IEC 60884-1: International standard for plugs and socket-outlets for household and similar purposes.
- UL 1054: Standard for special-use switches.
Key Features
The Multi-Station Power Supply Load Cabinet boasts a robust cabinet structure crafted from iron plate pressing and spraying techniques. It is equipped with four wheels for enhanced mobility. The upper front section features a durable control panel made from aluminum plate using etching and sandblasting coloring processes. Key components include:
- Instrument power switches
- Intelligent digital display voltmeters, ammeters, power meters, power factor meters
- Power-on counters
- Current output and stop buttons
- Alarm systems
Inside the cabinet, there is a series of sophisticated components, such as inductor-resistor combinations, strong air cooling mechanisms, voltage regulation systems, high-power reactors, various electrical control components, control circuit boards, and output terminals.
Technical parameters:
| Item | Specification |
|---|---|
| Load Current | 0 ~ 30 A (or customized according to customer requirements), continuously adjustable, digital display |
| Station Selection | 1 station, 2 stations, or 3 stations (customizable according to customer requirements) |
| Gear Setting | Resistive, inductive, capacitive (customizable according to customer requirements) |
| Contactor | Schneider Contactor |
| Relay | Omron Intermediate Relay |
| Load Voltage | 5 ~ 300 V, continuously adjustable, digital display |
| Power Factor | 0.3 ~ 0.999, continuously adjustable, digital display |
| On/Off Cycle Counter Range | 1 ~ 999999 (presettable) |
| Rated Input Voltage | Single phase: 220 V |
| Rated Output Power | 9 KW |
| Power Factor | PF = 1 |
| Load Accuracy | ±5% |
| Explicit Mode | Real-time LED display of voltage, current, power, power factor (optional) |
| Working Power Supply | Single-phase AC 220 V / 50 Hz |
| Control Method | Manual control via panel, manually adjustable |
| Insulation Class | F-Class |
| Protection Level | IP20 (suitable for indoor use) |
| Fan Noise | 65 decibels |
| Cooling Method | Forced air cooling: side air inlet, top air outlet |
| Working Mode | Can work continuously |
| Protection Function | Over-temperature alarm, over-temperature protection, buzzer prompt, over-current protection, etc. |
| External Dimensions | Host: Width 570 mm * Depth 500 mm * Height 1650 mm |
| Applicable Ambient Temperature | -10℃ to +50℃ |
| Moving Method | Heavy-duty universal casters, 2 front and rear respectively |
| Applicable Relative Humidity | ≤95% |
| Altitude | ≤2500 meters |
| Power Supply | AC 220 V / 50 Hz |

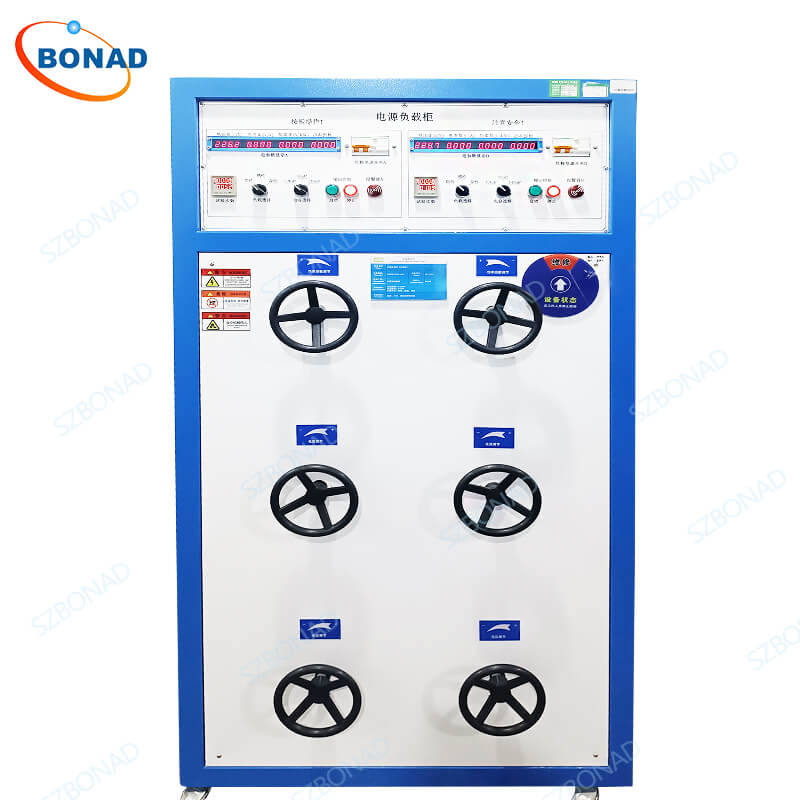

IEC 60884-1 Multi-Station Power Supply Load Cabinet – Two-Station Model:

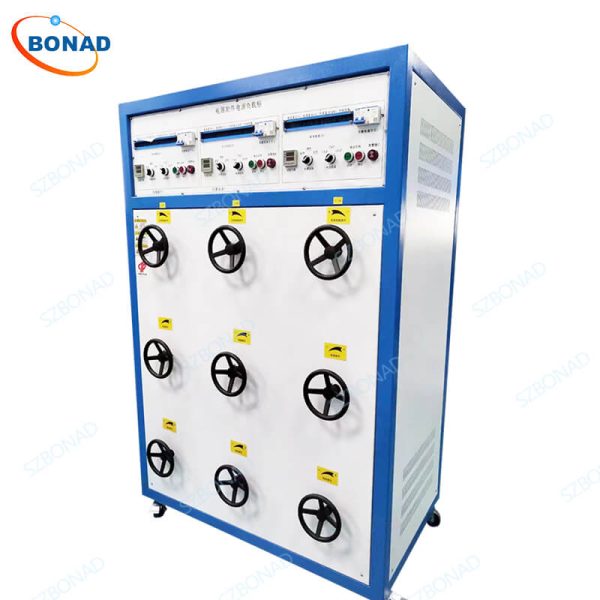

IEC 60884-1 Multi-Station Power Supply Load Cabinet – Three-Station Model:
