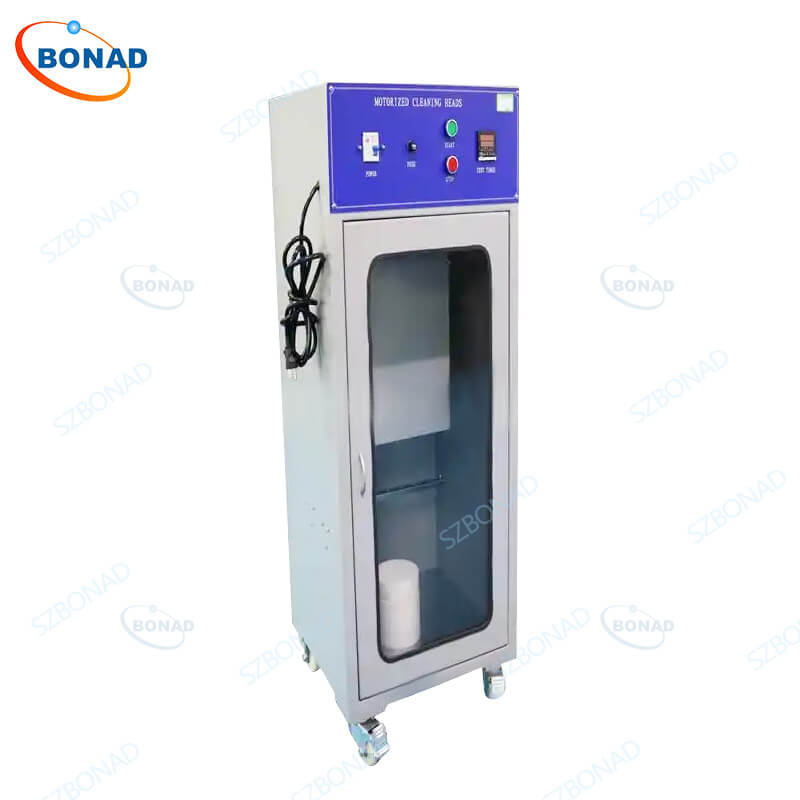

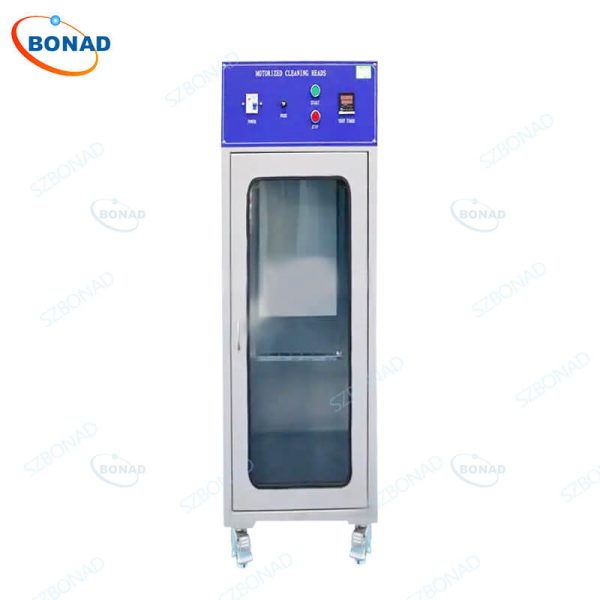

IEC 60335 Vacuum Cleaner Motorized Cleaning Head Drop Test Apparatus – BONAD Electrical Appliance Testing Equipment
Standard Compliance
The apparatus adheres to the following standards:
- IEC 60335-2-3: Safety of Household and Similar Electrical Appliances Part 2-3 Article 21.101, which outlines special requirements for Electric ions.
- IEC 60335-2-2: Safety of Household and Similar Electrical Appliances Part 2-3 Article 15.101, detailing special requirements for vacuum cleaners and water-absorbing cleaning appliances.
Purpose
The primary purpose of this apparatus is to test the mechanical strength of the motorized cleaning head used in water-absorbing cleaning appliances.
Test Sample
Motorized cleaning heads of water-suction cleaning appliances.
Drop Test Procedure
Suspend the power cleaning head of the water-absorbing cleaning appliance and make it horizontal with the bottom plate, and drop the sample from a height of 100mm onto a rigid supporting steel plate with a thickness of at least 15mm and a mass of at least 15kg. The test is carried out 4000 times at a frequency of no more than 20 times per minute. The power cleaning head of the water-absorbing cleaning appliance is dropped 1000 times on the left, right, front and cleaning surface respectively.
Technical parameters
| Feature | Description |
|---|---|
| Drive Method | Motor-driven, drop action via cam mechanism |
| Test Count | 1 to 9999, digital display, presettable |
| Working Speed | ≤ 20 RPM |
| Drop Height | 100 mm |
| Drop Surfaces | Left, right, front, and clean surface; 1000 drops each |
| Supporting Steel Plate | Thickness > 15 mm, weight > 15 kg |
| Equipment Dimensions | Approximately 600 * 600 * 1250 mm |
| Weight | Approximately 120 kg |
| Voltage | AC 220V, 50Hz |
