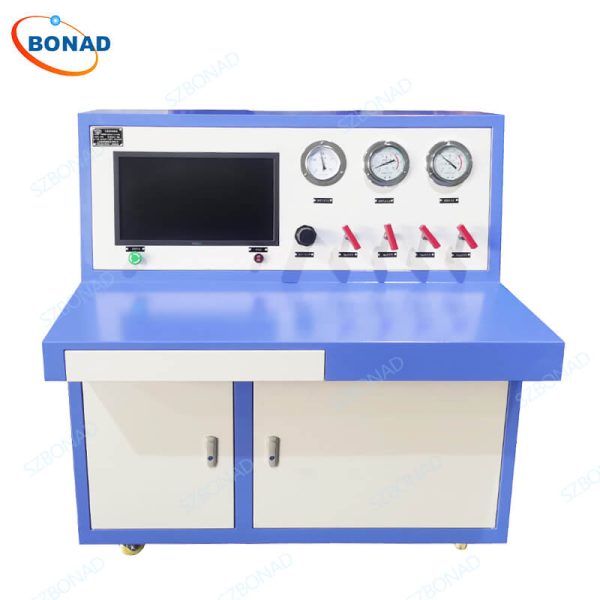

Hydraulic Pressure Testing System for Electrical Appliance Water Pressure Test
Functional Features:
- Non-Welding Pipeline System: The pipeline system adopts a non-welding connection for enhanced durability.
- Separated Fluid Systems: The test fluid system and the drive fluid system are separated to facilitate temperature control and medium diversification.
- Advanced Software Control: The software is developed using force control configuration software or LABVIEW for comprehensive computer control.
- Versatile Supporting Tools: A variety of supporting tools are available to meet different installation methods of test pieces.
- Automatic Pressure Compensation: During the test, the system can automatically perform pressure compensation; it rapidly drops pressure after rupture, stopping pressurization automatically.
- Protective Tools: Specially designed protective tools ensure operator safety and prevent equipment damage from explosions.
Main Technical Parameters:
| Feature | Description |
|---|---|
| Required Gas Source | 0.2-0.8MPa, 1.0Nm³/min (provided by the customer) |
| High Pressure Range | 0.2-64Mpa |
| Pressure Increase Rate | Proportional controllable, adjustable range of 0.1-1MPa/S |
| Measurement Accuracy | ±0.5%FS |
| Pressure Holding Time | Arbitrarily set with seconds as the timing unit |
| Data Acquisition | American NI high-speed acquisition card with an acquisition rate of 100,000 times/S |
| Peak Value Recording | Labview software recording |
| Test Station | 1 station |
| Exhaust System | Semi-automatic |
| Test Medium | Clean water |
| Working Temperature Range | 0-80℃ |
| Output Interface | RC1/4 internal thread |
| Control Box Size | 1200 x 700 x 1300 mm |
| Control System | Computer automatic control |
| Computer Specifications | Dell computer with embedded industrial display |
| Control Software | Labview software |
| Test Report Format | Microsoft Office |
Hydraulic Instrument Size:
The overall dimensions of the hydraulic equipment are 1200mm in length, 800mm in width, and 1300mm in height. Constructed from 2mm thick carbon steel with a blue spray finish, the box body features 60F universal Fuma wheels for balance adjustment and easy movement.
Customization options are available to meet specific test requirements.
