IEC 60335-1 Oxygen Bomb Air Bomb Aging Test Chamber For Household Appliances
Application
The oxygen bomb aging tester is designed for aging tests of wires, rubber (plastic, artificial leather) insulation layers, sheaths, and other polymer materials in oxygen and compressed air media under specified pressure and temperature conditions.
Main Technical Parameters
| Item | Specification |
|---|---|
| Control Mode | Button + Instrument |
| Test Station | Single or multiple stations |
| Frame Structure | Steel spray steel outer box with a cylindrical stainless steel test barrel inside; high temperature resistant and explosion-proof |
| Maximum Working Pressure | 2.5MPa |
| Safety Pressure | 2.7~3MPa |
| Pressure Gauge | Range 0~4MPa; minimum scale: 0.02 MPa |
| Temperature Range | Room temperature to 200°C |
| Effective Volume | N4000cm³ |
| Temperature Fluctuation | ±0.5°C |
| Equipment Power Supply | AC220V 50Hz |
Equipment Structure
- The test device consists of a stainless steel tank container and an electrical control cabinet.

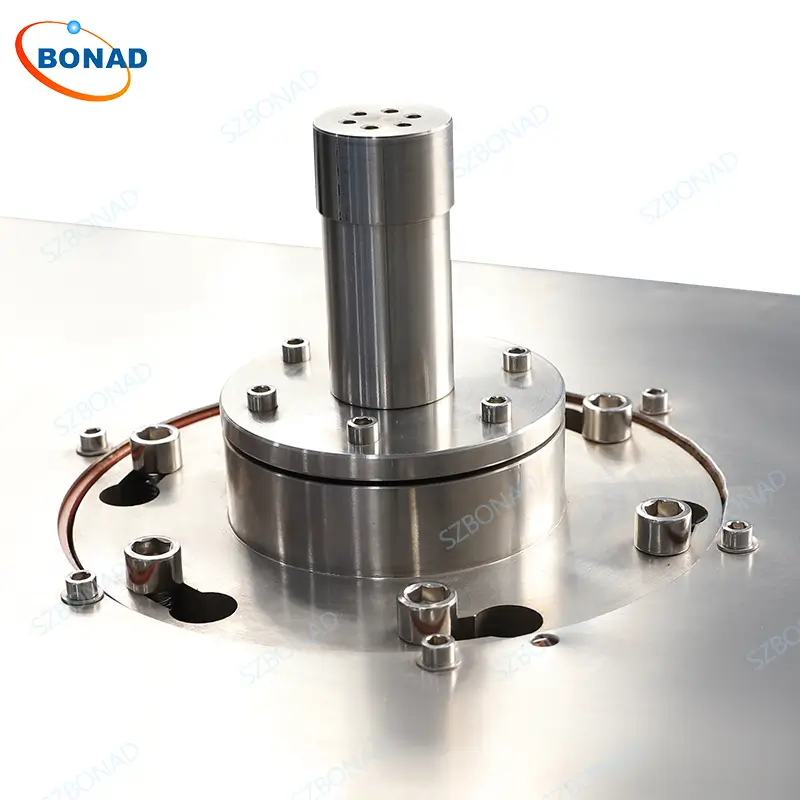

- The tank body includes an outer box, insulation layer, heater, temperature-resistant aluminum cover, stainless steel pressure tank, sample tray, and an overpressure automatic protection device.
- The electrical control cabinet is mainly composed of an outer cabinet, distribution box, and gas distribution chassis.
Notes:
- When adding oxygen, ensure there are no leaks and check that the temperature is normal.
- There should be no open flames on site.
- Regular maintenance and rust prevention are crucial.
