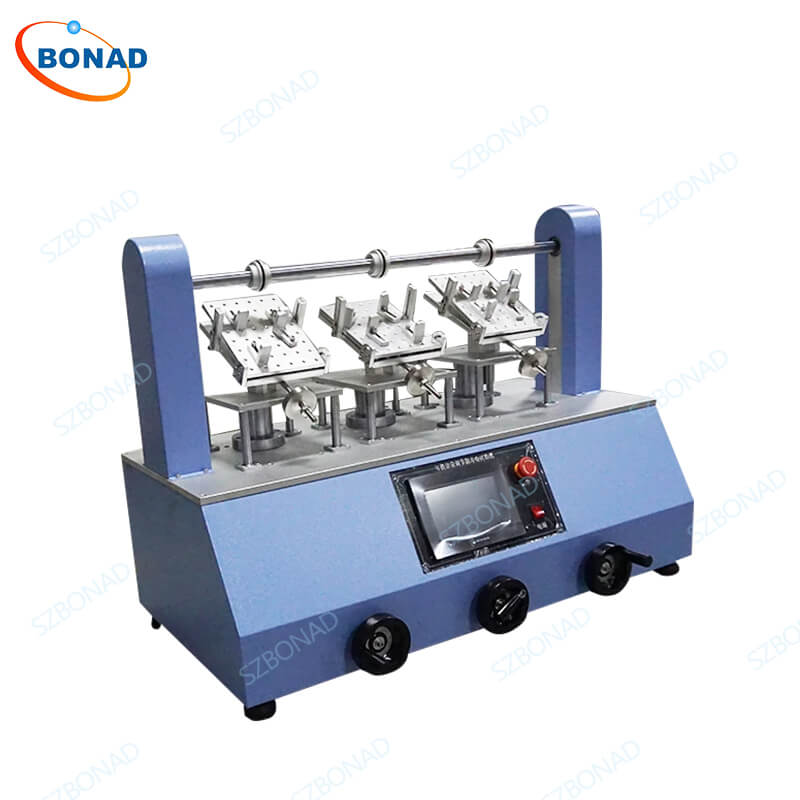

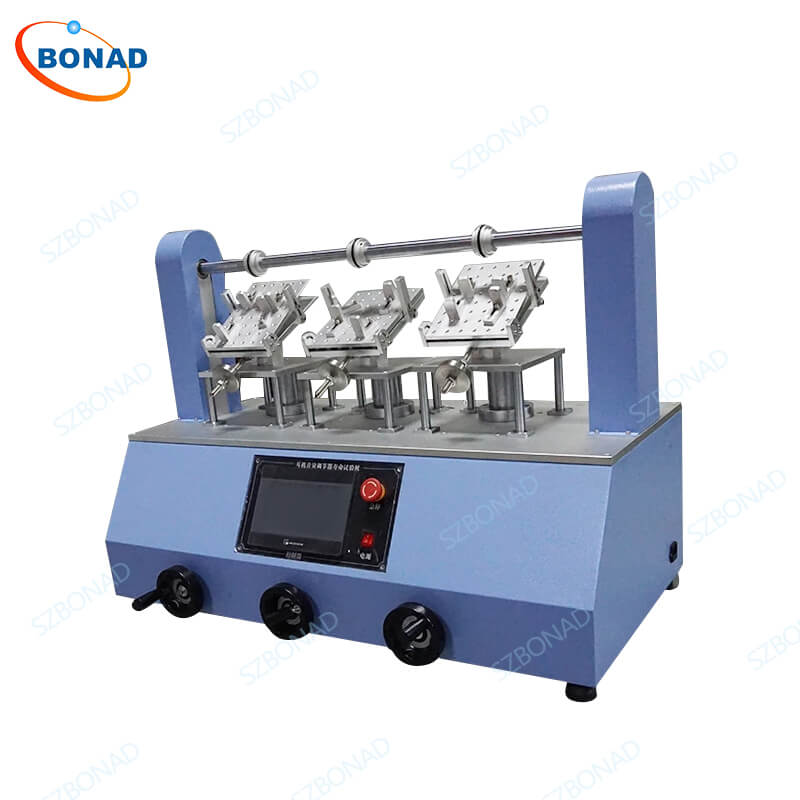

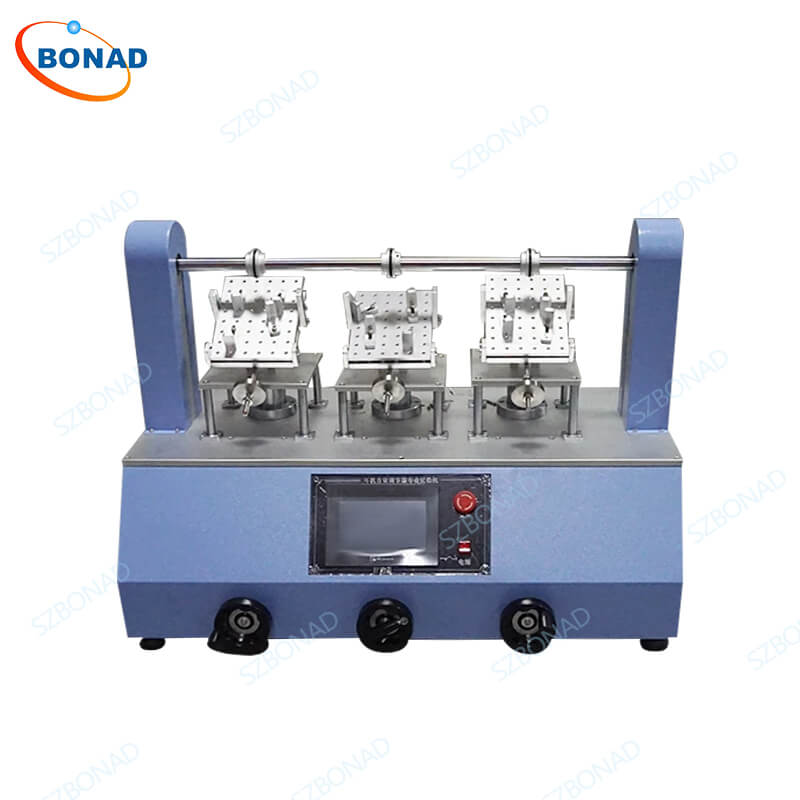

Headphone Volume Regulator Life Test Machine – BONAD Headphone Durability Test Equipment
Application:
The headphone volume regulator life test machine is fully designed with servo motor, PLC software programming and lever load principle. It performs certain life tests under the specified life, number and load conditions to verify the quality of the parts required for the product and improve the reliability of the product.
Features:
1. Three-station design: It has three stations that can run simultaneously, which improves the test efficiency and is suitable for mass production environments.
2. Counting function can be set: The counting range is 0-999999 times, which can be set by users according to their needs; after reaching the set count, the device will automatically stop to protect the equipment and test items.
3. Single counting function: It has a single counting function of 360-degree rotation, which can accurately record the count of each rotation action.
4. Multiple rotation modes: Supports forward, reverse and forward and reverse rotation, which can be selected at will, increasing the flexibility and adaptability of the test.
5. Flexible material structure: The soft silicone rubber coating design is adopted to effectively prevent damage to the tested components and extend the service life.
6. Universal fixture design: Universal round, flat and flat fixtures are designed, which are suitable for tested products of different shapes, increasing the adaptability of the equipment.
7. Sound and light alarm prompt: Set the sound and light alarm, and when the set number is reached, a prompt will be issued to remind the staff to perform the corresponding operation, improving work efficiency and safety.
8. Advanced control system: Equipped with PLC software touch screen, the user-friendly interface facilitates operation and monitoring of the test process, and improves user experience.
9. Adjustment weight function: The thrust gauge adjustment weight is provided to facilitate users to adjust the force according to their needs to adapt to different test requirements.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-VRLT |
| Testing Stations | 3 stations (operating simultaneously) |
| Test Count Range | Adjustable from 0-999,999 with automatic shutdown and alarm features upon reaching set count |
| Rotational Count | Adjustable from 0-999,999, with single count feature for 360-degree product rotation |
| Detection Modes | Three modes: forward, reverse, and both (selectable) |
| Friction Wheel | Made of soft silicone rubber |
| Fixture | Versatile universal clamps for round, flat, and rectangular shapes |
| Alarm Feature | Audible and visual alarm to notify operators upon reaching a specified count |
| Control System | PLC software with touchscreen interface |
| Force Calibration | Equipped with a thrust gauge for weight adjustment |
