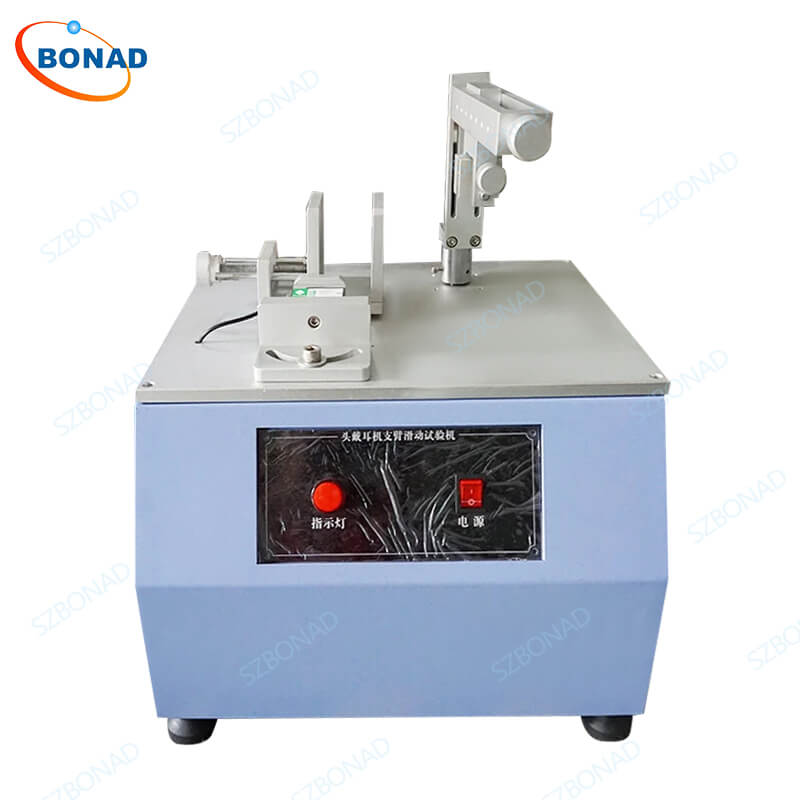

Headphone Arm Sliding Test Machine – BONAD Headphone Arm Fatigue Testing Machine
Application:
This machine is essential for assessing the pull-out and retraction life as well as the force-displacement curve of headphone slide rails. It verifies both the telescopic force and the service life of the support arm, making it a crucial tool for quality assurance in headphone manufacturing.
Features:
- Advanced Control System: The Headphone Arm Sliding Test Machine utilizes a sophisticated computer software system combined with PLC for precise motion control. Users can easily set parameters such as angle, test speed, and number of tests to customize their testing procedures.
- Durable Construction: Driven by a robust servo motor, this machine offers reliable performance and longevity, ensuring consistent results over extended periods of use.
- Adjustable Fixtures: The machine’s fixtures are highly adjustable, allowing for versatile testing without requiring headphones to be present. This adaptability broadens its applicability across various testing scenarios.
Technical parameters:
| Item | Specification |
|---|---|
| Equipment Model | BND-ASTM |
| Testing Capacity | 0-10 kg |
| Displacement Resolution | 0.001 mm |
| Testing Stroke Range | 0-100 mm (settable) |
| Testing Speed Range | 0.01-500 mm/min (settable) |
| Testing Count Range | 1-99,999,999 times (settable) |
| Fixture Production | Customized according to customer products |
| Control Method | Computer software |
