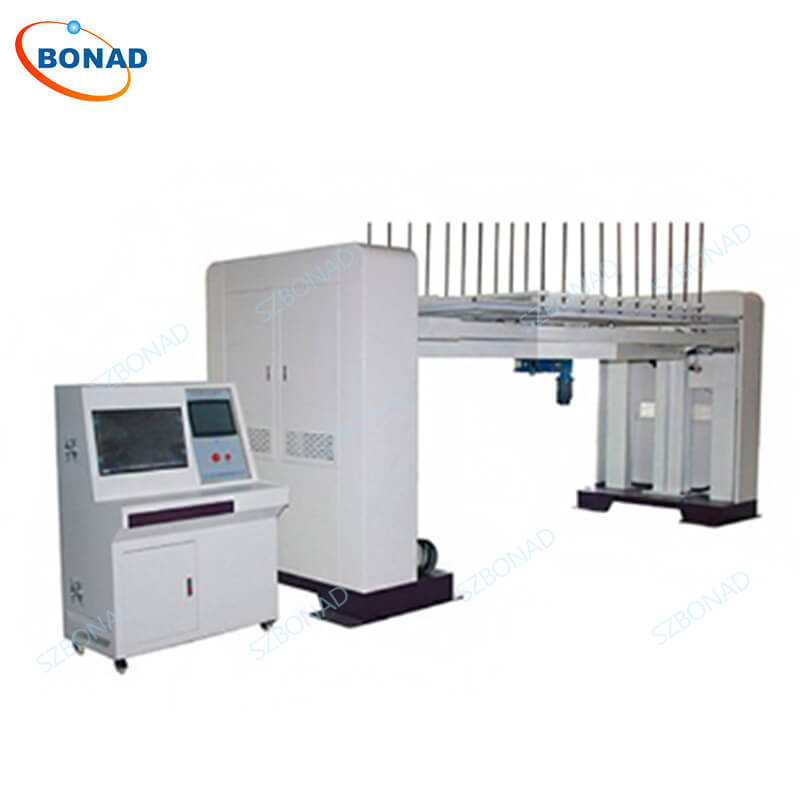

UL 2580 Battery Pack Rollover Tester – Power Battery Safety Test
The battery safety performance is tested through the flip test, and the equipment tests the data in real time. After the test, the battery is required not to catch fire, explode, or smoke, and the connection is reliable and the structure is intact. The insulation resistance value after the test is not less than 100Ω/V. This equipment is a special testing instrument for power battery pack or system safety test.
Test requirements:
- The test object is a battery pack or system;
- The test object rotates 360° around the X axis at a speed of 6%s, then rotates in 90° increments, keeps for 1h every 90° increment, stops after 360° rotation, and observes for 2h;
- The test object rotates 360° around the V axis at a speed of 6°/s, then rotates in 90° increments, keeps for 1h every 90° increment, stops after 360° rotation, and observes for 2h;
- Requirements: The battery pack or system has no leakage, shell rupture, fire or explosion, and maintains reliable connection and intact structure. The insulation resistance value after the test is not less than 100Ω/v.
Main features of battery pack flip tester:
- High-precision measurement: The battery pack flip tester adopts high-precision measuring instruments and advanced testing technology, which can accurately measure the deformation, stress distribution and other parameters of the battery pack during the flipping process, ensuring the accuracy and reliability of the test results.
- Strong controllability: The device adopts a computer control system, which can safely control the flipping speed, angle and other parameters to ensure the controllability and repeatability of the test process.
- High safety: The battery pack flip tester has perfect ** protection measures, which can effectively prevent possible dangerous situations during the test process and ensure the ** reliability of the test process.
- Wide range of application: The device is suitable for various types of battery pack flip tests, with high versatility and flexibility.
Technical parameters:
| Rotation Angle | 360°(Adjustable) |
| Rotation speed | 1°/S—–15°/S adjustable |
| Direction of rotation | X-axis, Y-axis, automatic conversion |
| Control method | PLC+Touch screen control |
| Flap size | W1000 x D1000 x H100mm |
| Test Space | W1000 x D1000 x H1000mm |
| Dimensions | About W1800*D1800*H1800mm |
| Maximum test weight | 100KG |
| How it works | The entire test is completed automatically according to the program, and the rotation of the X, Y, axis is automatically switched; |
| Rotating table | The rotating table can realize automatic switching of X-axis and Y-axis rotation; |
| Monitoring system | Optional video surveillance |
| Safety protection | Close range operator safety protection system |
| Status display | Working status display system information |
| Drive mode | Servo motor drive |
| Keep Time | 0～99 hours 99 minutes 99 seconds can be set arbitrarily |
| Product Fixing | The table top contains 10cmx10cm or 20cmx20cm matrix positioning holes. |
| Used to fix the test sample and contains installation accessories (such as bolts and straps, etc.) that match the fixing holes. | |
| Equipment power supply | AC 220V±10% 50HZ |
| Equipment power | 2.0KW |
| Machine weight | About 500KG |
